| Width |
60 |
| Height |
34 |
| Length |
152 |
| Rated voltage |
32 |
| Housing colour |
Other |
| Housing material |
Plastic |
| Pollution degree |
3 |
| Operating voltage |
10 - 30 |
| Max. total current |
25 |
| With LED indication |
yes |
| Material contact body |
Brass |
| Operating temperature |
-25 - 80 |
| Diameter contact female |
- |
| Material insulation body |
Polyamide (PA) |
| Degree of protection (IP) |
IP68 |
| With potential separation |
yes |
| Connection for NPN-sensors |
no |
| Material of contact surface |
Gold |
| Number of sensor-/actuator-slots |
8 |

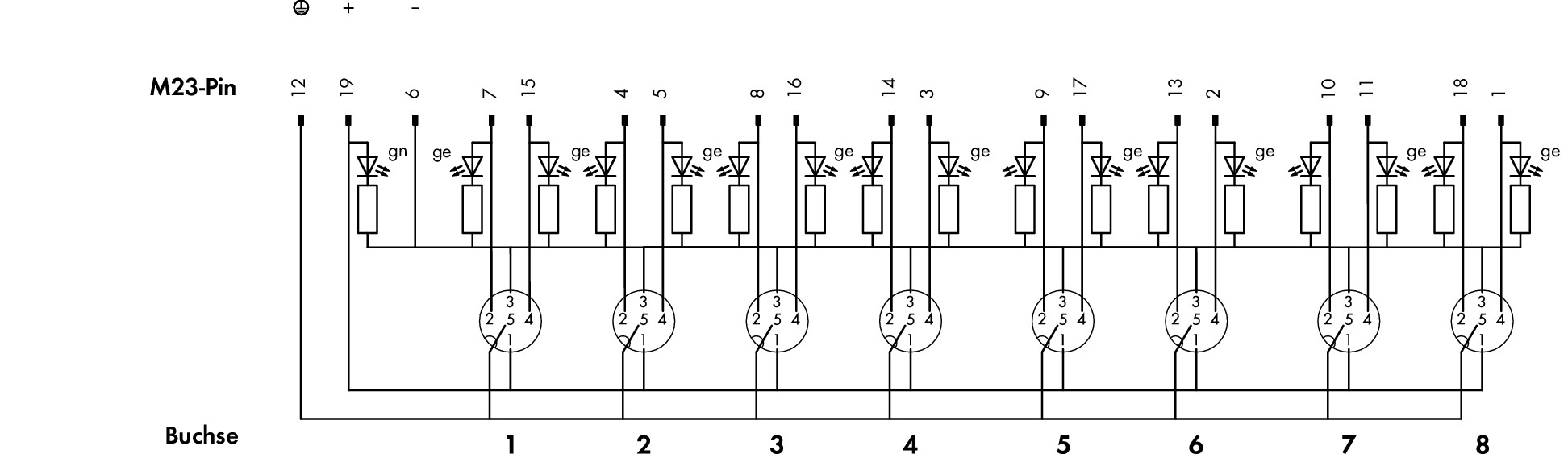

| Type of connector for trunk line |
M23 vertical |
| Explosion safety category for gas |
None |
| Explosion safety category for dust |
None |
| Connectable conductor cross section |
|
| Cable outer diameter for cable gland |
|
| Thread sleeves sensor/actuator slots |
M12 |
| Number of channels per connector slot |
8 |
| Number of poles sensor/actuator slots |
5 |
| Max. current carrying capacity per socket |
9 |
| Type of branches for sensor-/actuator cables |
M12 |
| Max. current carrying capacity per I/O signal |
2 |
| Fix cable version suitable for cable guide chain |
no |
