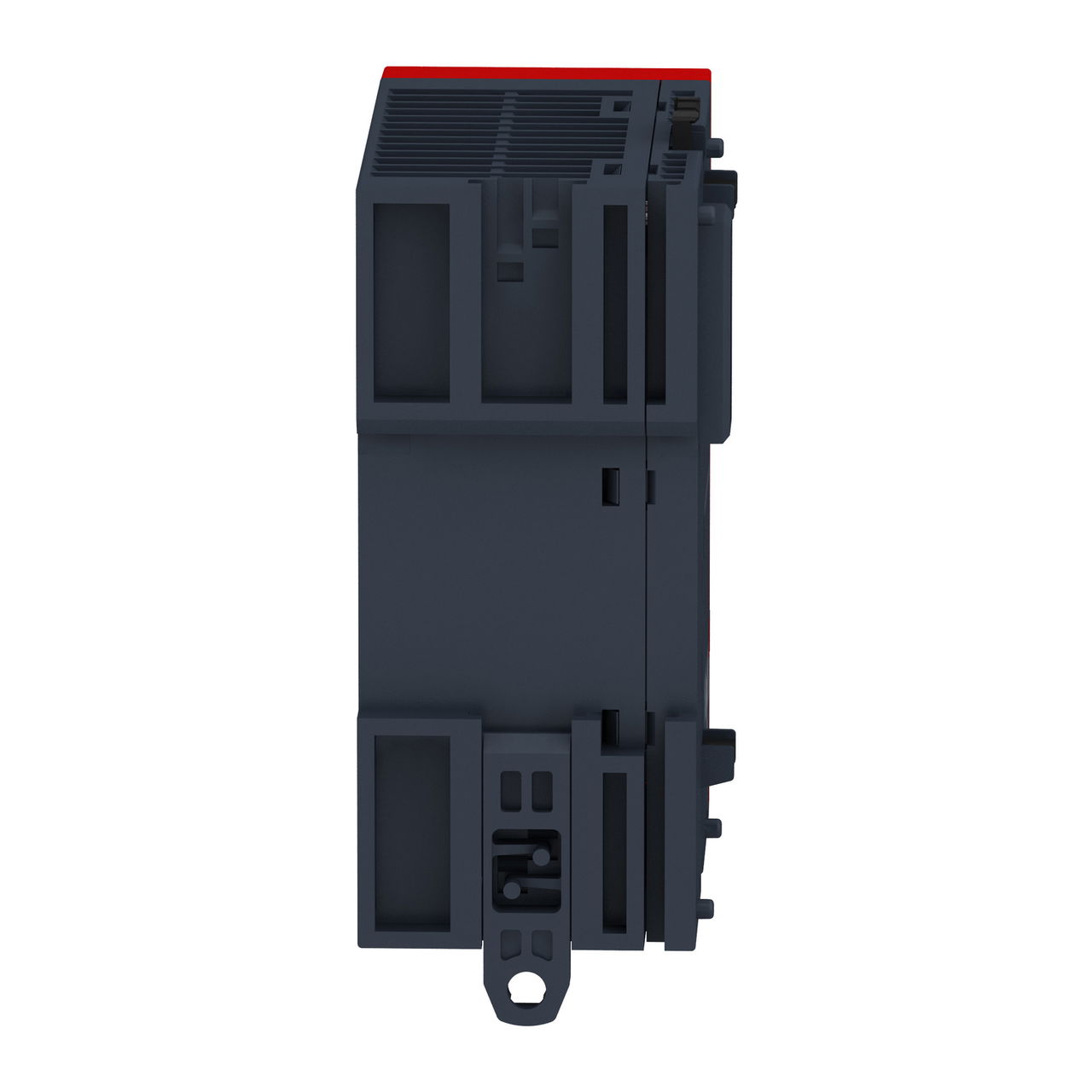

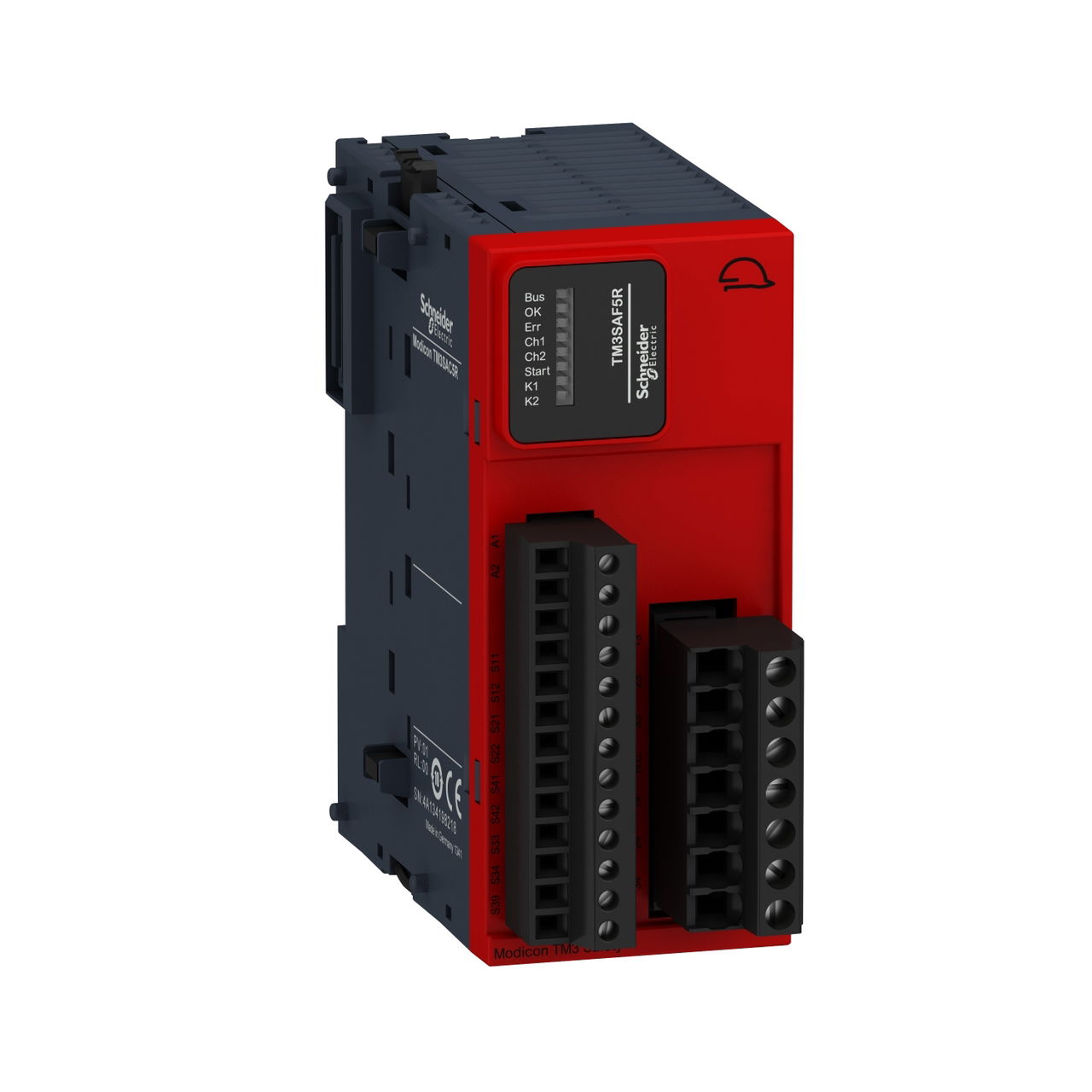

Modicon TM3 Safety module - 1 Function, Cat 4 PL e/SIL CL3 (screw) 24Vdc

Link copied
SKU
EAN
GTIN
MPN

Modicon TM3 Safety module - 1 Function, Cat 4 PL e/SIL CL3 (screw) 24Vdc by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Farnell and RS Components. It is currently in stock at 2 of them. Trade prices range from £217.93 to £286.24 excl. VAT. Voltimum+ members earn 36 points per unit.

This TM3 safety expansion module monitors emergency shutdown pushbuttons and limit switches. It meets the requirements of PL e/Category 4 conforming to EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 62061. It has a module locking latch, 2 TM3 bus connectors designed to provide continuity of the link between connected modules, a symmetrical rail locking clip, display block for the module channels and diagnostics. It completes your Modicon M221, M241 or M251 PLC configuration with a dedicated safety I/O, without the need to use a complete safety controller. It has removable terminals for easier and better control wires tightening, thus improving installation reliability.

Voltimum+ Loyalty Programme Loyalty points: 36

Price range: £ 217.93 - £ 286.24 Excl. VAT

Specifications

Depth 73 mm
Model Other
Width 43.7 mm
Height 94 mm
EFDE0031 yes
Release-delay
With start input no
Control voltage 1
Evaluation inputs Other
Supply voltage DC
Rated switch current 1.1 A
With feedback circuit no
Supply voltage AC 50 Hz
With approval for BG BIA no
Type of control voltage 2 DC
Operating voltage AC 60 Hz
Suitable for rail mounting yes
Voltage type (supply voltage) DC
Voltage type (operating voltage) DC
Stop category according to IEC 60204 1
Suitable for monitoring of tactile sensors no
Suitable for monitoring of position switches no
Suitable for monitoring of proximity switches no
Number of outputs, safety related, delayed, with contact -
Number of outputs, safety related, undelayed, with contact 3
Number of outputs, signalling function, delayed, with contact -
Number of outputs, signalling function, delayed, semiconductors -
Number of outputs, signalling function, undelayed, semiconductors -

Documents

Declaration of Conformity (Sustainability)

TM3SAF5R REACh Regulation

Open

User guide

Modicon TM3 (EcoStruxure Machine Expert - Basic) Expansion Modules, Programming Guide

Open

Instruction sheet

TM3SAF5R, TM3SAF5RG Safety Module for monitoring EMERGENCY STOP circuits according to ISO 13849, IEC 62061, IEC 61058, Instruction Sheet

Open

Product data sheet

Open

Catalog

Catalog Modicon TM3 Expansion IO modules for Modicon M221, M241, M251 and M262 plc_February 2023

Open

Declaration of Conformity (Sustainability)

TM3SAF5R EU RoHS Directive

Open

Declaration of conformity

Modicon DoC TM3 Accessory

Open

Environmental Disclosure

Modicon TM3 Safety Module Product Environmental Profile

Open
