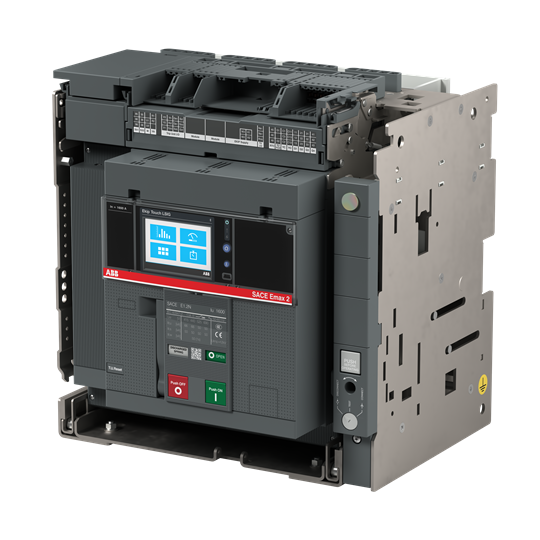

E1.2N 630 Ekip Touch LSIG 4p WMP

Name: E1.2N 630 Ekip Touch LSIG 4p WMP
Brand: ABB
SKU: 1SDA072706R1
Availability: InStock

E1.2N 630 Ekip Touch LSIG 4p WMP by ABB is listed by 1 electrical wholesaler on Voltimum UK, including TLA, and currently in stock. Trade price £6,211.46 excl. VAT. Voltimum+ members earn 3393 points per unit.

MOVING PART FOR C.BREAKER SACE EMAX2 E1.2N 630 FOUR-POLE WITH SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSIG R 630 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED

Product identifiers

SKU: 1SDA072706R1

EAN: 8015644765569

GTIN: 8015644765569

MPN: E1.2N 630 Ekip Touch LSIG 4p WMP

Loyalty points: 3393

Price: £ 6,211.46 Excl. VAT

Specifications

Power loss	62
Rated voltage
Number of poles	4
Device construction	Built-in device slide-in technique (withdrawable)
Motor drive optional	yes
Motor drive integrated	no
Type of control element	Push button
Degree of protection (IP)	IP30
Rated permanent current Iu	630
With switched-off indicator	yes
Overload release current setting
Integrated earth fault protection	yes
Complete device with protection unit	yes
With integrated under voltage release	no
DIN rail (top hat rail) mounting optional	no
Suitable for DIN rail (top hat rail) mounting	no
Type of electrical connection of main circuit	Connection at separate chassis part
Position of connection for main current circuit	Connection at separate chassis part
Adjustment range undelayed short-circuit release
Number of auxiliary contacts as change-over contact	4
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Adjustment range short-term delayed short-circuit release
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz	66
