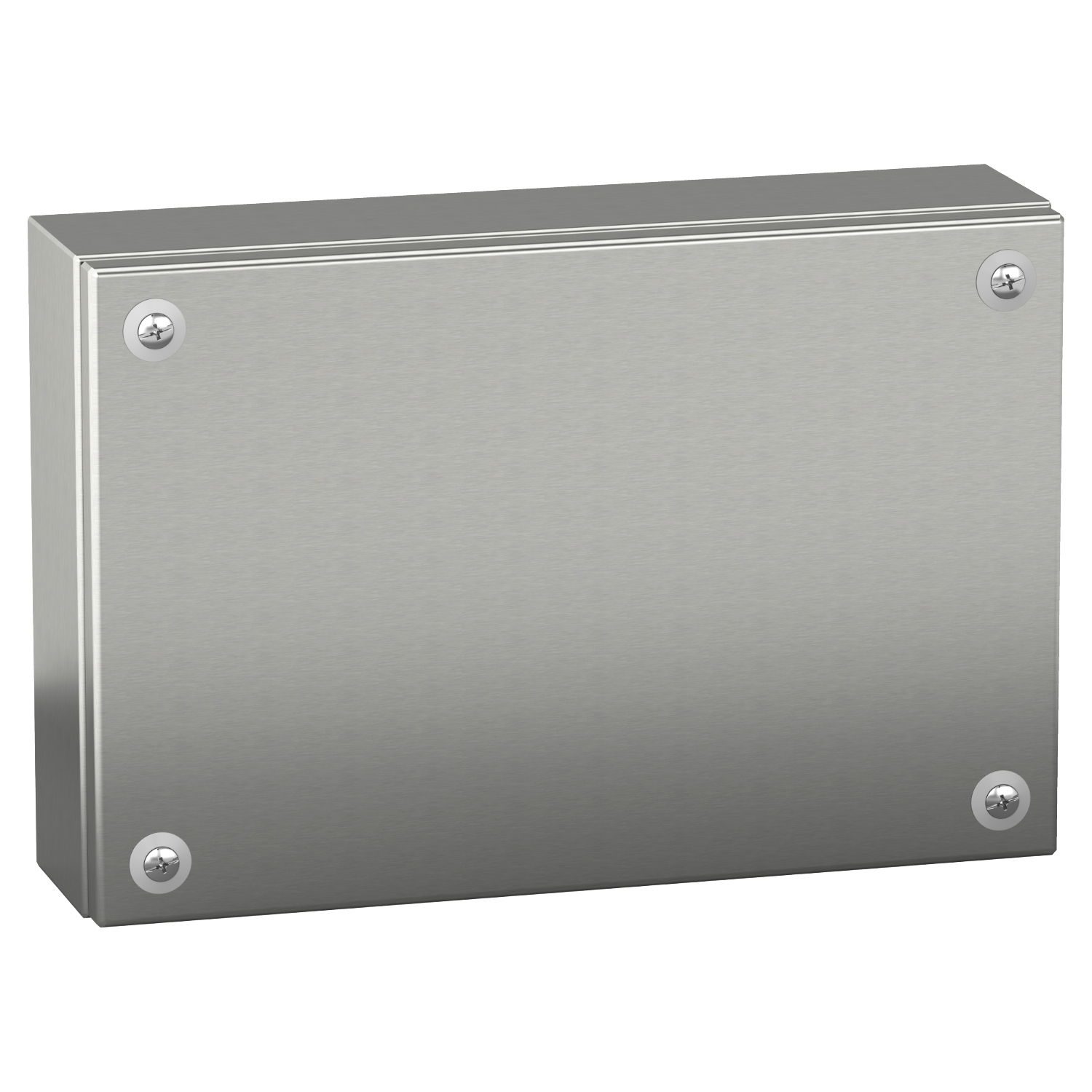

"Stainless steel wall mounted industrial box, PanelSeT SBX, 200x300x80 mm, IP66"

Link copied
SKU
EAN
GTIN
MPN

"Stainless steel wall mounted industrial box, PanelSeT SBX, 200x300x80 mm, IP66" by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £218.04 excl. VAT. Voltimum+ members earn 27 points per unit.

PanelSeT SBX stainless steel 304L industrial box is designed for a multi-purpose application It is certified by BV, BVM, and UL and is perfect for use in harsh environments This box has a nominal height, width and depth of 200mm, 300mm and 80mm respectively The box is made with a Scotch-Brite® brushed surface finish and consists of 4 cover screw, a cover and a body It has a captive screw PZ2 outside the sealed area The cover can be removed for maintenance purposes The box is wall mounted and has a flat face box enclosure type with a half turn metal screw cover fixing The net weight of the enclosure is 2,2kg It is protected by IK10 (IEC62262) and has an IP66 rating (IEC60529) The box can withstand temperatures between -35 to 80 °C

Voltimum+ Loyalty Programme Loyalty points: 27

Price: £ 218.04 Excl. VAT

Specifications

Depth 80 mm
Shape Square
Width 300 mm
Colour Grey
Length 300 mm
EFUK0020 no
EFUK0021 yes
Material Stainless steel
RAL-number 7035
Halogen free yes
Type of inlet -
For Ex-zone gas None
Mounting method Surface mounted
Cover attachment Screwed
Number of inlets 0
Extension possible no
Operating temperature
Explosion-tested version no
Degree of protection (NEMA) 4
Rated insulation voltage Ui -
Material plate thickness cabinet 1.2 mm

Documents

Declaration of Conformity (Sustainability)

NSYSBX20308 REACh Regulation

Open

Instruction sheet

PanelSeT SBX - Stainless Steel Industrial Boxes and Accessories - Instruction sheet

Open

Product data sheet

Open

Catalog

Universal Enclosures 2026 - Catalog (English)

Open

Declaration of Conformity (Sustainability)

NSYSBX20308 EU RoHS Directive

Open

Environmental Disclosure

PanelSeT SBX – Stainless Steel Industrial Box

Open

CAD

Open

CAD

Open
