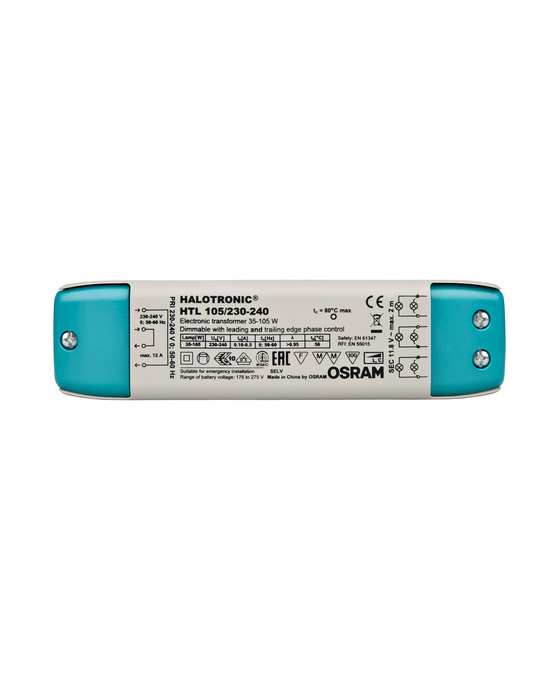

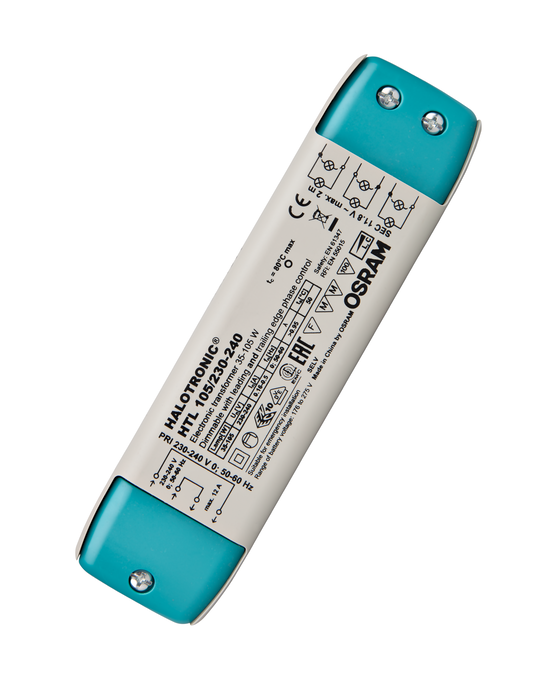

HTL 105/230…240
Product benefits
- Very low power loss thanks to high efficacy
- Through-wiring possible on the primary side
- Large temperature range
- Protective operation throughout the entire partial-load range for long lamp life
- High efficiency
Areas of application
- Effect and accent lighting
- Living rooms
- Object lighting
- Conference rooms
- Restaurants
- Recessed and surface-mounted furniture luminaires
- Shop lighting
- Event rooms
Product features
- Line frequency: 50 60 Hz
- RI suppression: to EN 55015 (A1: 2007)/CISPR 15, EN 55022
- Line harmonics according to EN 61000-3-2
- Immunity according to EN 61547
- Safety: to EN 61347
- Short-circuit protection, overload protection, overtemperature protection: electronically reversible
- Electrical isolation between the primary side and the secondary side
- Dimmable on the leading edge and trailing edge
Product identifiers
SKU: 4008321927019
EAN: 4008321927019
GTIN: 4008321927019
MPN: 4008321927019
Price: £ 0.00 Excl. VAT
Specifications
Capabilities
| Dimmable | Yes |
| Dimming range | 0…100 % |
| Overheating protection | Automatic switch off, reversible |
| Overload protection | Automatic switch off, reversible |
| Short-circuit protection | Automatic switch-off, reversible |
| No-load proof | Yes |
| Max. cable length to lamp/LED module | 2,0 m |
| Suitable for fixtures with prot. class | II |
