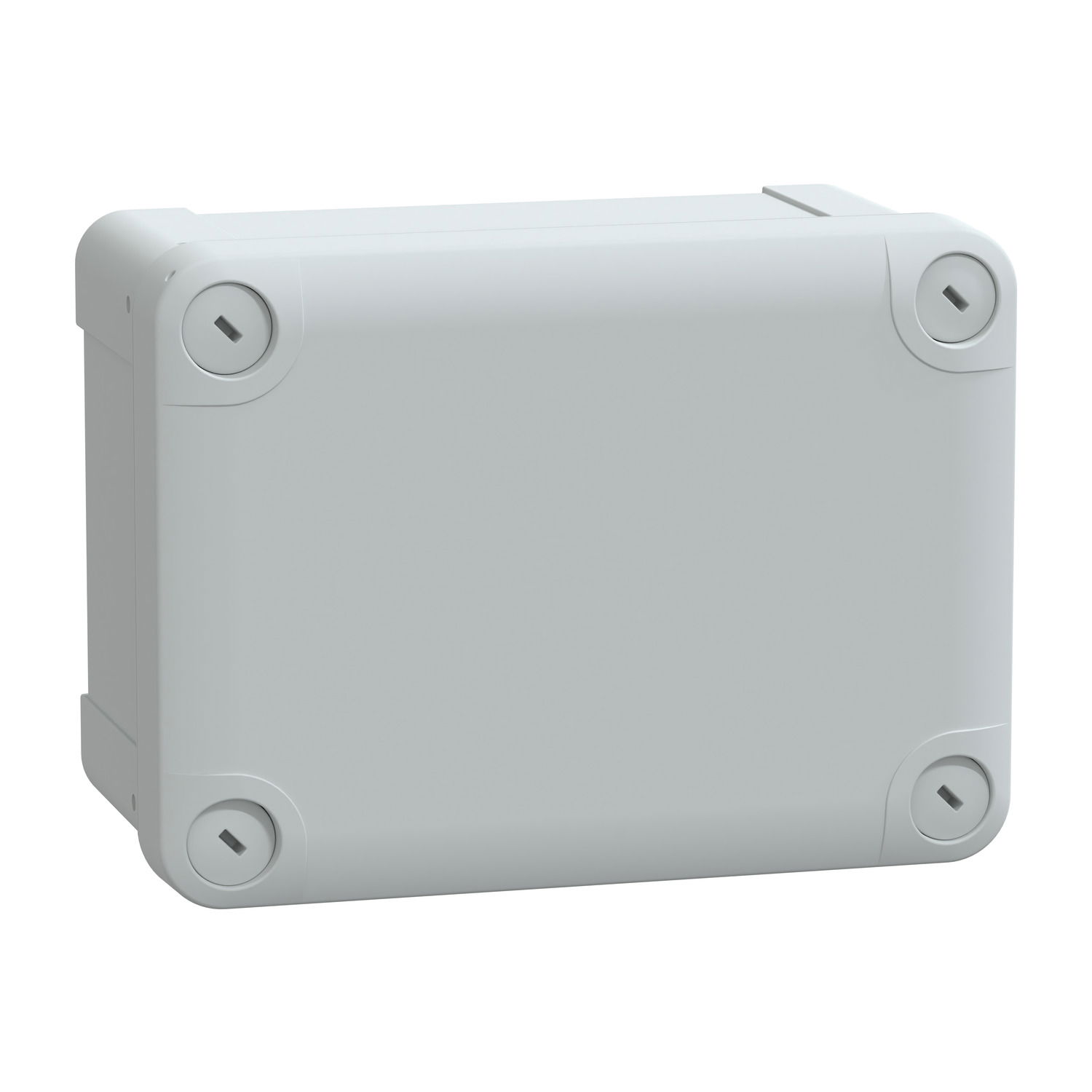

PC box IP66 IK08 RAL7035 Int.H150W105D80 Ext.H164W121D87 opaque PC cover H20

Link copied
SKU
EAN
GTIN
MPN

PC box IP66 IK08 RAL7035 Int.H150W105D80 Ext.H164W121D87 opaque PC cover H20 by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Farnell and City Electrical Factors. It is currently in stock at all of them. Trade prices range from £13.33 to £20.37 excl. VAT. Voltimum+ members earn 2 points per unit.

Thalassa TBP industrial PC box with opaque PC cover H20. Int is 150 x 105 x 80 mm. Ext is 164 x 121 x 87 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).

Voltimum+ Loyalty Programme Loyalty points: 2

Price range: £ 13.33 - £ 20.37 Excl. VAT

Specifications

Depth 87 mm
Width 121 mm
Colour Grey
Height 164 mm
With lock no
RAL-number 7035
Cover model Closed
Inner depth 80 mm
Built-in depth -
Impact strength IK08
Housing material Plastic
Circuit integrity None
Extension possible no
With mounting plate no
Transparent cover/door no
Suitable for outdoor use yes
Degree of protection (NEMA) 4X
Material plate thickness cabinet -
Material plate thickness door/cover -
Number of openings for flange plates -
