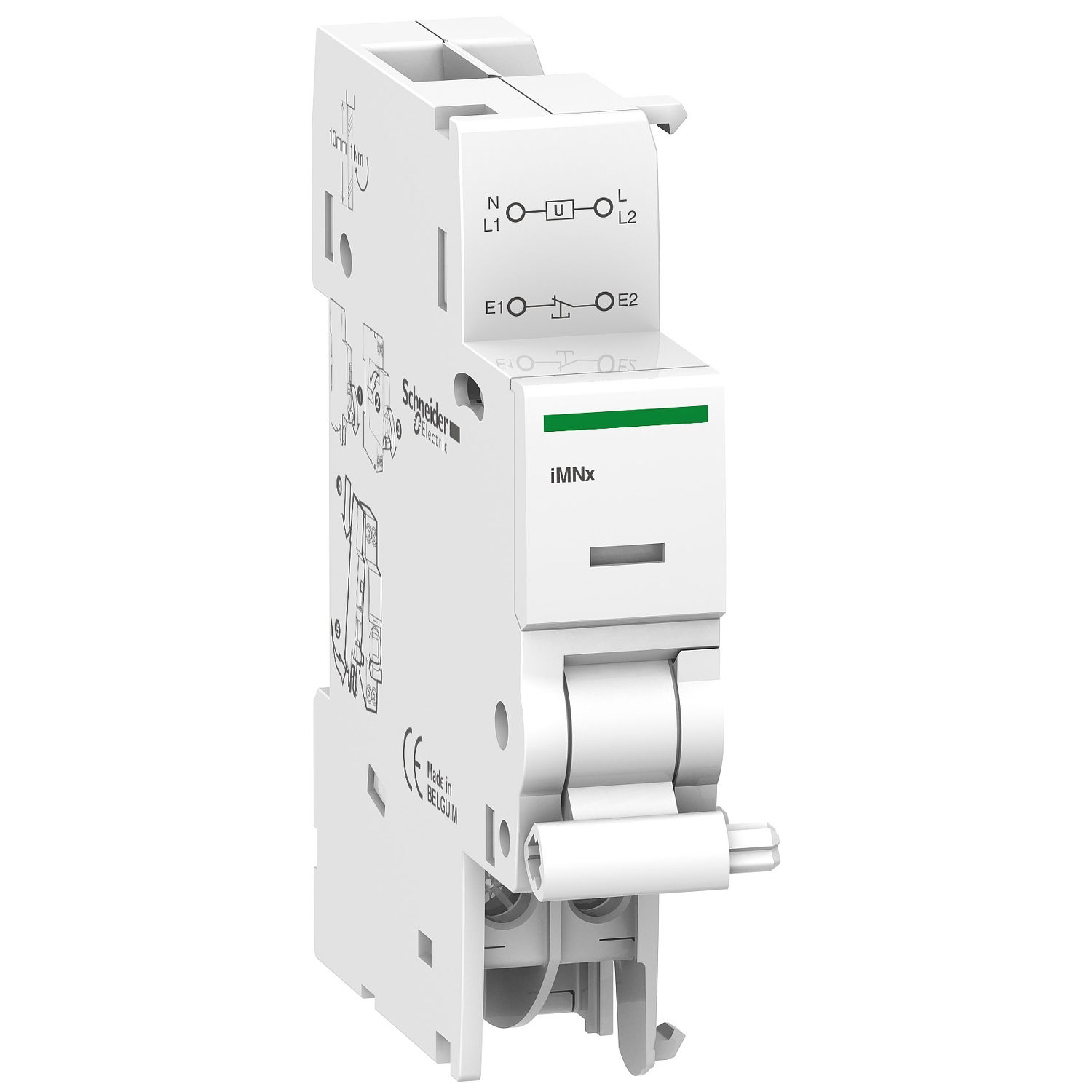

Voltage release - iMNx - tripping unit - 220..240 VAC

Link copied
SKU
EAN
GTIN
MPN

Voltage release - iMNx - tripping unit - 220..240 VAC by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £134.23 excl. VAT. Voltimum+ members earn 15 points per unit.

This Acti 9 iMNx electrical auxiliary is an undervoltage release independent of the supply voltage. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA and iC60, iID double terminals. The width in 9mm pitches is 2. It trips the associated device by opening of the control circuit. A drop in the supply voltage does not trip the associated device. There is a red mechanical indicator on the front face of the product to indicate the tripped position of the associated device. The Ue rated operational voltage is 220VAC to 240VAC. The operating frequency is 50Hz or 60Hz. The operating temperature is -35°C to + 70°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.

Voltimum+ Loyalty Programme Loyalty points: 15

Price: £ 134.23 Excl. VAT

Specifications

Function Under voltage coil
Voltage type AC
Rated voltage 240 V
Device fitting Miniature circuit breaker (MCB)
Rated switch current -
Number of fault-signal switches 0
Width in number of modular spacings 1
Number of contacts as change-over contact 0
Number of contacts as normally open contact 0
Number of contacts as normally closed contact 0
