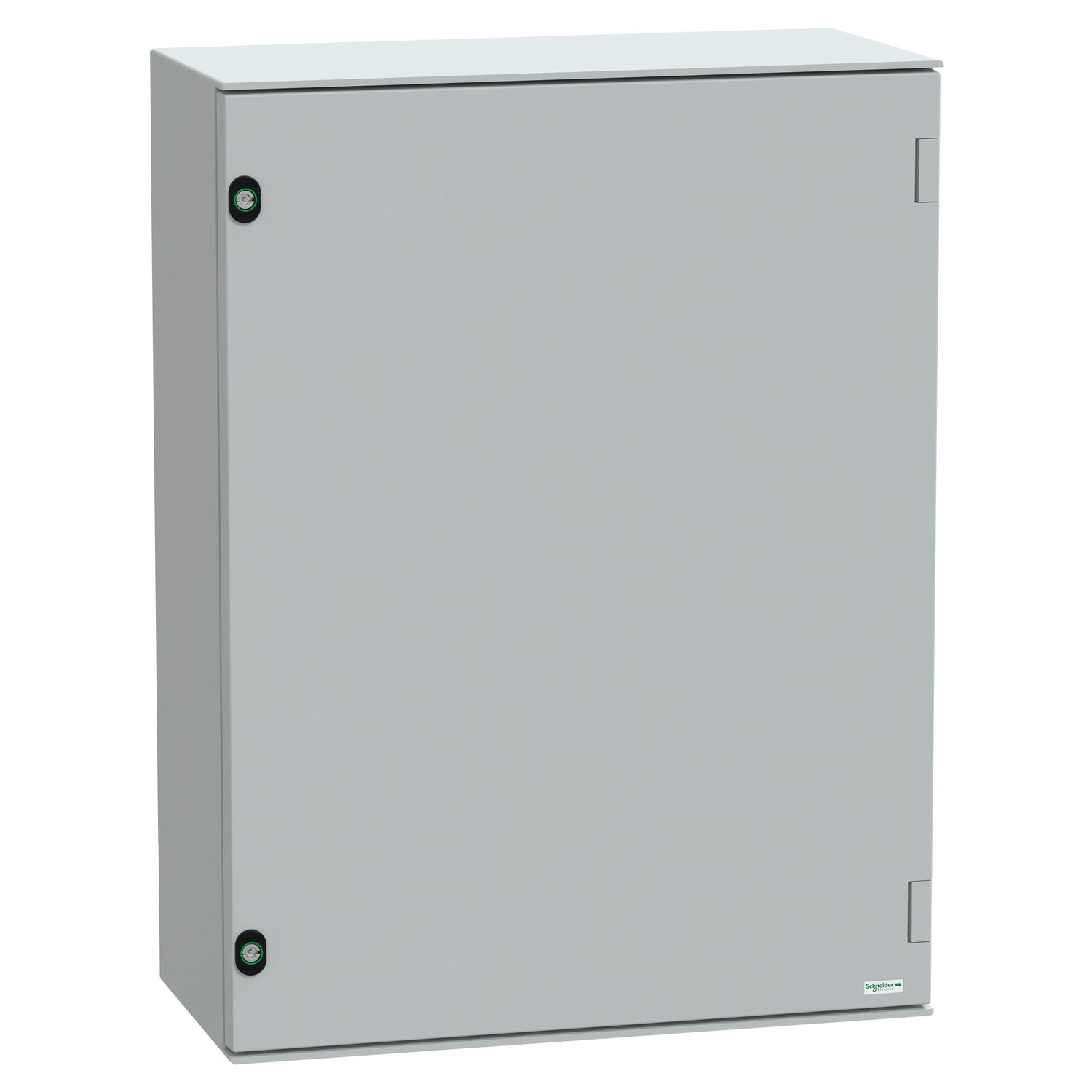

Wall-mounting encl. polyester monobloc IP66 H847xW636xD300mm+metal mount.plate

Wall-mounting encl. polyester monobloc IP66 H847xW636xD300mm+metal mount.plate

"This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications" "The enclosure has a nominal height, width, and depth of 847 mm, 636 mm, and 300 mm, respectively" "It is made of polyester reinforced with fibreglass, providing durability and resistance to industrial and outdoor environments" "The enclosure comes in a grey (RAL 7035) color" "The enclosure consists of one body, one door, one mounting plate, and two locks" "The door is plain, allowing easy visibility of the equipment inside" "The door can be opened from the front and has two 3 mm double-bar locks" "The mounting plate is plain steel and can be removed by a fixing element" "The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529)" "It is also highly resistant to impacts, with an IK10 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating" "The enclosure is UL certified and can be stored in ambient air temperatures ranging from -40 to 80°C without affecting its performance"

Product identifiers

SKU: NSYPLM86PG
EAN: 3606480776779
GTIN: 3606480776779
MPN: NSYPLM86PG

Voltimum+ Loyalty Programme Loyalty points: 55

Price range: £ 328.16 - £ 430.83 Excl. VAT

Specifications

Depth 300 mm
Width 636 mm
Colour Grey
Height 847 mm
Material Plastic
Couplable no
With door yes
RAL-number 7035
EMC-version no
Freestanding no
Pre-stamping no
With rear door no
Number of doors 1
Material quality Polyester
Surface finishing Untreated
With mounting plate yes
With ventilation door no
Floor standing wall model -
Suitable for wall built-in yes
Degree of protection (NEMA) 4X
Suitable for metrical mounting -
Max. permissible load of the door(s) according to IEC 62208 184 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 -
