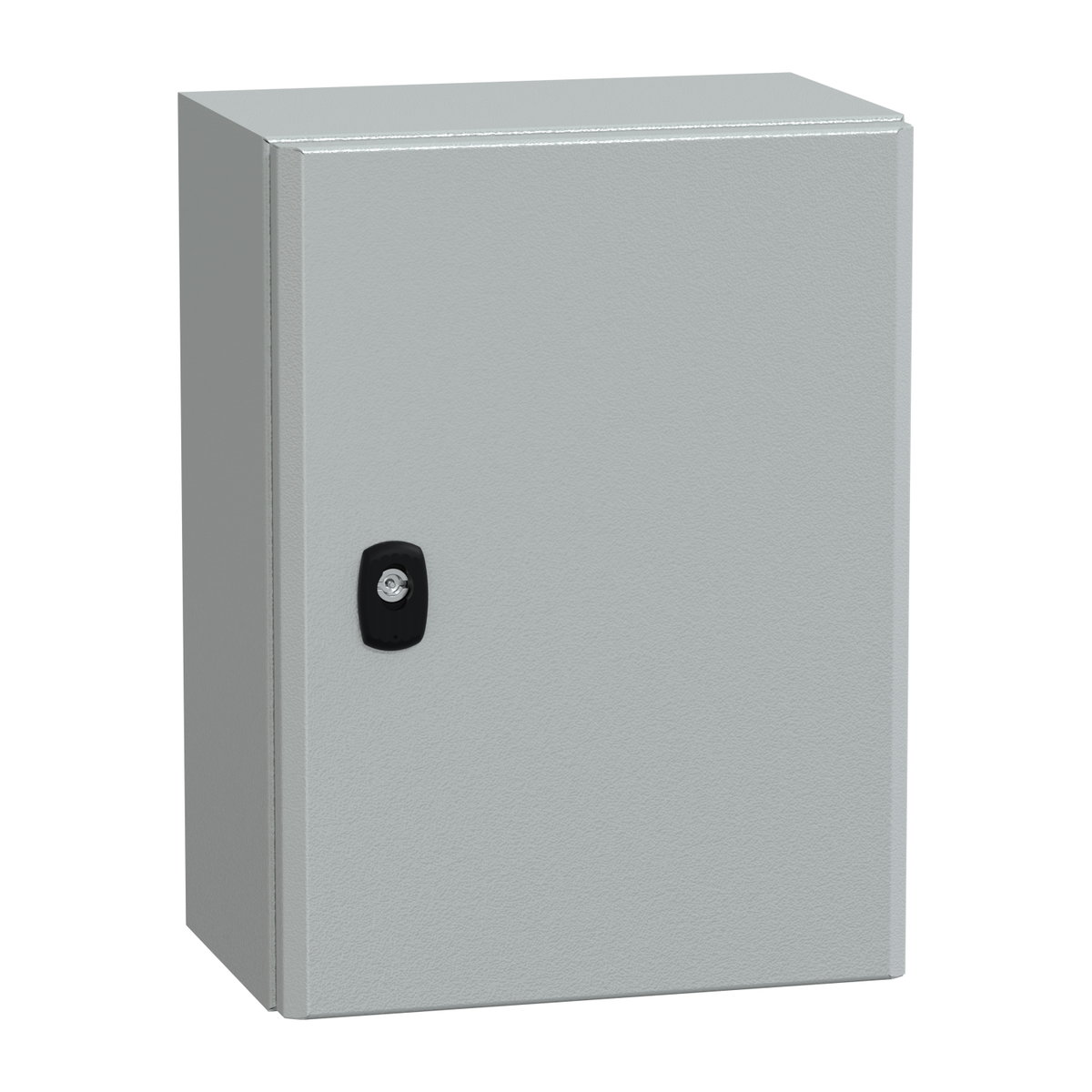

"Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 400x300x200mm, IP66, IK10"

Name: "Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 400x300x200mm, IP66, IK10"
Brand: Schneider Electric
SKU: NSYS3D4320P
Availability: InStock

PanelSeT S3D wall mounted steel enclosure with plain door. 400 x 300 x 200 mm. Single piece body, mounting plate included. 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035.

Product identifiers

SKU: NSYS3D4320P

EAN: 3606480159596

GTIN: 3606480159596

MPN: NSYS3D4320P

Loyalty points:
43

Price range: £ 73.79 - £ 101.09 Excl. VAT

ETIM Group

Control cabinet systems

Videos

How to video

Specifications

Depth	200 mm
Width	300 mm
Colour	Grey
Height	400 mm
Material	Steel
Couplable	no
With door	yes
RAL-number	7035
With cover	no
EMC-version	no
Corner model	no
Freestanding	no
Pitched roof	no
Pre-stamping	no
Pole fastening	yes
With rear door	no
Impact strength	IK10
Number of doors	1
Number of locks	1
Material quality	Other
With glazed door	no
Surface finishing	Powder coating
Transparent cover	no
With mounting plate	yes
Intermediate mounting	no
With ventilation door	no
Degree of protection (IP)	IP66
Floor standing wall model	no
Number of connector holes	0
Suitable for wall built-in	no
Suitable for wall mounting	yes
Degree of protection (NEMA)	4X
Suitable for outdoor set-up	no
Suitable for metrical mounting	yes
Mounting plate depth-adjustable	no
Max. permissible load of the door(s) according to IEC 62208	50 N
Max. permissible load of the enclosure according to IEC 62208	250 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890	-
Max. permissible load of the mounting plate according to IEC 62208	250 N
