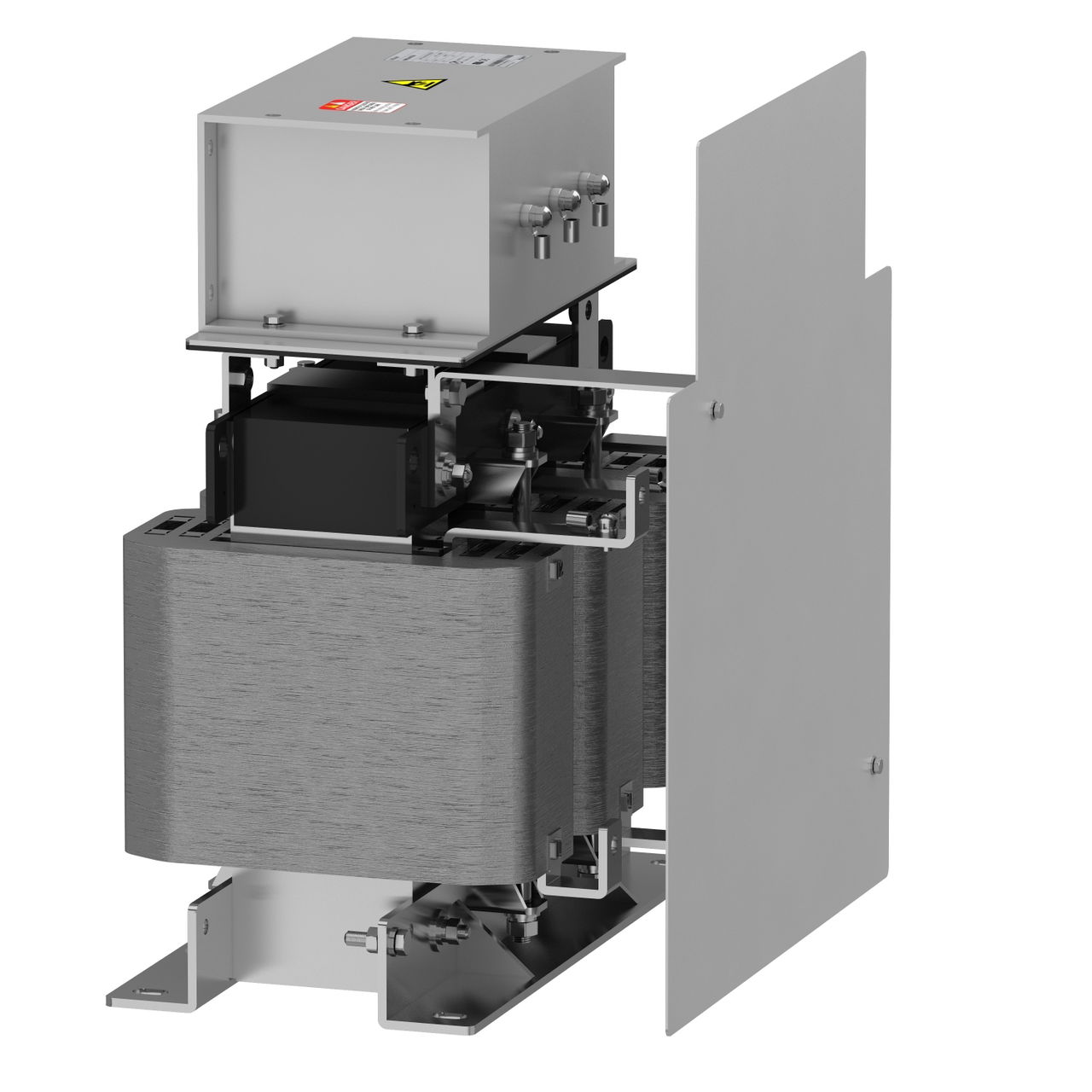

Output sinus filter - 180 A - for variable speed drive

Link copied
SKU
EAN
GTIN
MPN

Output sinus filter - 180 A - for variable speed drive by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £2,812.24 to £2,945.00 excl. VAT. Voltimum+ members earn 368 points per unit.

This sinus filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 180A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 90kg. It is used for applications requiring long cable runs, motors connected in parallel, submersible pumps sensitive to dv/dt, an intermediate transformer between the drive and the motor.

Voltimum+ Loyalty Programme Loyalty points: 368

Price range: £ 2,812.24 - £ 2,945.00 Excl. VAT

Specifications

Rated current AC
Rated clock frequency 8 kHz
Suitable as du/dt-filter no
Suitable as sinus filter yes
Degree of protection (IP) IP00
Rated operating frequency
Degree of protection (NEMA) -
Number of poles, primary side 3
Suitable as audio frequency blockage no
Suitable as radio interference suppression filter no

Documents

Declaration of Conformity (Sustainability)

VW3A5406 REACh Regulation

Open

Product data sheet

Open

Catalog

Discover catalog for Altivar Process ATV900 variable speed drives

Open

Declaration of Conformity (Sustainability)

VW3A5406 EU RoHS Directive

Open

Declaration of conformity

ATV930 & ATV950 UK DECLARATION

Open
