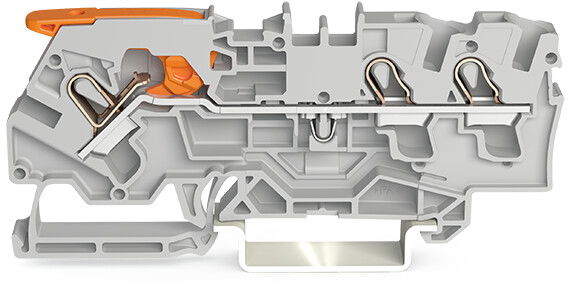

3-conductor through terminal block with lever and Push-in CAGE CLAMP® 4 mm² gray
Wago

3-conductor through terminal block with lever and Push-in CAGE CLAMP® 4 mm² gray

3-conductor through terminal block; with lever and Push-in CAGE CLAMP®; 4 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; gray

Product identifiers

SKU: 2104-1301
EAN: 4055143992442
GTIN: 4055143992442
MPN: 2104-1301

Voltimum+ Loyalty Programme Loyalty points: 1 (x25)

Price range: £ 1.75 - £ 1.79 Excl. VAT

Categories

Terminals, Connectors & Interconnects Terminal Blocks

Specifications

Depth 32.9
Width 6.2
Colour Grey
Height 83.2
EFNA0008 V0
Rated voltage 800
Mounting method DIN rail (top hat rail) 35 mm
Number of levels 1
Operating temperature 105 - 105
Material insulation body Thermoplastic
Explosion-tested version 'Ex e' yes
Type of electrical connection 1 Spring clamp connection
Number of clamp positions per level 3
Connectable conductor cross section multi-wired 0.5 - 4
Connectable conductor cross section fine-strand without cable end sleeve 0.5 - 6
