Schneider Electric
Popularity Top 10% More about Popularity
Among the top 10% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

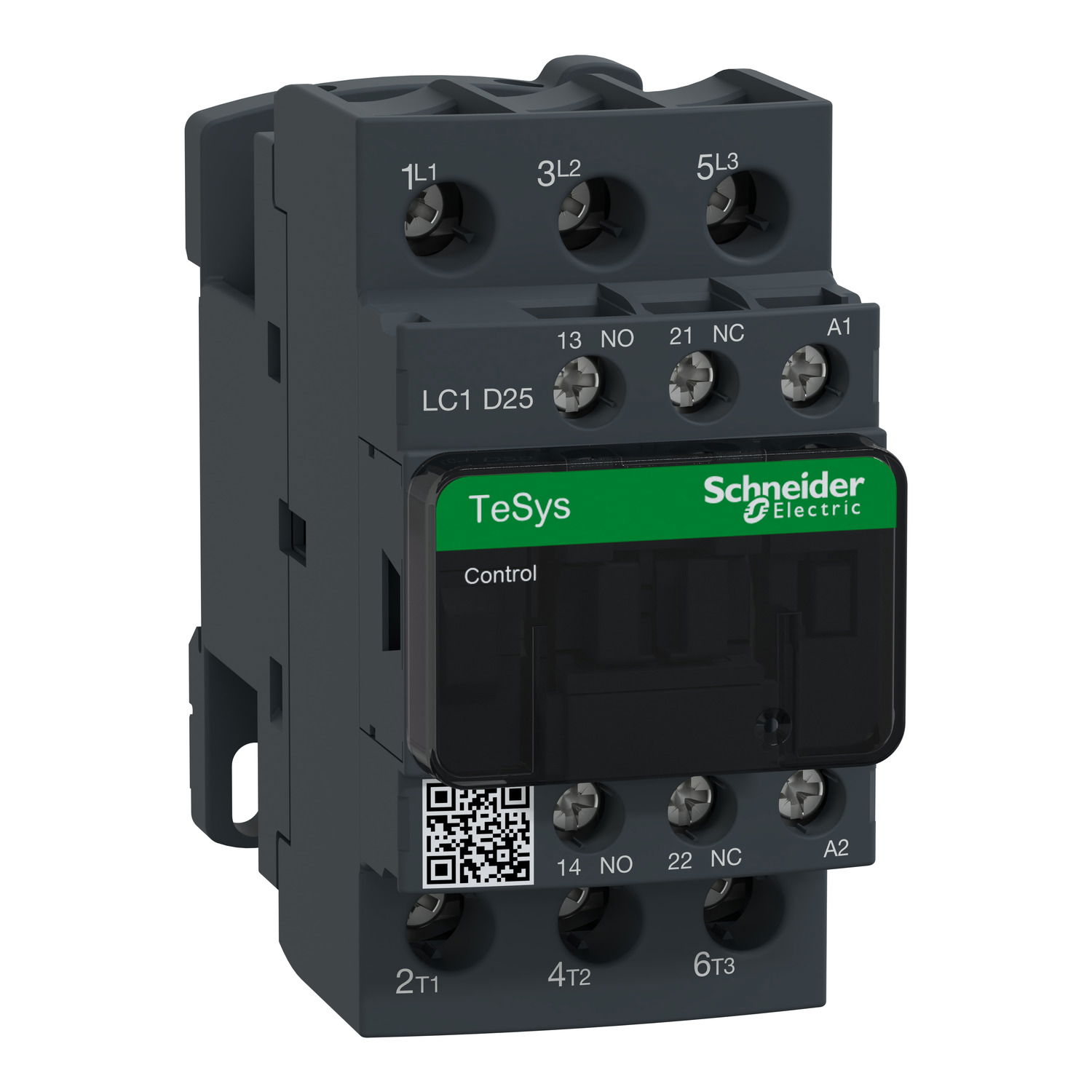

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 25 A - 250 V AC coil

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 25 A - 250 V AC coil by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 6 of them. Trade prices range from £57.24 to £93.23 excl. VAT. Voltimum+ members earn 12 points per unit.

TeSys D contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3/3e (11kW@400V). It provides a 240V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Product identifiers

SKU: LC1D25U7
EAN: 3389110350081
GTIN: 3389110350081
MPN: LC1D25U7

Voltimum+ Loyalty Programme Loyalty points: 12

Price range: £ 57.24 - £ 93.23 Excl. VAT

Categories

Switchgear & Circuit Protection Contactors & Motor Starters

ETIM group

Low-voltage industrial components

Specifications

Depth 92 mm
Width 45 mm
Height 85 mm
Modular version no
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Rated operation power NEMA -
Voltage type for actuating AC
Rated operation power at AC-3, 400 V 11 kW
Rated control supply voltage AC 50 Hz
Rated operation current Ie at AC-1, 400 V 40 A
Rated operation current Ie at AC-4, 400 V -
Number of normally open contacts as main contact 3
Number of auxiliary contacts as normally open contact 1

Documents

Declaration of Conformity (Sustainability)

LC1D25U7 REACh Regulation

Open

Product data sheet

Open

Catalog

TeSys - Catalog 2026 - Innovative and connected solutions for motor starters

Open

Declaration of Conformity (Sustainability)

LC1D25U7 EU RoHS Directive

Open

Environmental Disclosure

TeSys D Contactors AC 25 to 38A

Open

Circularity Profile

TeSys D Contactors AC 25 to 38A

Open
