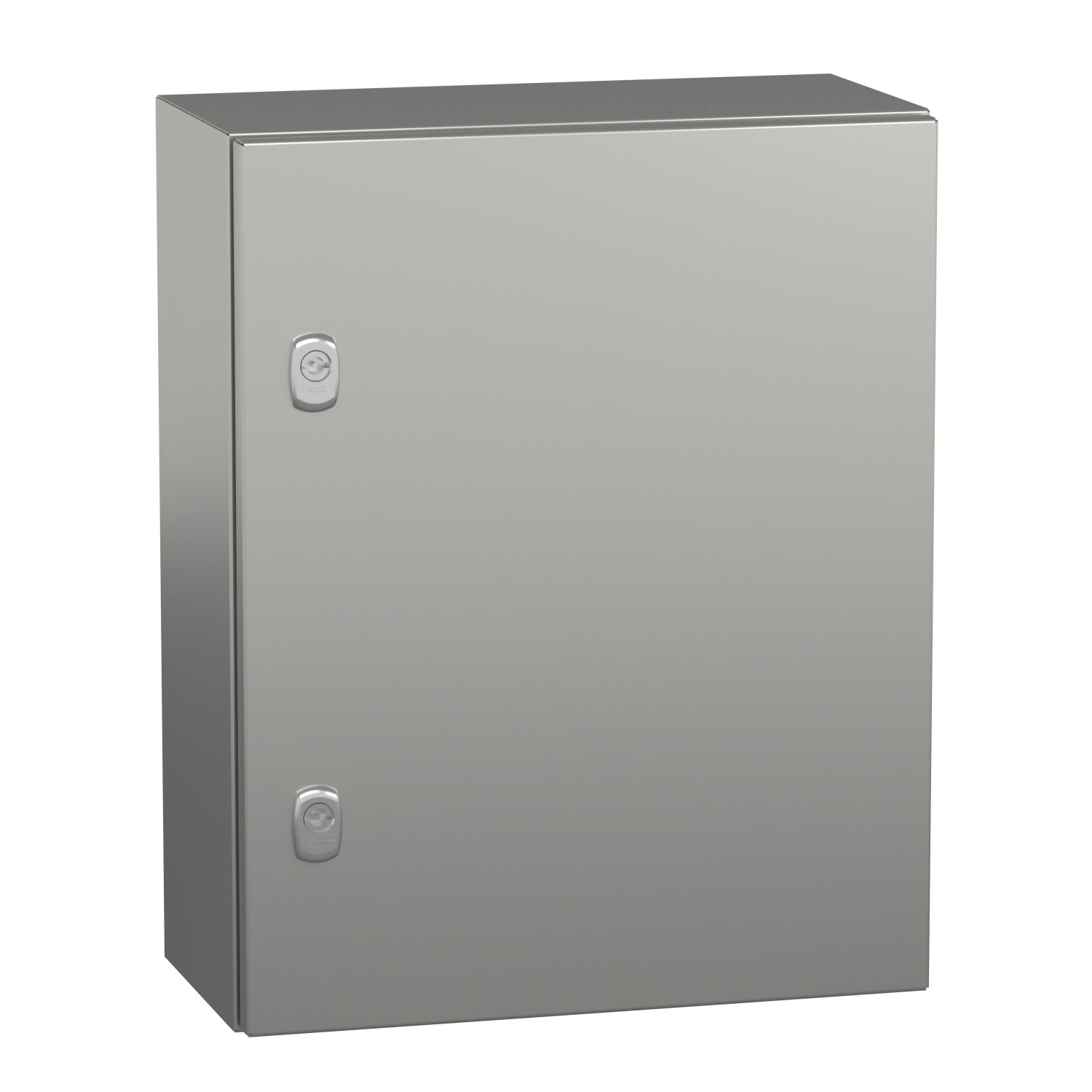

"PanelSet S3X stainless 304L, Scotch Brite® finish, H500xW400xD200 mm."

"PanelSet S3X stainless 304L, Scotch Brite® finish, H500xW400xD200 mm." by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 5 of them. Trade prices range from £355.42 to £398.42 excl. VAT. Voltimum+ members earn 50 points per unit.

Spacial S3X compact steel enclosure with plain front door. 500 x 400 x 200 mm. Multi-purpose. Installation in wall-mounting. Gutter shaped front rail, single piece body with cross shaped structure. Without mounting plate. Handle double bar 3mm. Body and door stainless steel 304L. Protection IP 55, IK10. Enclosure Scotch-Brite® brushed finish.

Product identifiers

SKU: NSYS3X5420
EAN: 3606480155185
GTIN: 3606480155185
MPN: NSYS3X5420

Voltimum+ Loyalty Programme Loyalty points: 50

Price range: £ 355.42 - £ 398.42 Excl. VAT

Categories

Enclosures & Panels Electrical Enclosures

ETIM group

Control cabinet systems

Specifications

Depth 200 mm
Width 400 mm
Colour Stainless steel
Height 500 mm
Material Stainless steel
Couplable no
With door yes
RAL-number 7035
EMC-version no
Freestanding no
Pre-stamping no
With rear door no
Number of doors 1
Material quality Stainless steel 304 (V2A)
Surface finishing Other
With mounting plate no
With ventilation door no
Floor standing wall model no
Suitable for wall built-in no
Degree of protection (NEMA) 12
Suitable for metrical mounting yes
Max. permissible load of the door(s) according to IEC 62208 50 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 -

Documents

Declaration of Conformity (Sustainability)

NSYS3X5420 REACh Regulation

Open

Instruction sheet

PanelSeT S3X - Stainless Steel Wall-mounted Enclosure - Instruction sheet

Open

Product data sheet

Open

Catalog

Universal Enclosures 2026 - Catalog (English)

Open

Declaration of Conformity (Sustainability)

NSYS3X5420 EU RoHS Directive

Open

Declaration of conformity

Declaration of Conformity UE Spacial stainless steel cabinet S3X Range Version2

Open

Environmental Disclosure

PanelSeT S3X - Stainless Steel

Open
