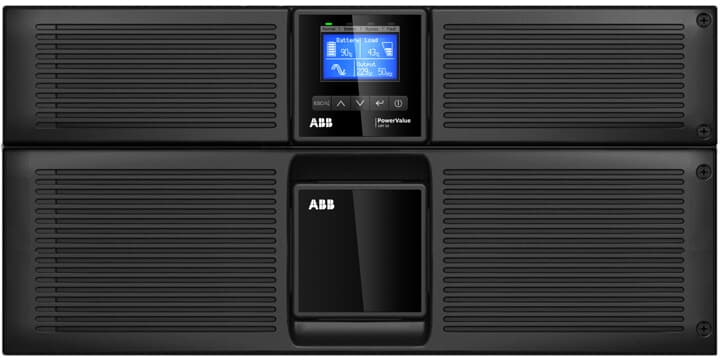

UPS PowerValue 11RT G2 10 kVA

Name: UPS PowerValue 11RT G2 10 kVA
Brand: ABB
SKU: 4NWP100151R0001
Price: 3547.00 GBP
Availability: OutOfStock

3x rewards on ABB PowerValue 11 UPS at UK Electric

VFI online double conversion;10000W;0min(long backup);RS232;USB;COM slot

Product identifiers

SKU: 4NWP100151R0001

EAN: 7640169261831

GTIN: 7640169261831

MPN: UPS PowerValue 11RT G2 10 kVA

Price: £ 3,547.00 Excl. VAT

Data and telecommunication

Specifications

SNMP	yes
Depth	573 mm
Width	438 mm
Height	86.5 mm
Weight	573 kg
Modular	no
Voltage type	AC
Input voltage	208 - 240 V
USB interface	yes
Output voltage	208 - 240 V
USV- technology	Online
Input connection	Fixed connection
Construction type	482.6 mm (19 inch) device
Power consumption	627 W
Primary frequency	50 - 60 Hz
Overall efficiency	94.2 %
Output power factor	1
Secondary frequency	50 - 60 Hz
Output apparent power	10000 VA
Efficiency in eco-mode	98 %
Output effective power	10000 W
Auto shut down function	yes
Bridging time full load	-
Number of phases primary	1
Number of phases secondary	1
Potential free switch contact	yes
Suitable for network-management	yes
Number of output connections C13	2
Number of output connections C19	0
With communication interface RS-232	yes
Max. voltage distortion output (linear load)	1 %
Number of output connections fixed connection	1
Number of output connections French standard (Type E)	0
Number of output connections with protective contact CEE 7/3 (type F)	0

Deeplink product page
Deeplink REACH
Instructions for use
Product data sheet
Declaration RoHS
Declaration DOC CE (Declaration of conformity CE)
