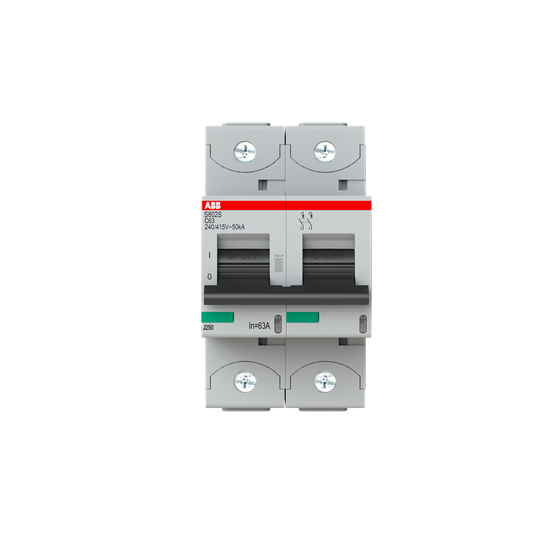

S802S-C63 High Performance MCB – Image 2 of 3

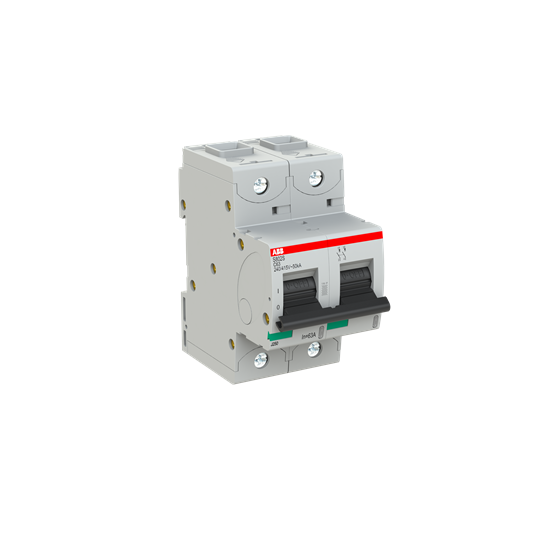

S802S-C63 High Performance MCB – Image 3 of 3

1 / 3

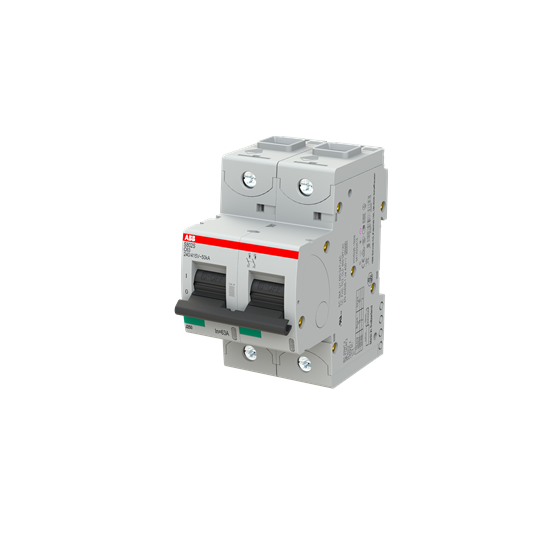

S802S-C63 High Performance MCB

Name: S802S-C63 High Performance MCB
Brand: ABB
SKU: 2CCS862001R0634
Availability: InStock

S802S-C63 High Performance MCB by ABB is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £152.14 to £191.98 excl. VAT. Voltimum+ members earn 85 points per unit.

The S802S-C63 is a 2-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 63 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802S-C63 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802S-C63 more comfortable. Due to the fast arc extinction of S802S-C63 your application will be secured.

Product identifiers

SKU: 2CCS862001R0634

EAN: 7612271200688

GTIN: 7612271200688

MPN: S802S-C63

Loyalty points: 85

Price range: £ 152.14 - £ 191.98 Excl. VAT

Specifications

Frequency
Power loss	12.8
Voltage type	AC/DC
Rated current	63
Rated voltage	400
Built-in depth	82.5
Explosion-proof	no
Pollution degree	3
Over voltage category	4
Current limiting class	3
Release characteristic	C
Number of poles (total)	2
Degree of protection (IP)	IP20
Number of protected poles	2
Flush-mounted installation	no
Rated insulation voltage Ui	690
Additional equipment possible	yes
Width in number of modular spacings	3
Ambient temperature during operating
Rated impulse withstand voltage Uimp	8
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	-
