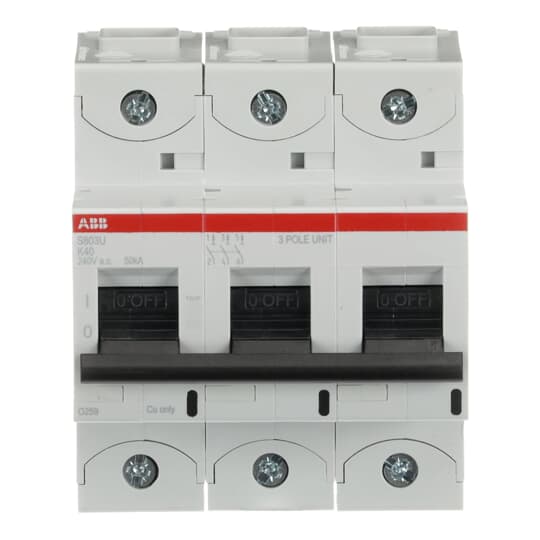

S803U-K40 High Performance MCB – Image 2 of 4

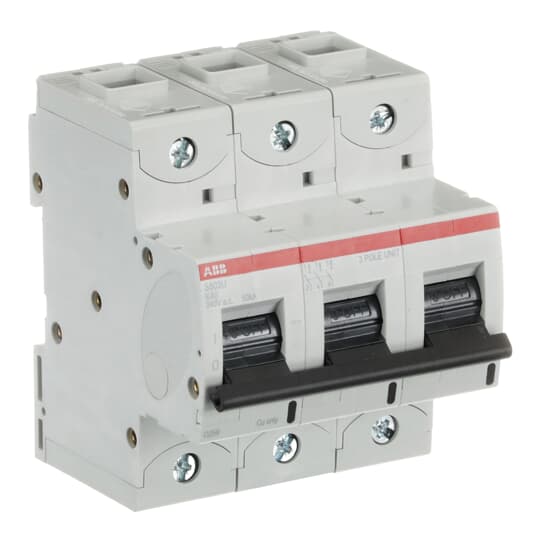

S803U-K40 High Performance MCB – Image 3 of 4

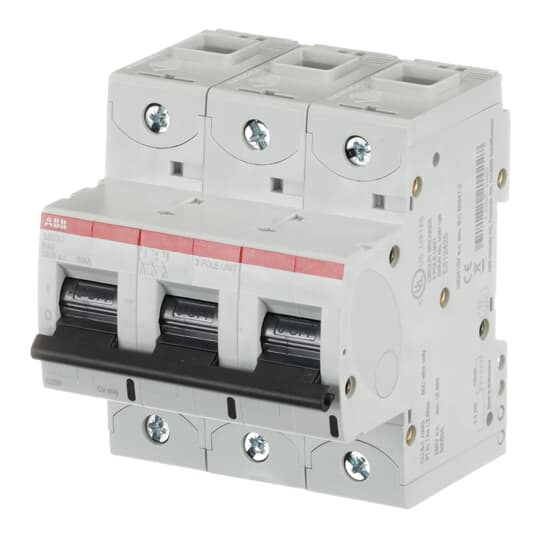

S803U-K40 High Performance MCB – Image 4 of 4

1 / 4

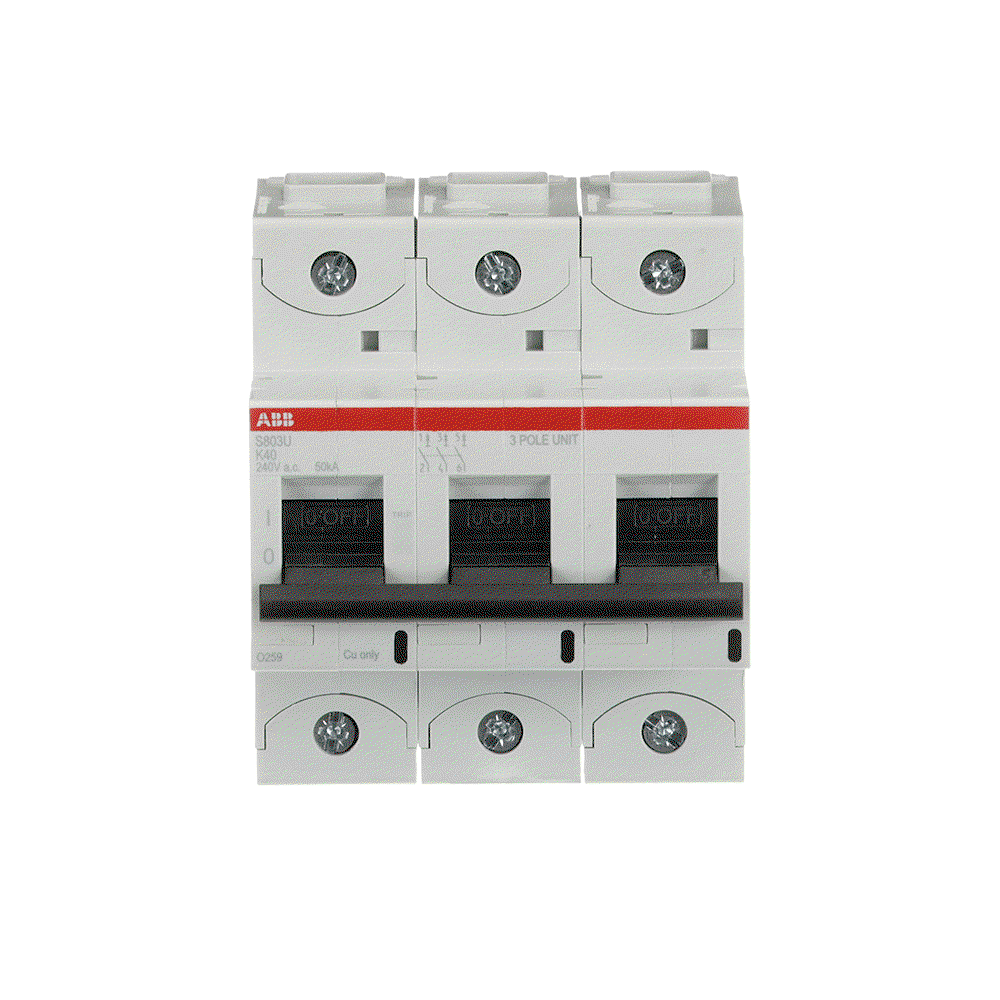

S803U-K40 High Performance MCB

Name: S803U-K40 High Performance MCB
Brand: ABB
SKU: 2CCS863017R0557
Availability: InStock

S803U-K40 High Performance MCB by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Trade price £322.65 excl. VAT. Voltimum+ members earn 142 points per unit.

S803U-K40 3 Pole K Characteristic 40A 50kA 240/415VAC High Performance Circuit Breaker HPCB

Product identifiers

SKU: 2CCS863017R0557

EAN: 7612271214227

GTIN: 7612271214227

MPN: S803U-K40

Loyalty points: 142

Price: £ 322.65 Excl. VAT

Specifications

Frequency
Power loss	3.7
Voltage type	AC
Rated current	40
Rated voltage	-
Built-in depth	82.5
Explosion-proof	no
Pollution degree	2
Over voltage category	3
Current limiting class	3
Release characteristic	K
Number of poles (total)	3
Degree of protection (IP)	IP20
Number of protected poles	3
Flush-mounted installation	no
Rated insulation voltage Ui	690
Additional equipment possible	yes
Width in number of modular spacings	4.5
Ambient temperature during operating
Rated impulse withstand voltage Uimp	8
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	-
