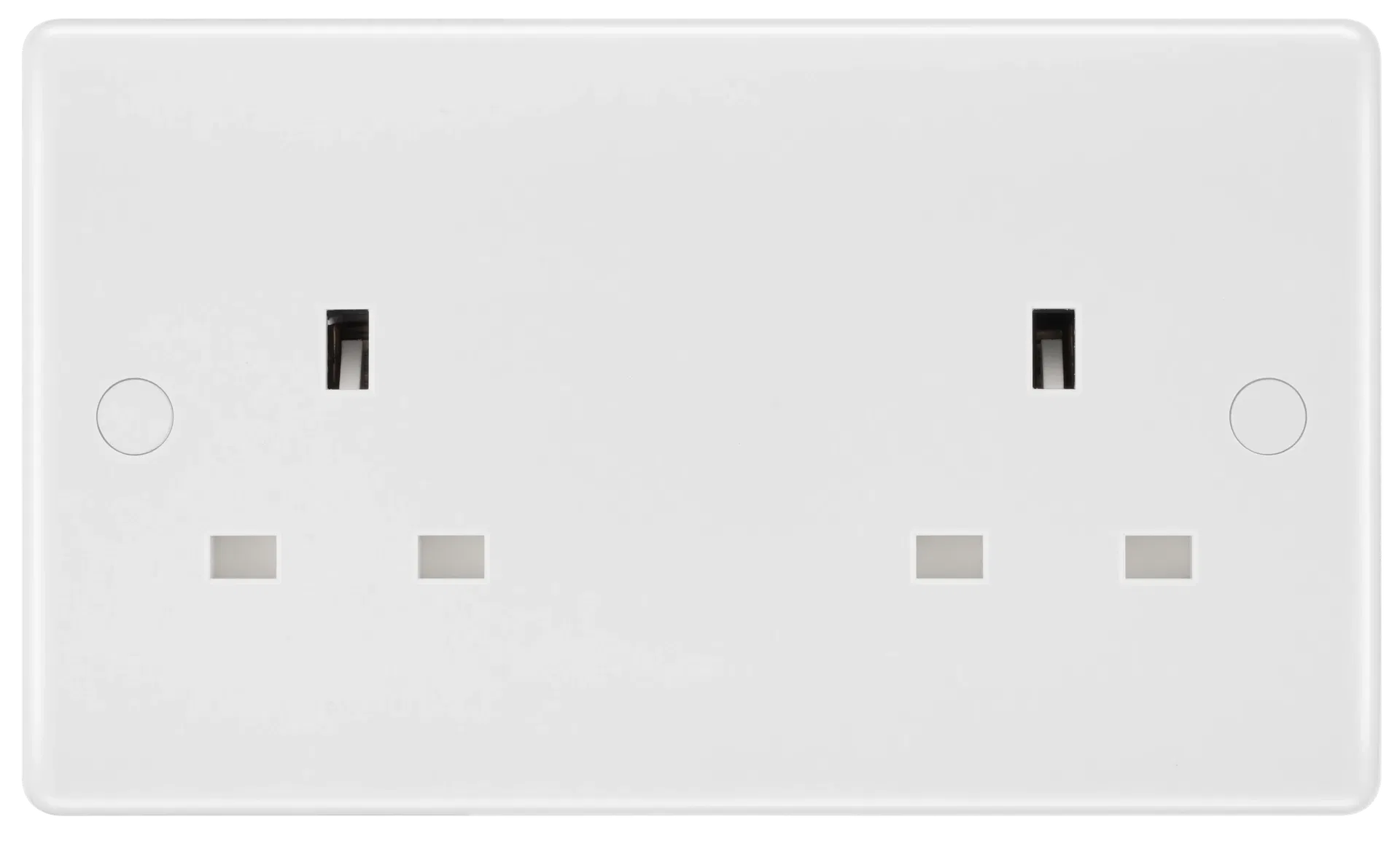

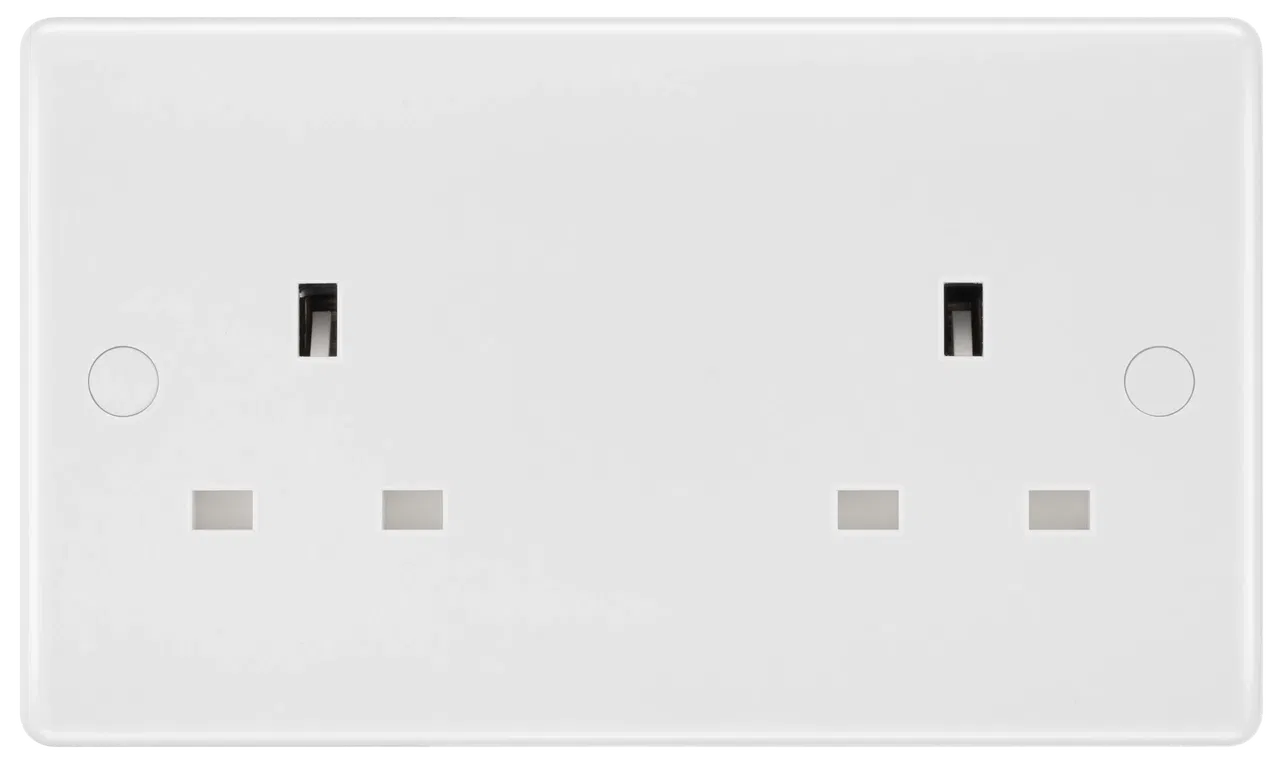

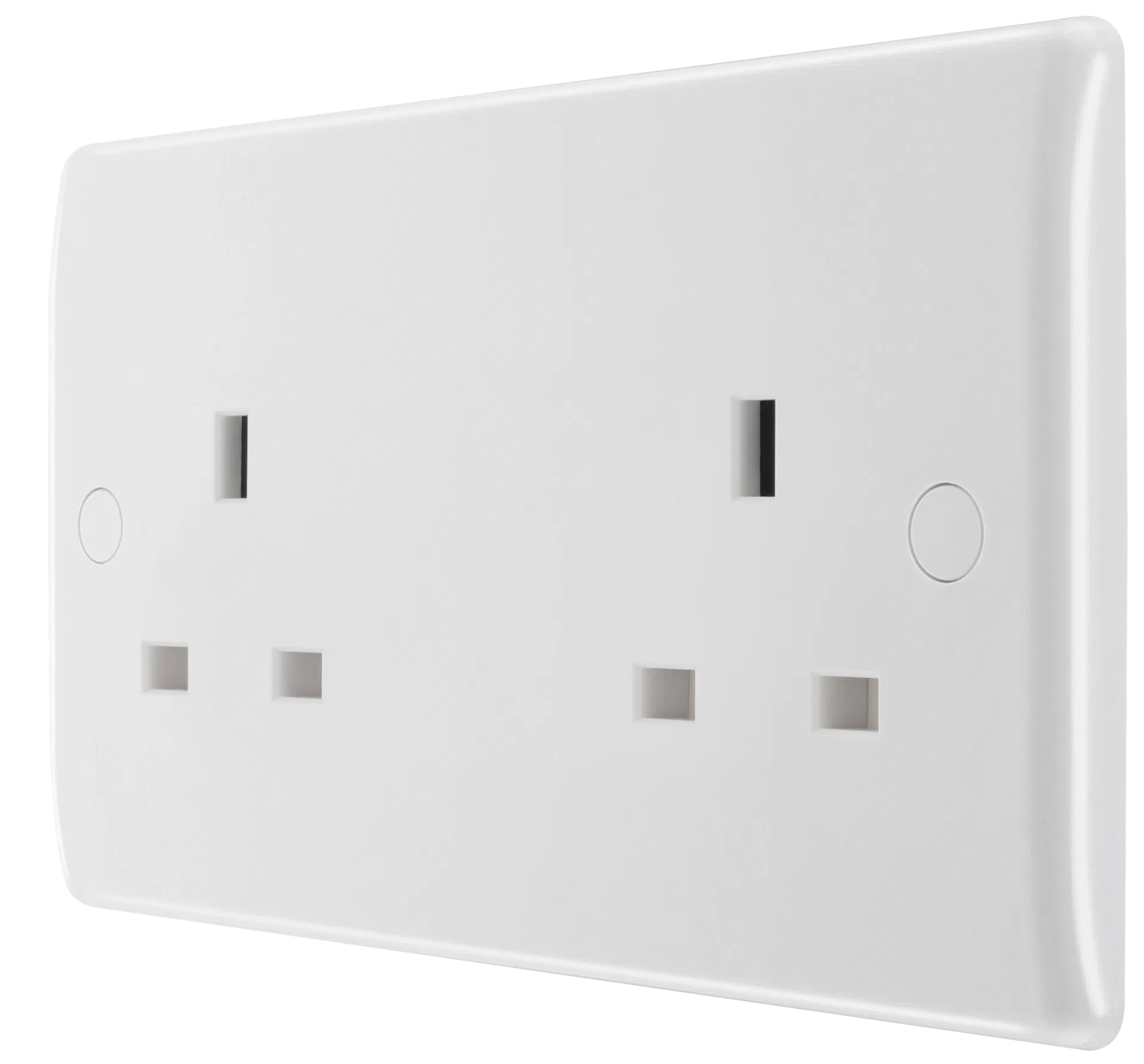

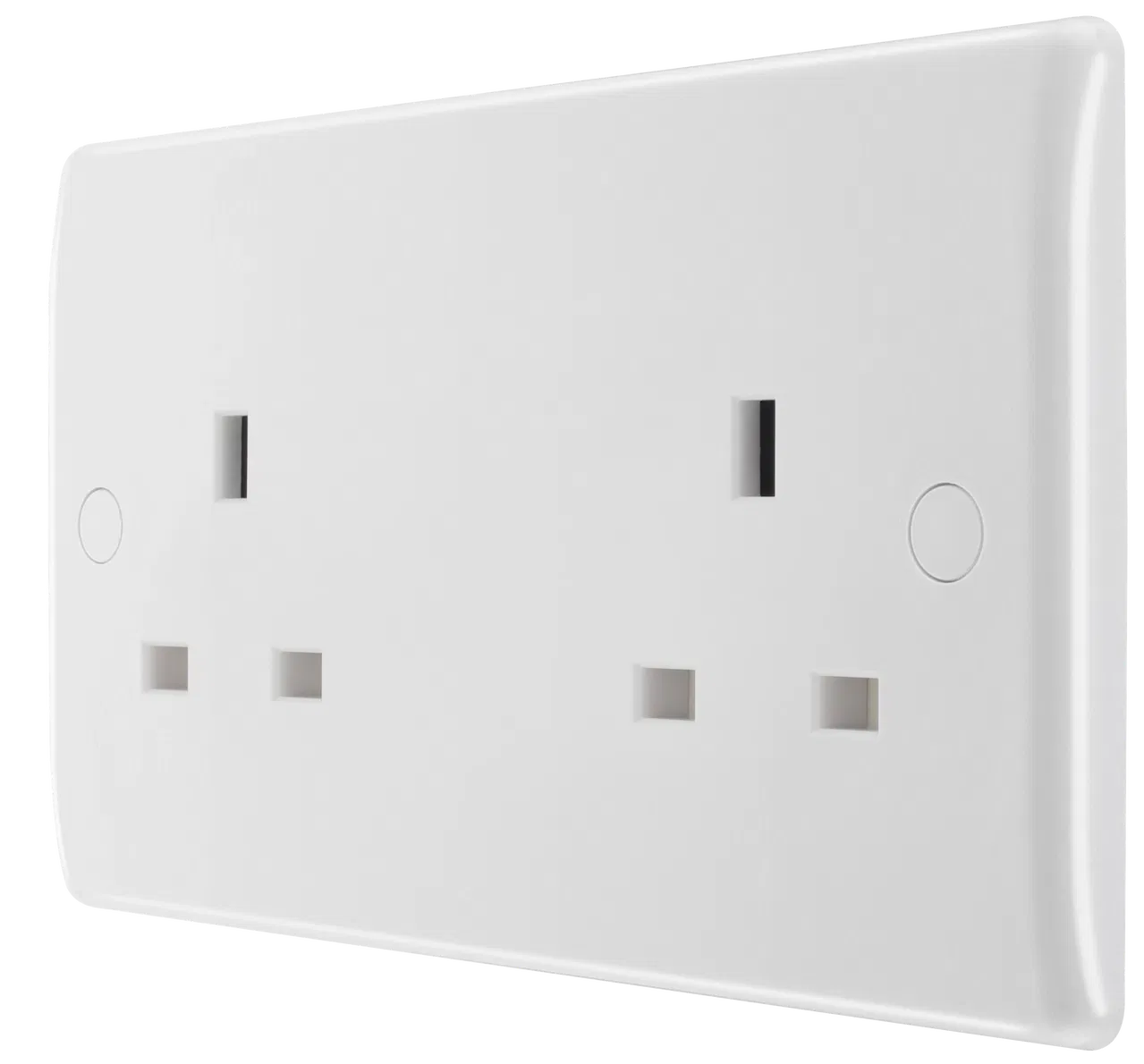

824-01
824-01
824-01 by BG Electrical is listed by 2 electrical wholesalers on Voltimum UK, including RS Electrical Supplies and City Electrical Factors. It is currently in stock at 1 of them. Trade prices range from £2.46 to £3.50 excl. VAT. Voltimum+ members earn 1 point per unit.
13A Rated
Easy to install, supplied with fixing screws and installation instructions

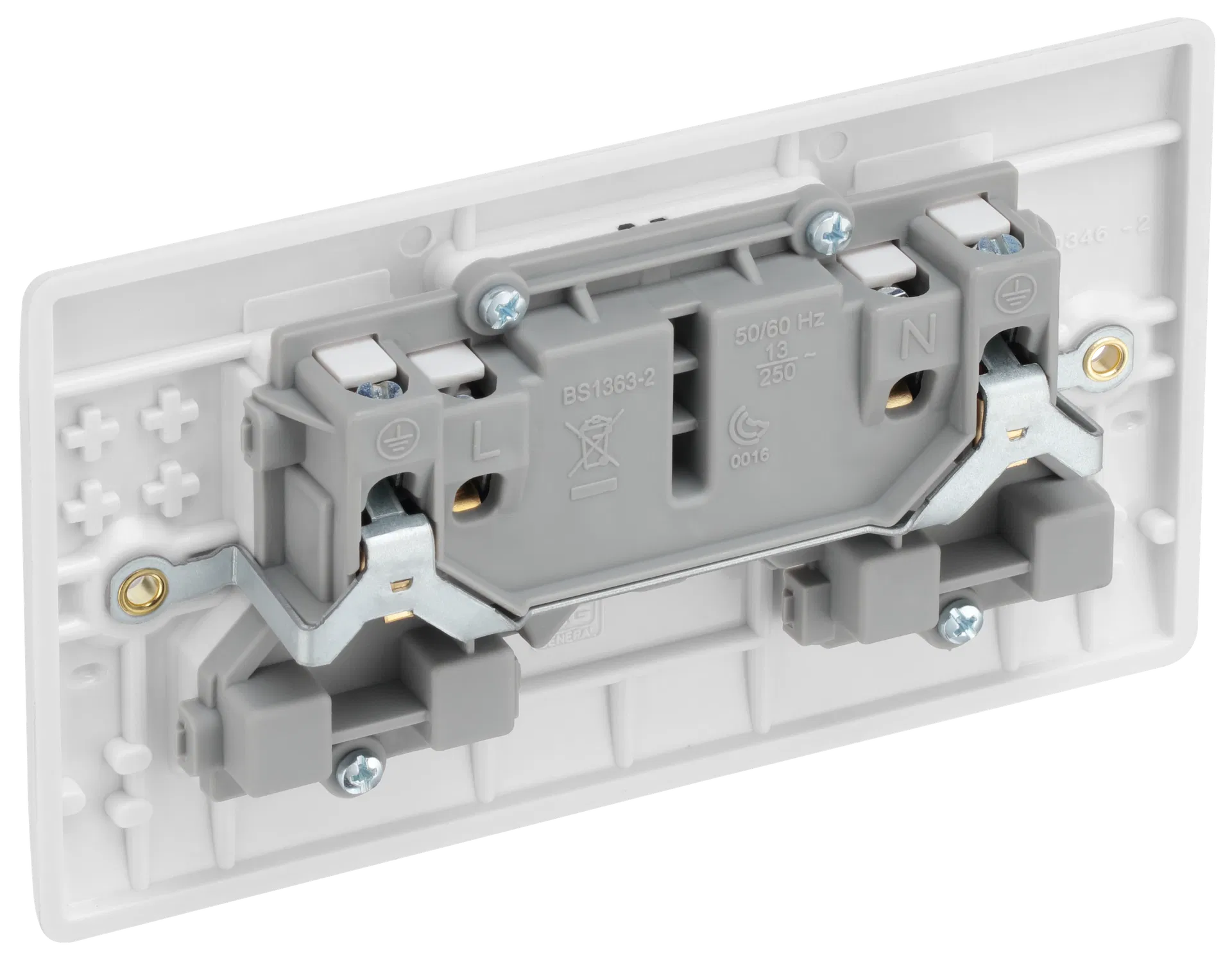

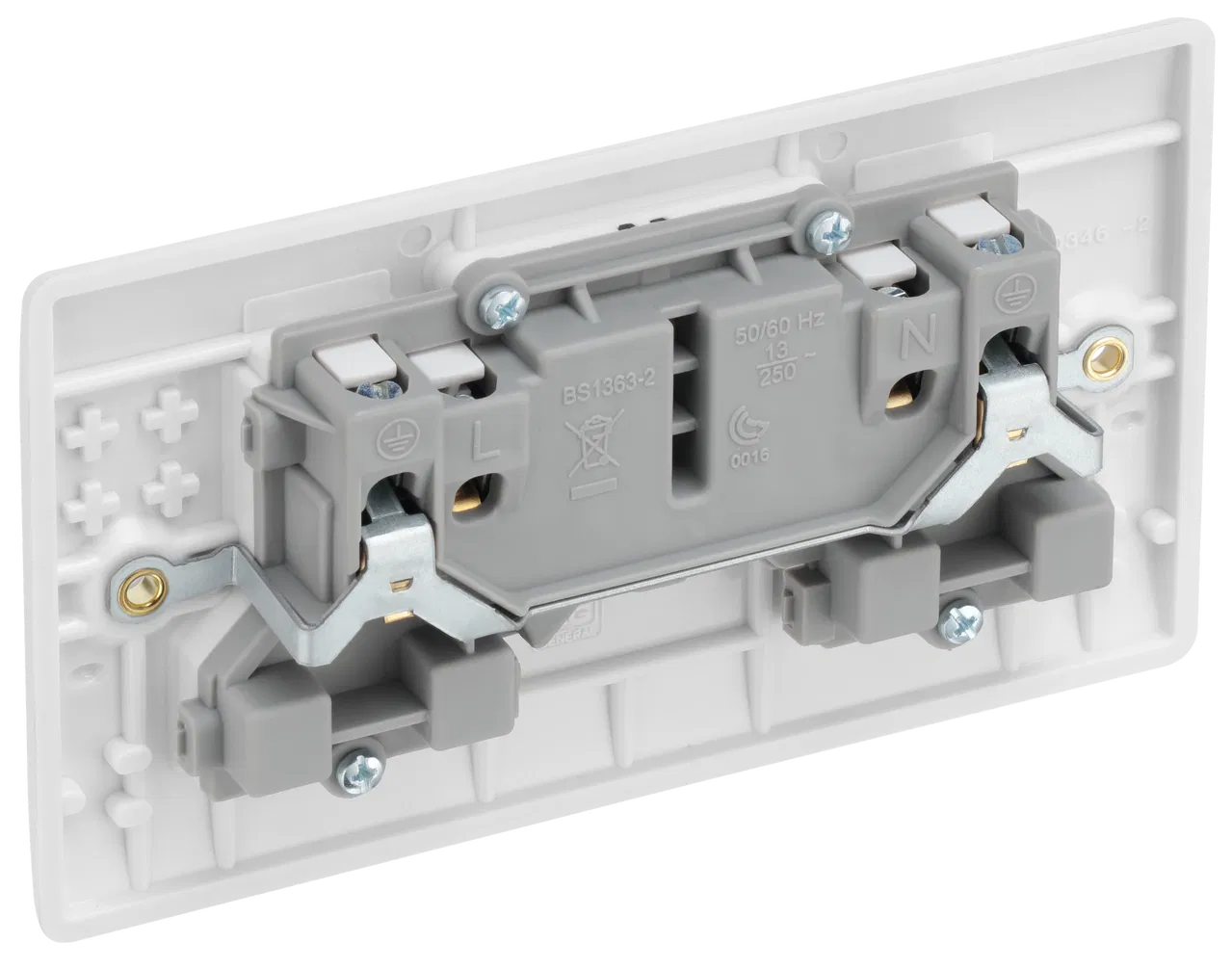

Angled in-line colour coded terminals provide easy access for quick installation
Captive screws prevent screw loss
Screw covers for sleek appearance
Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008
Minimum mounting box depth 25mm
Manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
Certified to BS1363-2
ASTA Licence number 1013
Product identifiers
Loyalty points:
1
Price range: £ 2.46 - £ 3.50 Excl. VAT
Specifications
| General Colour | White |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Front Plate Insert Colour | Not Applicable |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
