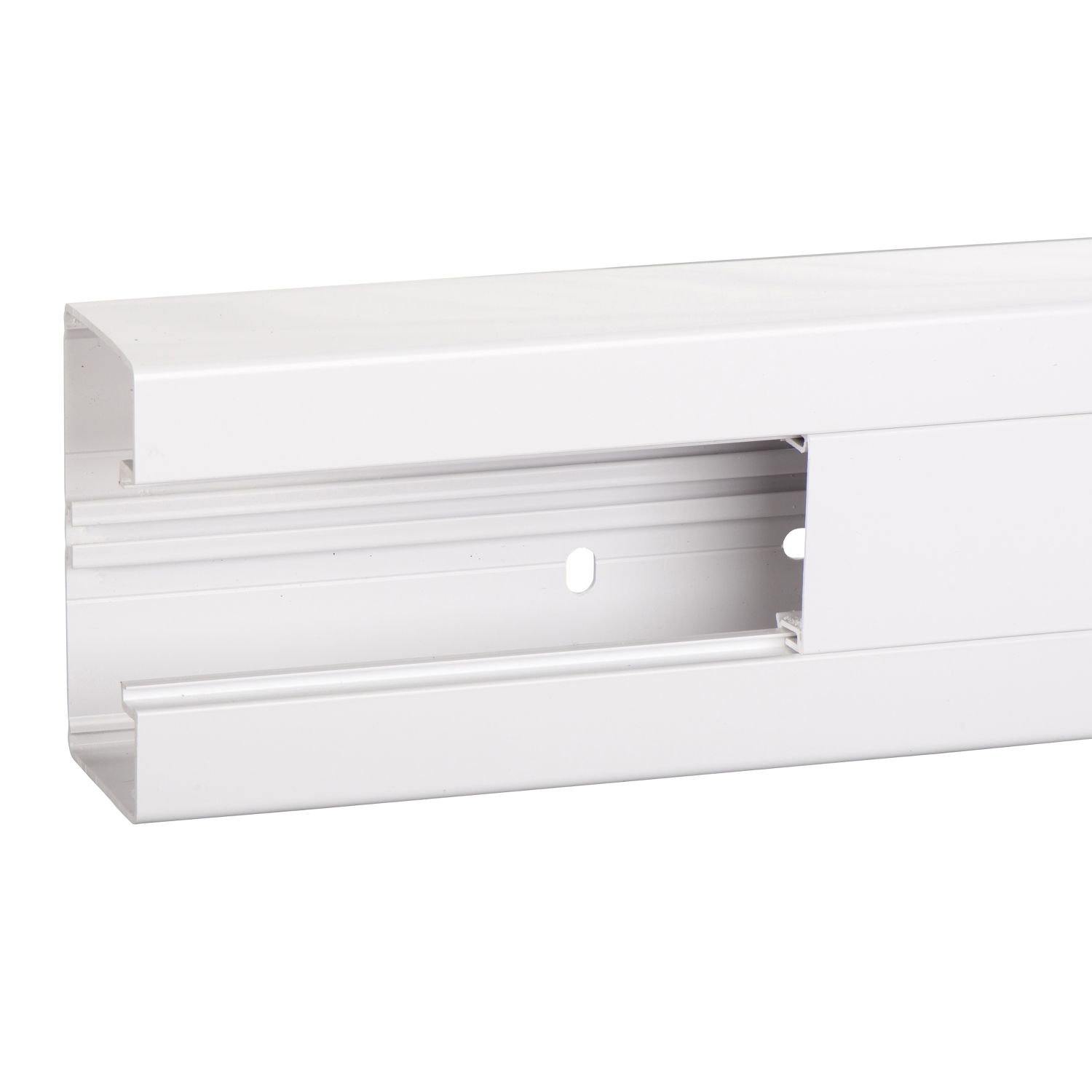

OptiLine 45 - installation trunking - 95x55 mm - PVC - polar white - 2000 mm
OptiLine 45 is a direct click-in installation system with a complete range of trunking, poles, posts, floor boxes and service boxes. The trunking in PVC is available in five sizes 75x55, 95x55, 140x55, 165x55 and 185x55mm. The trunking in Aluminum is available in four sizes 75x55, 140x55, 165x55 and 185x55mm. The dimensions of the product are (W) 55mm x (H) 95mm x (D) 2000mm. It is made of Polyvinyl chloride (PVC). The color of the product is polar white (RAL 9003). The Operating temperature is from -25°C up to +60°C. It reaches IP40 and IK07 degree of protection. The OptiLine 45 installation system gives the user reliable and flexible access to power, telephone and data, close to the workplace. Wide product type are available such as trunking, poles, posts, floor boxes and service boxes. The accessories are easy to handle, quick installed, safe and reliable. This device complies with the 73/23/EEC standard.
Product identifiers
SKU: ISM10200P
EAN: 3606480681585
GTIN: 3606480681585
MPN: ISM10200P
Price: £ 0.00 Excl. VAT
Categories
Features
|
Depth
|
55 mm
|
|
Width
|
95 mm
|
|
Colour
|
White
|
|
Length
|
2000 mm
|
|
Material
|
Plastic
|
|
Symmetric
|
TRUE
|
|
RAL-number
|
9003
|
|
Halogen free
|
FALSE
|
|
Cover width 1
|
45 mm
|
|
Cover width 2
|
-
|
|
Cover width 3
|
-
|
|
Covers included
|
TRUE
|
|
Impact strength
|
IK07
|
|
Material quality
|
Polyvinyl chloride (PVC)
|
|
Number of covers
|
1
|
|
Bottom perforation
|
TRUE
|
|
Surface protection
|
Untreated
|
|
With duct connector
|
FALSE
|
|
Useful cross section
|
4505 mm²
|
|
With protective foil
|
TRUE
|
|
Mounting method cover
|
Inner lying
|
|
Operating temperature
|
|
|
With cable fixing clip
|
FALSE
|
|
Anti-bacterial treatment
|
FALSE
|
|
Degree of protection (IP)
|
IP40
|
|
Number of plug-in partitions
|
1
|
|
Construction type rectangular
|
TRUE
|
|
Construction rear wall (inner side)
|
Continuous other profile
|
