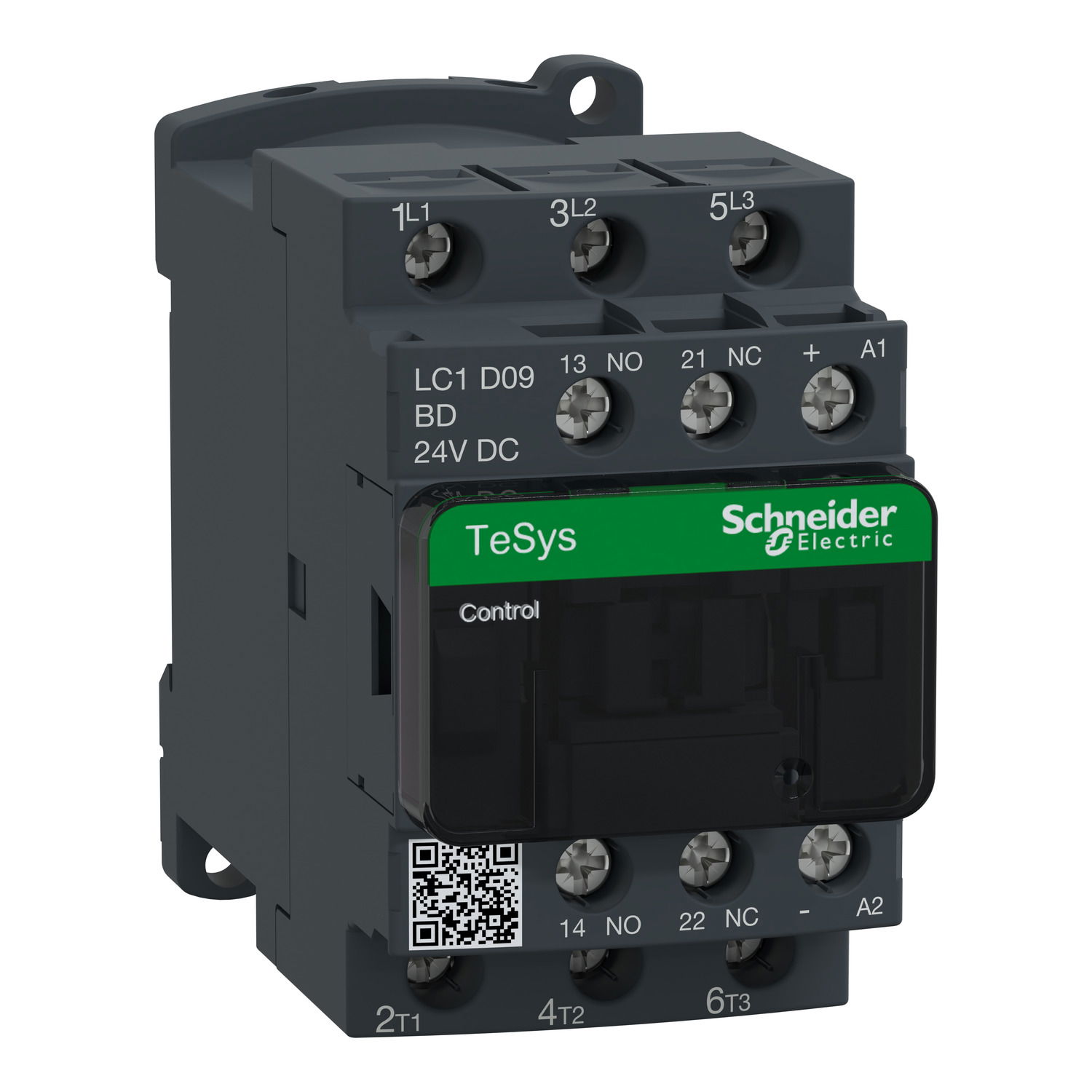

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 24 V DC coil
TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Product identifiers
SKU: LC1D09BD
EAN: 3389110353075
GTIN: 3389110353075
MPN: LC1D09BD
Loyalty points:
33
Price range: £ 51.14 - £ 80.07 Excl. VAT
Categories
Features
|
Depth
|
95 mm
|
|
Width
|
45 mm
|
|
Height
|
77 mm
|
|
Modular version
|
FALSE
|
|
Operating voltage AC 50 Hz
|
|
|
Operating voltage AC 60 Hz
|
|
|
Rated operation power NEMA
|
-
|
|
Voltage type for actuating
|
DC
|
|
Rated control supply voltage DC
|
|
|
Rated operation power at AC-3, 400 V
|
4 kW
|
|
Rated operation power at AC-4, 400 V
|
-
|
|
Rated control supply voltage AC 50 Hz
|
|
|
Rated control supply voltage AC 60 Hz
|
|
|
Rated operation current Ie at AC-1, 400 V
|
25 A
|
|
Rated operation current Ie at AC-3, 400 V
|
9 A
|
|
Rated operation current Ie at AC-4, 400 V
|
-
|
|
Type of electrical connection of main circuit
|
Screw connection
|
|
Number of normally open contacts as main contact
|
3
|
|
Number of normally closed contacts as main contact
|
0
|
|
Number of auxiliary contacts as normally open contact
|
1
|
|
Number of auxiliary contacts as normally closed contact
|
1
|
