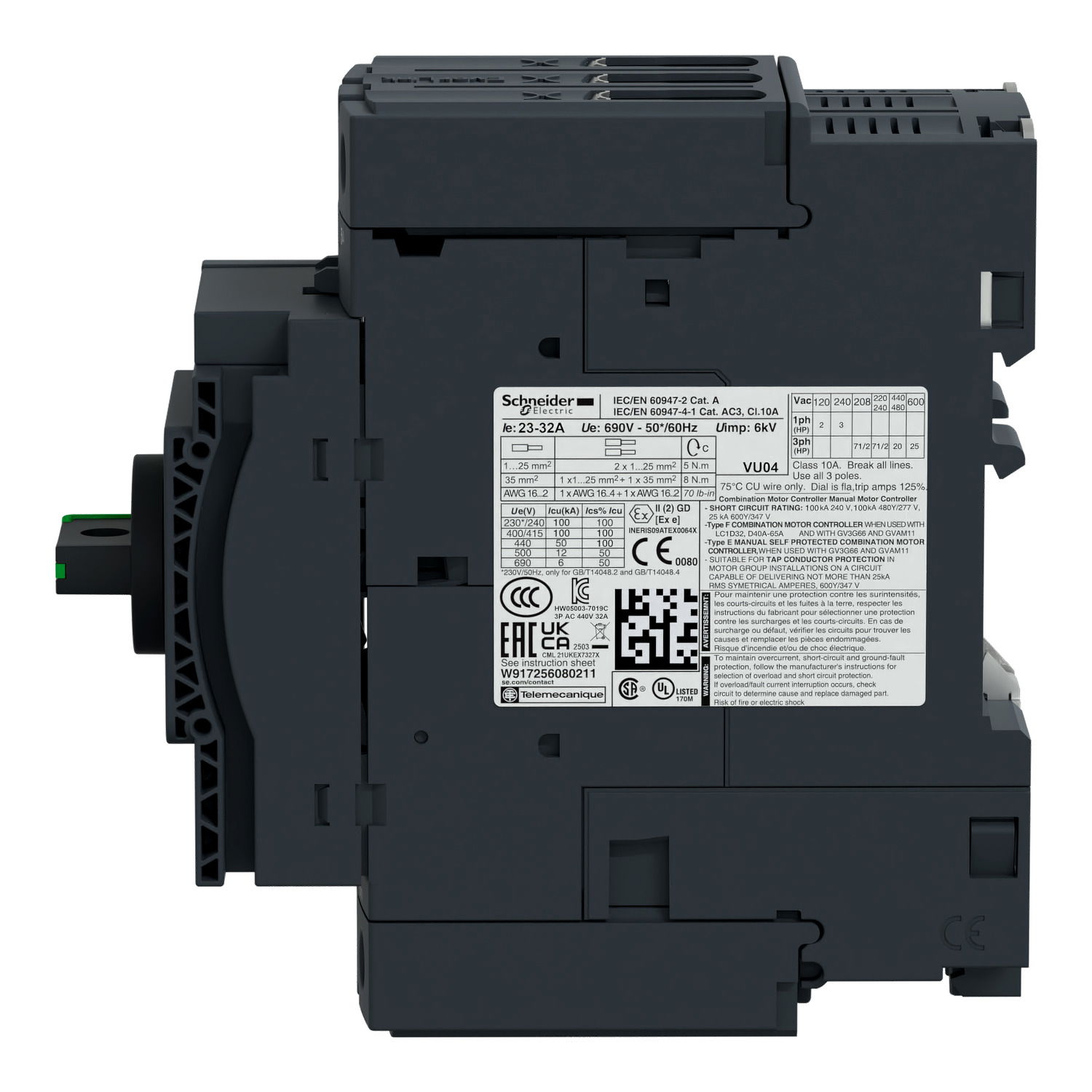

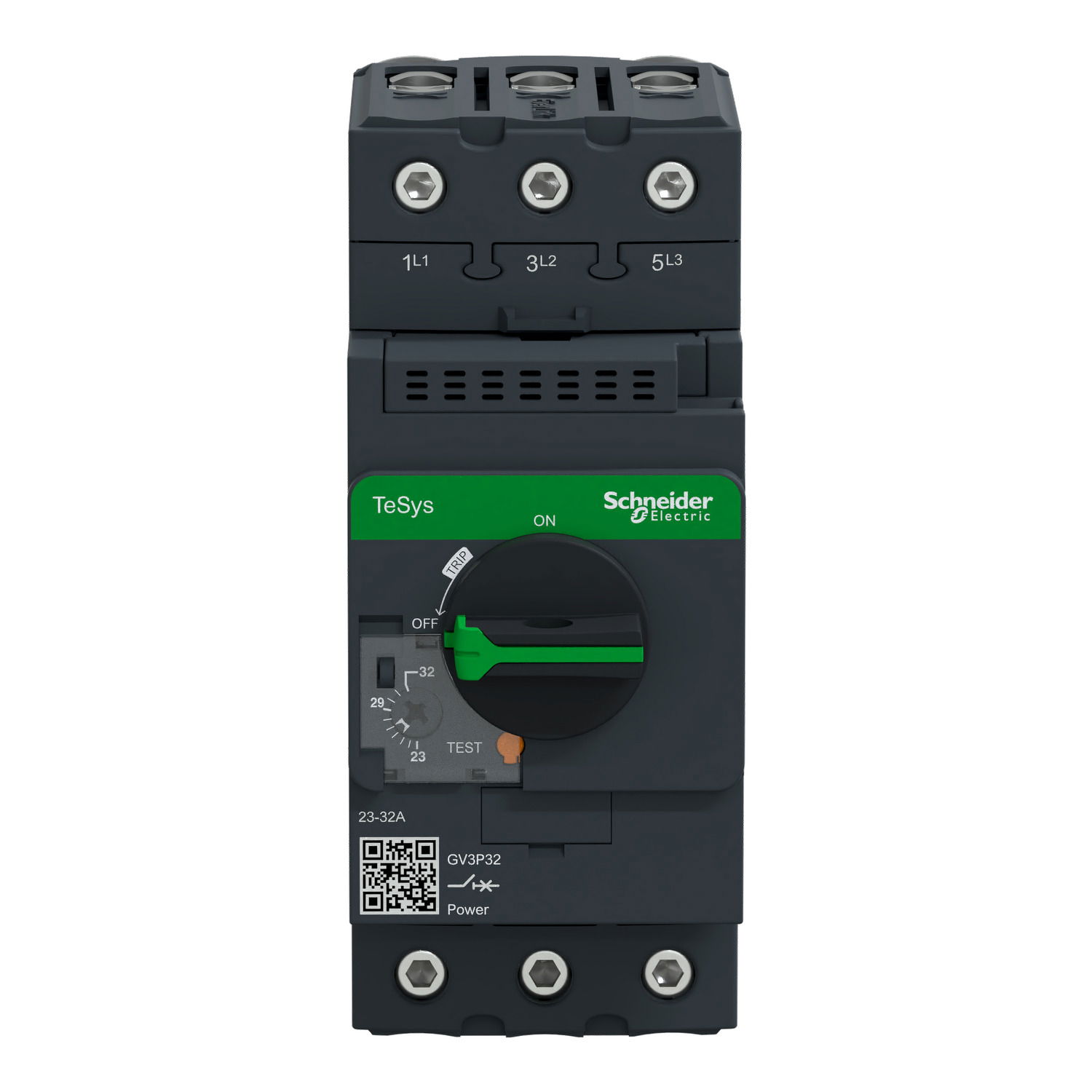

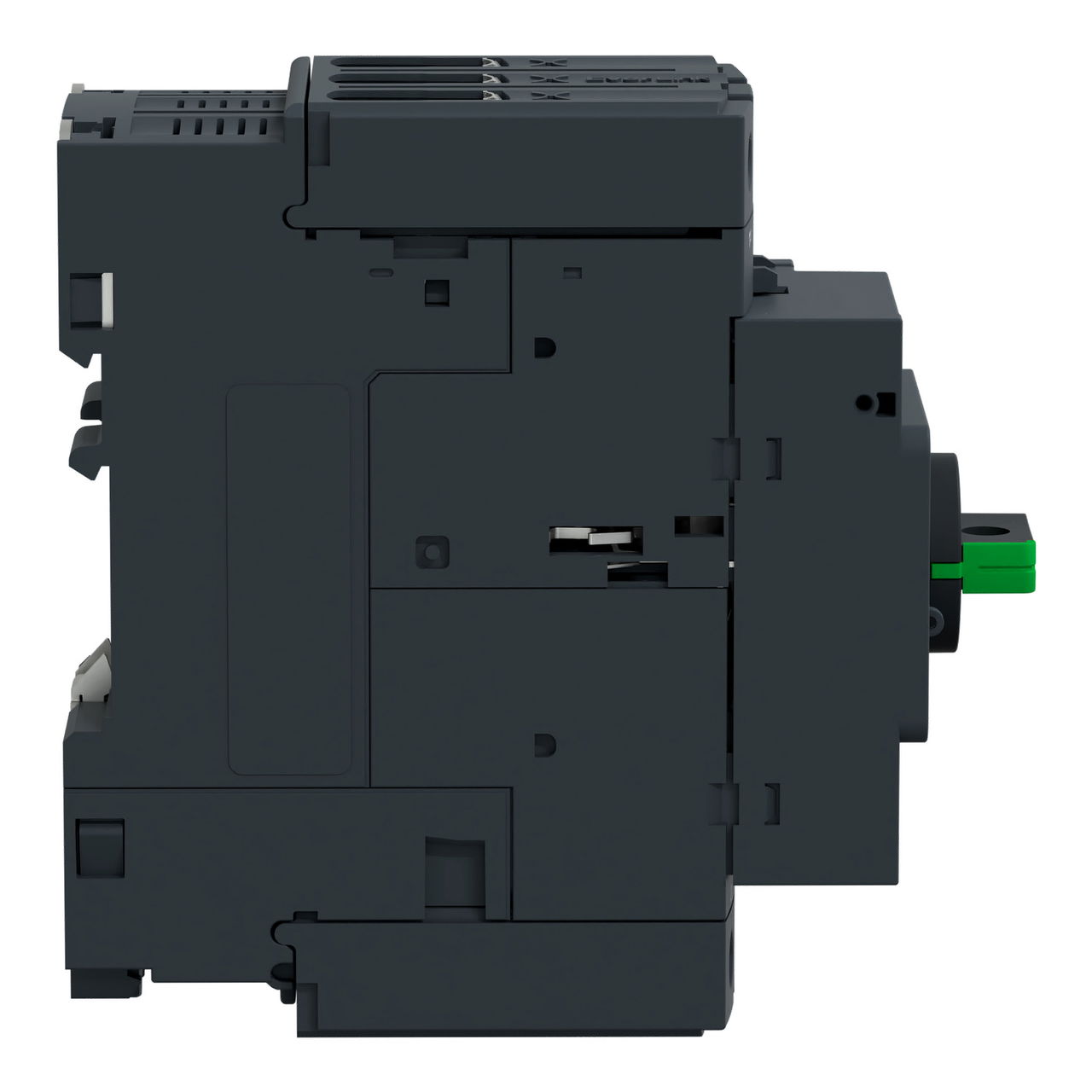

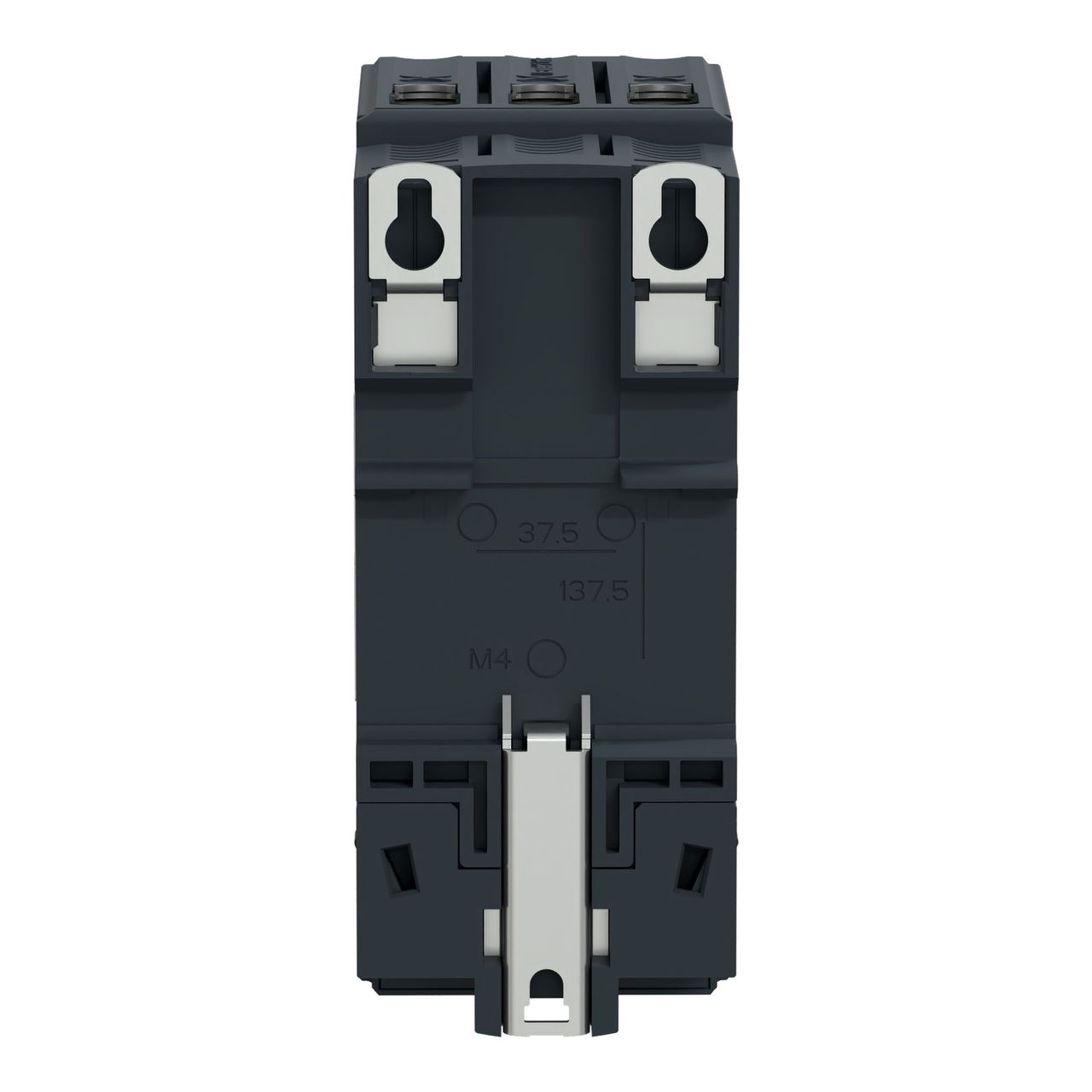

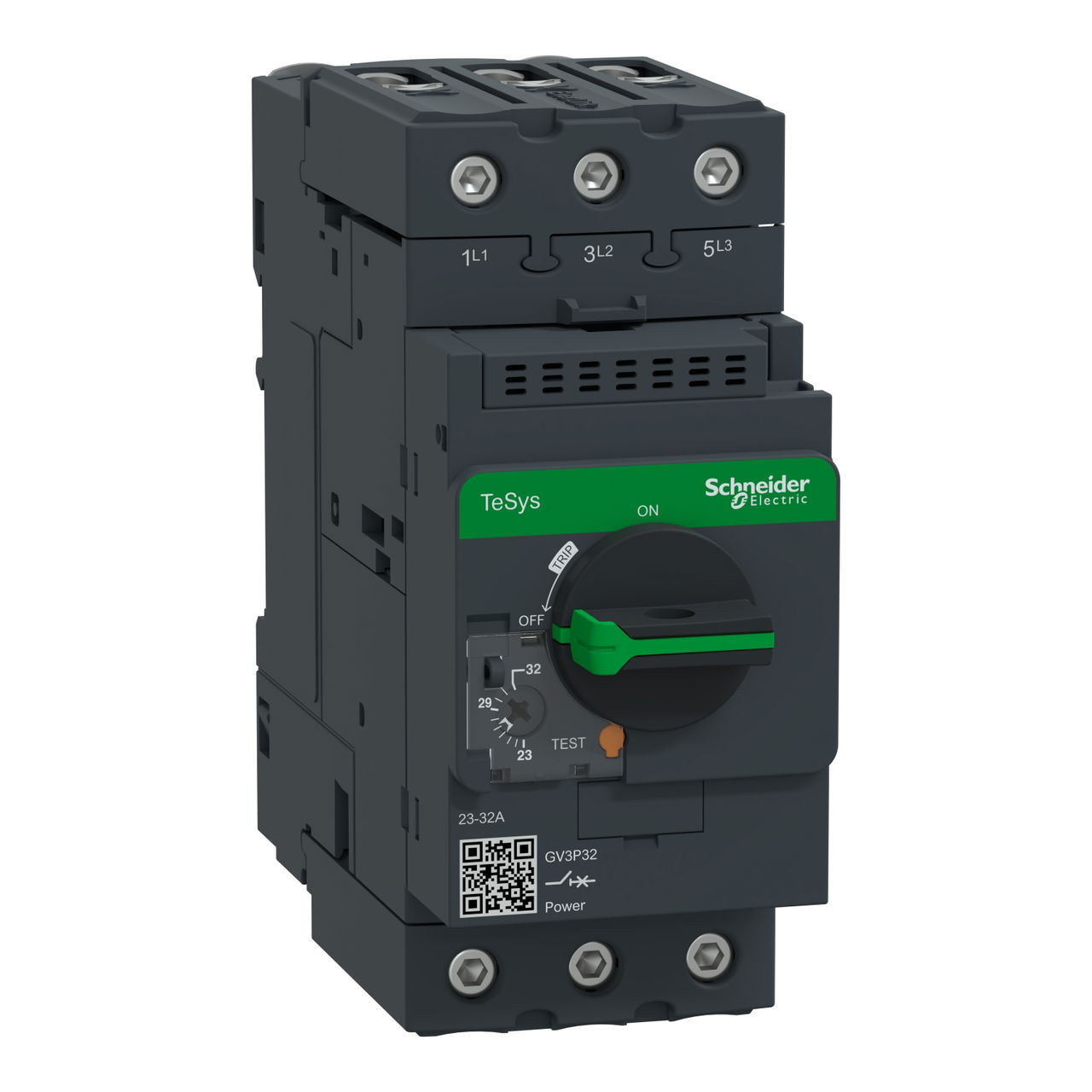

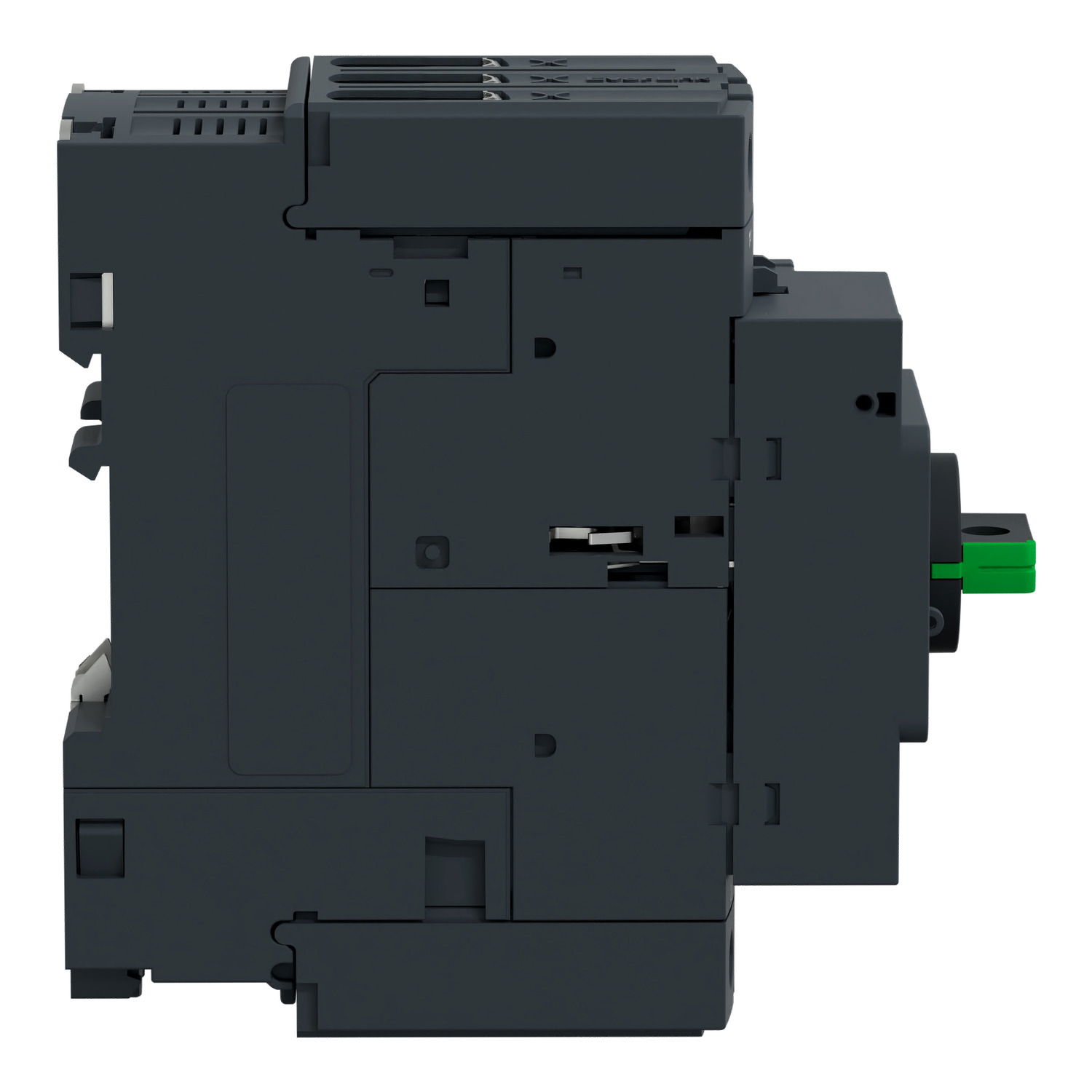

Motor circuit breaker, TeSys GV3, 3P, 23-32 A, thermal magnetic, EverLink terminals

Link copied
SKU
EAN
GTIN
MPN

Motor circuit breaker, TeSys GV3, 3P, 23-32 A, thermal magnetic, EverLink terminals by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 4 of them. Trade prices range from £125.99 to £203.17 excl. VAT. Voltimum+ members earn 25 points per unit.

TeSys GV motor circuit breaker, 3 poles (3P), 32A/690V, for 3-phase motor applications 15kW@400V. It provides a thermal-magnetic protection with a thermal setting range 23-32A, magnetic tripping at 14xIn, high breaking capacity Icu 100kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).

Voltimum+ Loyalty Programme Loyalty points: 25

Price range: £ 125.99 - £ 203.17 Excl. VAT

Specifications

Depth 136 mm
Width 55 mm
Height 132 mm
Power loss 8 W
Number of poles 3
Device construction Complete device in housing
Switch off technique Thermomagnetic
Phase failure sensitive yes
Type of control element Turn button
Rated permanent current Iu 32 A
With integrated auxiliary switch no
Rated operation power at AC-3, 230 V 7.5 kW
With integrated under voltage release no
Adjustment range undelayed short-circuit release
