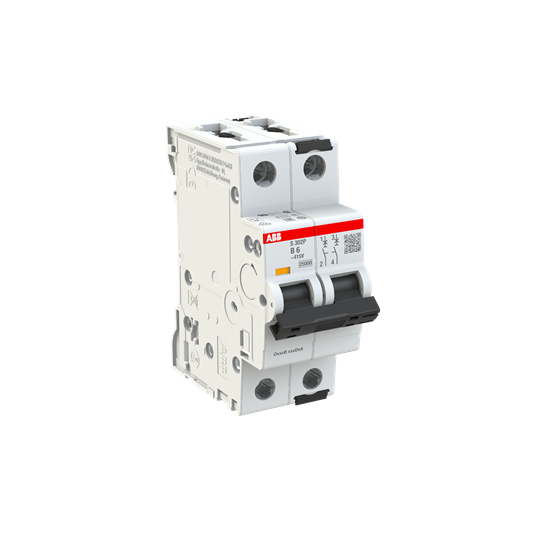

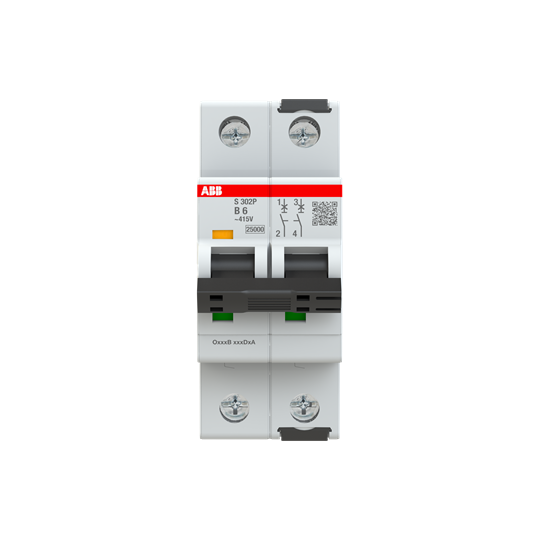

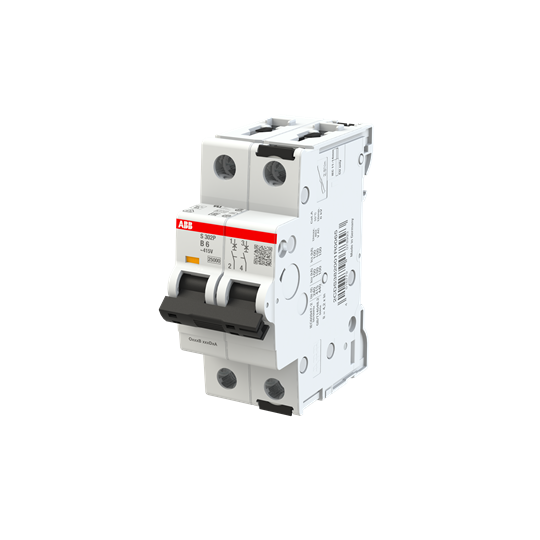

Miniature Circuit Breaker - S300P - 2P - 6 A - B - (415 V AC) 100 kA

Miniature Circuit Breaker - S300P - 2P - 6 A - B - (415 V AC) 100 kA – Image 2 of 3

Miniature Circuit Breaker - S300P - 2P - 6 A - B - (415 V AC) 100 kA – Image 3 of 3

1 / 3

Miniature Circuit Breaker - S300P - 2P - 6 A - B - (415 V AC) 100 kA

Name: Miniature Circuit Breaker - S300P - 2P - 6 A - B - (415 V AC) 100 kA
Brand: ABB
SKU: 2CDS382001R0065
Availability: InStock

Miniature Circuit Breaker - S300P - 2P - 6 A - B - (415 V AC) 100 kA by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Trade price £80.58 excl. VAT. Voltimum+ members earn 35 points per unit.

The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.

Product identifiers

SKU: 2CDS382001R0065

EAN: 4016779078993

GTIN: 4016779078993

MPN: S302P-B6

Loyalty points: 35

Price: £ 80.58 Excl. VAT

Specifications

Frequency
Power loss	2
Voltage type	AC/DC
Rated current	6
Rated voltage	415
Built-in depth	69
Explosion-proof	no
Pollution degree	3
Over voltage category	4
Current limiting class	-
Release characteristic	B
Number of poles (total)	2
Degree of protection (IP)	IP20
Number of protected poles	2
Flush-mounted installation	no
Rated insulation voltage Ui	500
Additional equipment possible	yes
Width in number of modular spacings	2
Ambient temperature during operating
Rated impulse withstand voltage Uimp	6
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	-
