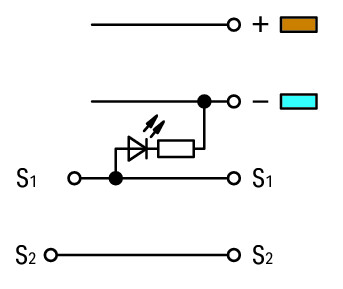

4-conductor sensor terminal block LED (red) for PNP-(high-side) switching sensors gray
4-conductor sensor terminal block; LED (red); for PNP-(high-side) switching sensors; with colored conductor entries; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
Product identifiers
SKU: 280-580/281-434
EAN: 4045454396565
GTIN: 4045454396565
MPN: 280-580/281-434
Price: £ 0.00 Excl. VAT
Categories
Features
|
Depth
|
63.5
|
|
Width
|
5
|
|
Colour
|
Grey
|
|
Height
|
90.5
|
|
Rated voltage
|
24
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Number of levels
|
1
|
|
Rated current In
|
20
|
|
Cross connectable
|
no
|
|
LED switching for
|
PNP
|
|
With PE connection
|
no
|
|
Colour light source
|
Red
|
|
Disconnect function
|
no
|
|
Operating temperature
|
105 - 105
|
|
Closing plate required
|
yes
|
|
With shield connection
|
no
|
|
Material insulation body
|
Thermoplastic
|
|
With power supply function
|
no
|
|
Internally connected stages
|
no
|
|
Explosion-tested version 'Ex e'
|
no
|
|
Type of electrical connection 1
|
Spring clamp connection
|
|
Type of electrical connection 2
|
Spring clamp connection
|
|
Number of clamp positions per level
|
7
|
|
Connectable conductor cross section solid-core
|
0.08 - 2.5
|
|
Connectable conductor cross section multi-wired
|
0.08 - 2.5
|
|
Inflammability class of insulation material according to UL94
|
V0
|
|
Connectable conductor cross section fine-strand with cable end sleeve
|
0.25 - 1.5
|
|
Connectable conductor cross section fine-strand without cable end sleeve
|
0.08 - 2.5
|
