Modular timing relay, 8 A, 1 CO, 1 s..100 h, time delay, 12...240 V AC/DC
1 / 9
Popularity
Top 60%
More about Popularity
Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
Modular timing relay, 8 A, 1 CO, 1 s..100 h, time delay, 12...240 V AC/DC
Modular timing relay, 8 A, 1 CO, 1 s..100 h, time delay, 12...240 V AC/DC by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 2 more. It is currently in stock at 4 of them. Trade prices range from £39.27 to £63.02 excl. VAT. Voltimum+ members earn 8 points per unit.

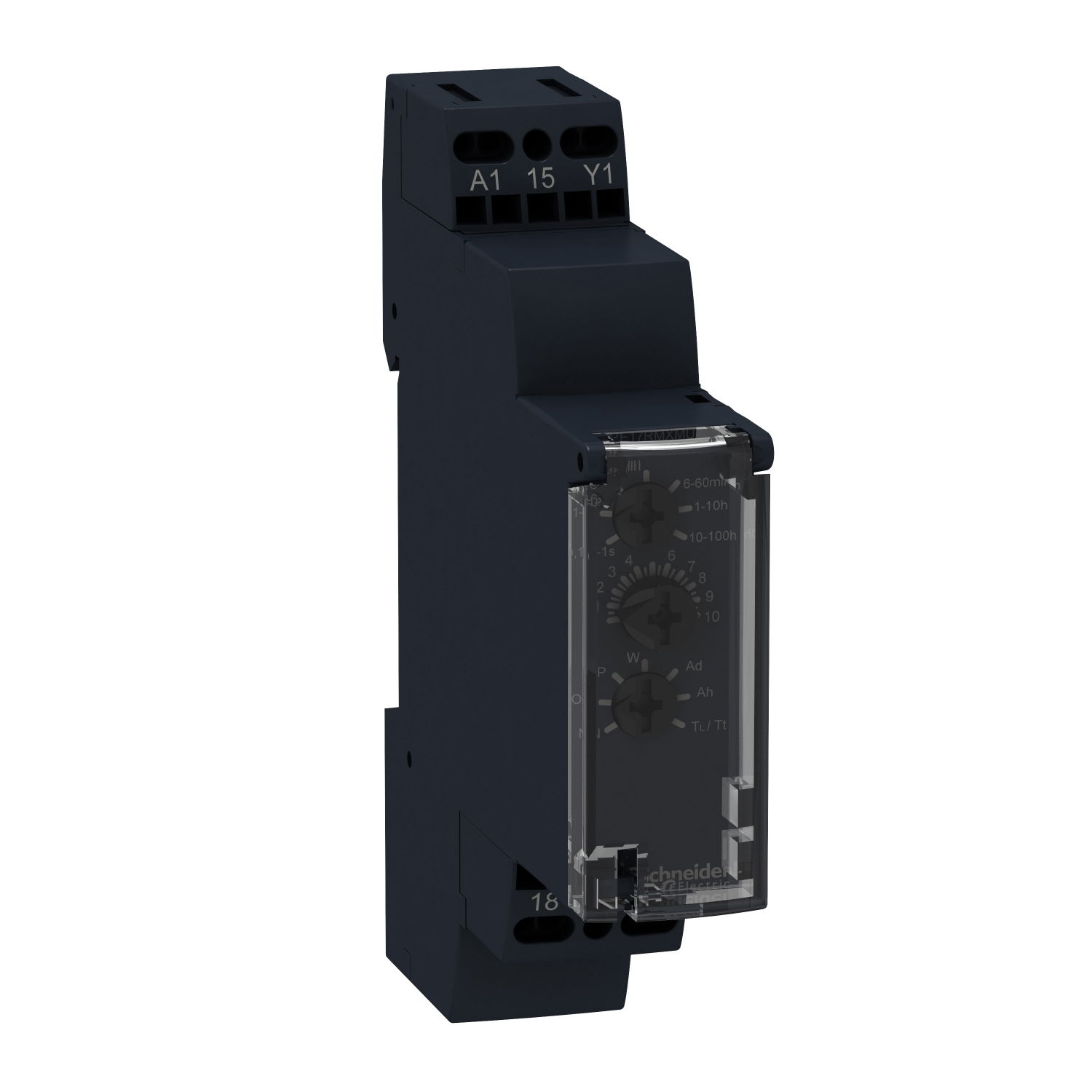

This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 24V DC, 24V to 240V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Product identifiers
SKU: RE17RMXMU
EAN: 3606480552786
GTIN: 3606480552786
MPN: RE17RMXMU
Loyalty points:
8
Price range: £ 39.27 - £ 63.02 Excl. VAT
Categories
ETIM group
Specifications
| Depth | 72 mm |
| Width | 17.5 mm |
| Height | 90 mm |
| Time range | |
| Nominal current | 8 A |
| Material contact | - |
| Function star-delta | no |
| Complete with socket | - |
