CP-E 24/5.0 Power supply In:115/230VAC Out: 24VDC/5A
1 / 3
Popularity
Top 30%
More about Popularity
Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
CP-E 24/5.0 Power supply In:115/230VAC Out: 24VDC/5A
CP-E 24/5.0 Power supply In:115/230VAC Out: 24VDC/5A by ABB is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £143.11 to £144.54 excl. VAT. Voltimum+ members earn 79 points per unit.

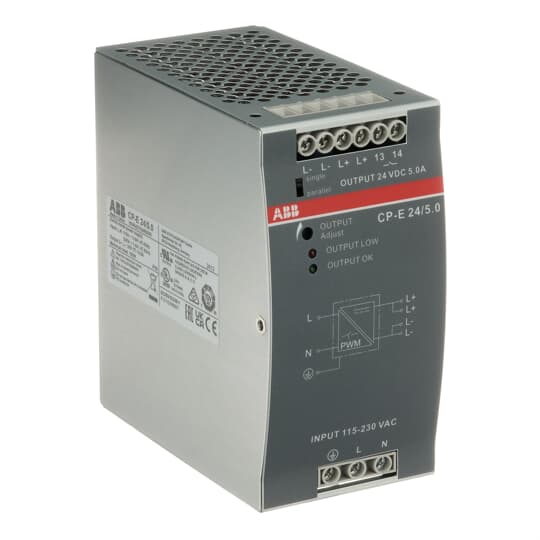

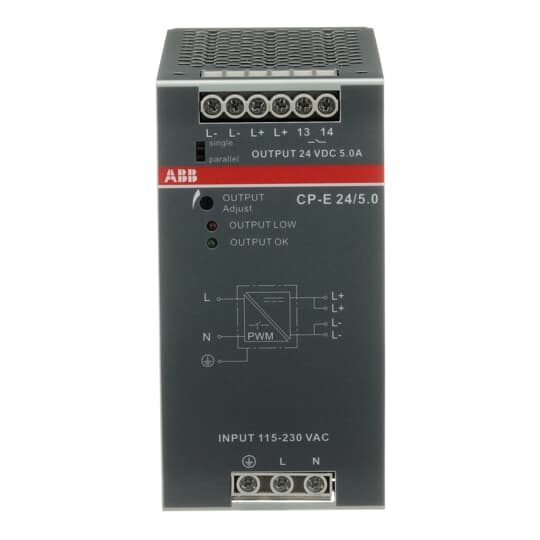

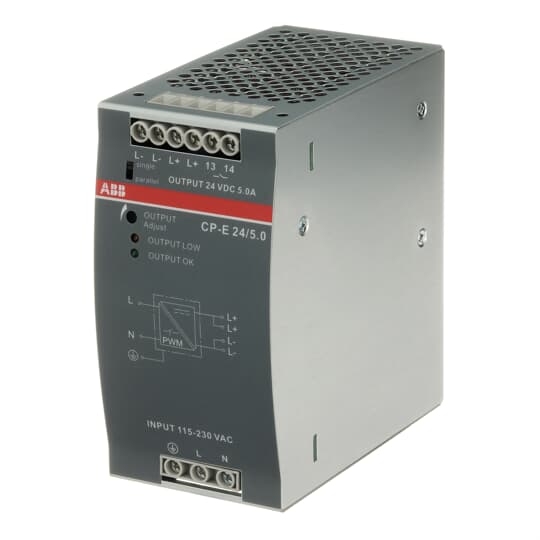

The CP-E 24/5.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-132 V AC, 180-264 V AC and 210-375 V DC, rated input voltage is 115 or 230 V AC (auto select). The rated output power is 120 W, rated output current is 5 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides an U/I output characteristic. In order to increase capacity, up to 3 units can be connected in parallel. A redundancy unit is available as accessory.
Product identifiers
SKU: 1SVR427034R0000
EAN: 4016779669689
GTIN: 4016779669689
MPN: CP-E 24/5.0
Loyalty points:
79
Price range: £ 143.11 - £ 144.54 Excl. VAT
Specifications
| Depth | 123.6 |
| Width | 63.2 |
| Height | 123.6 |
| Stabilized | yes |
| Power output | 120 |
| Built-in width | 63.2 |
| Built-in height | 123.6 |
| Modular version | no |
