R12-01

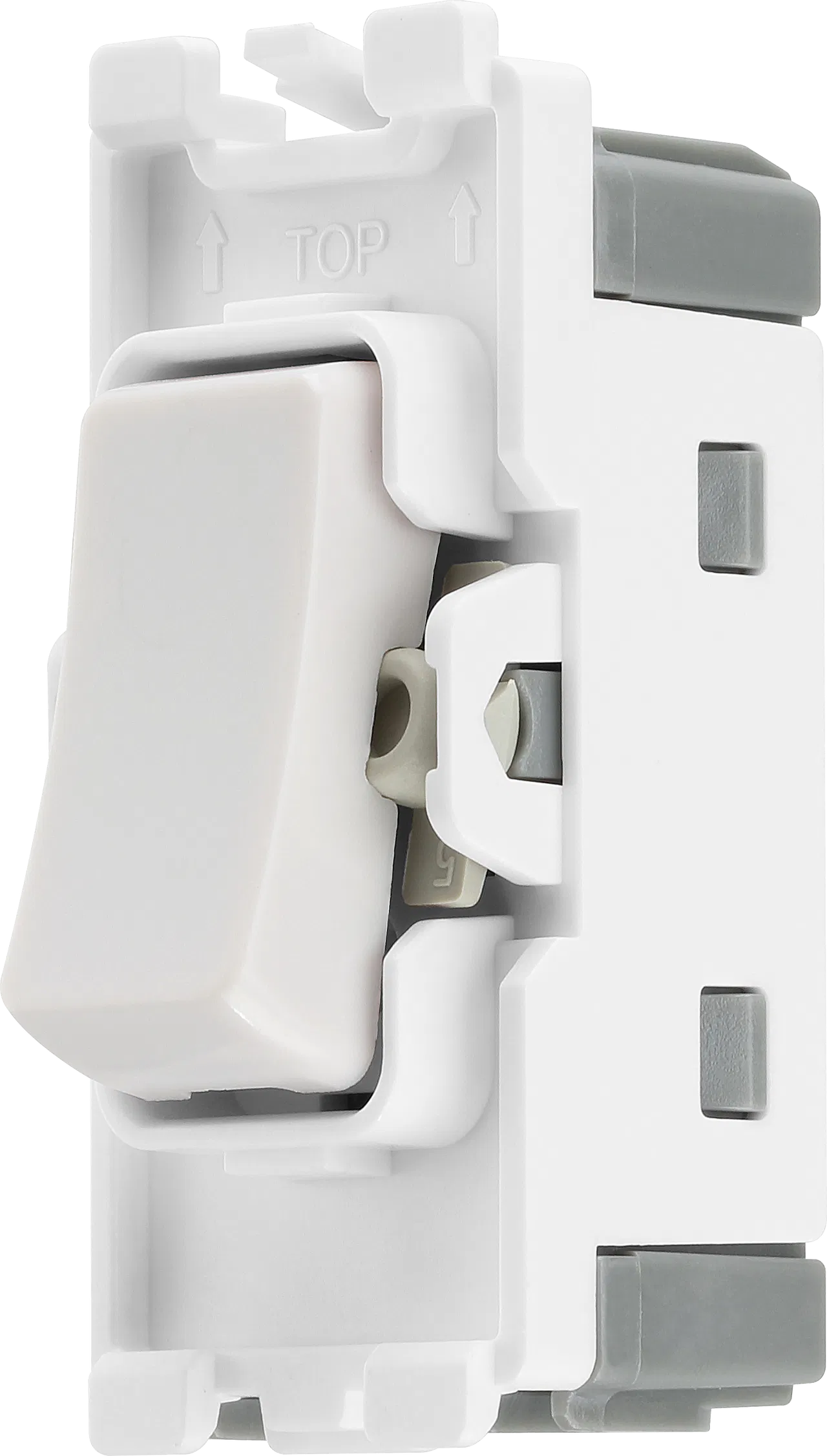

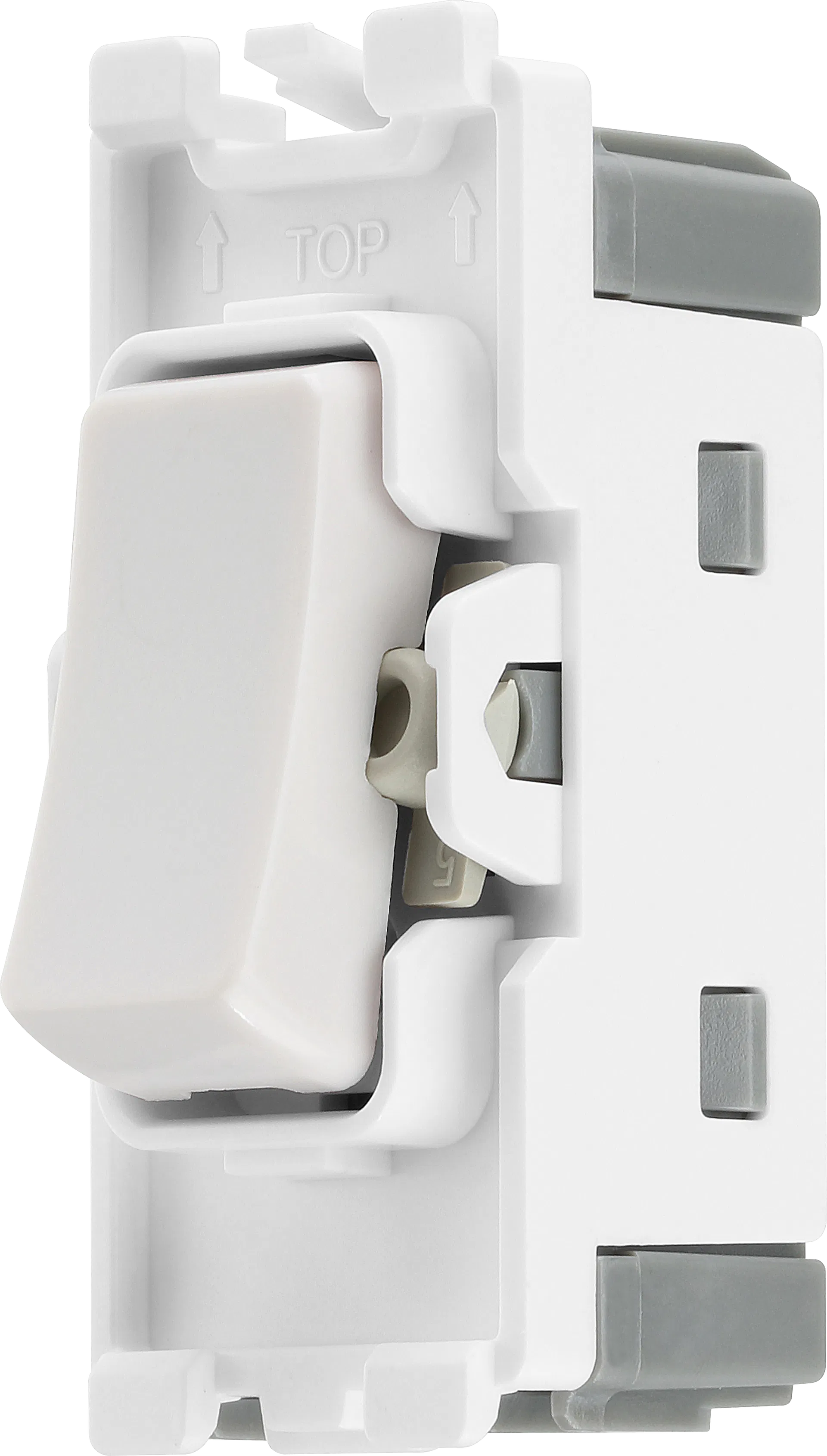

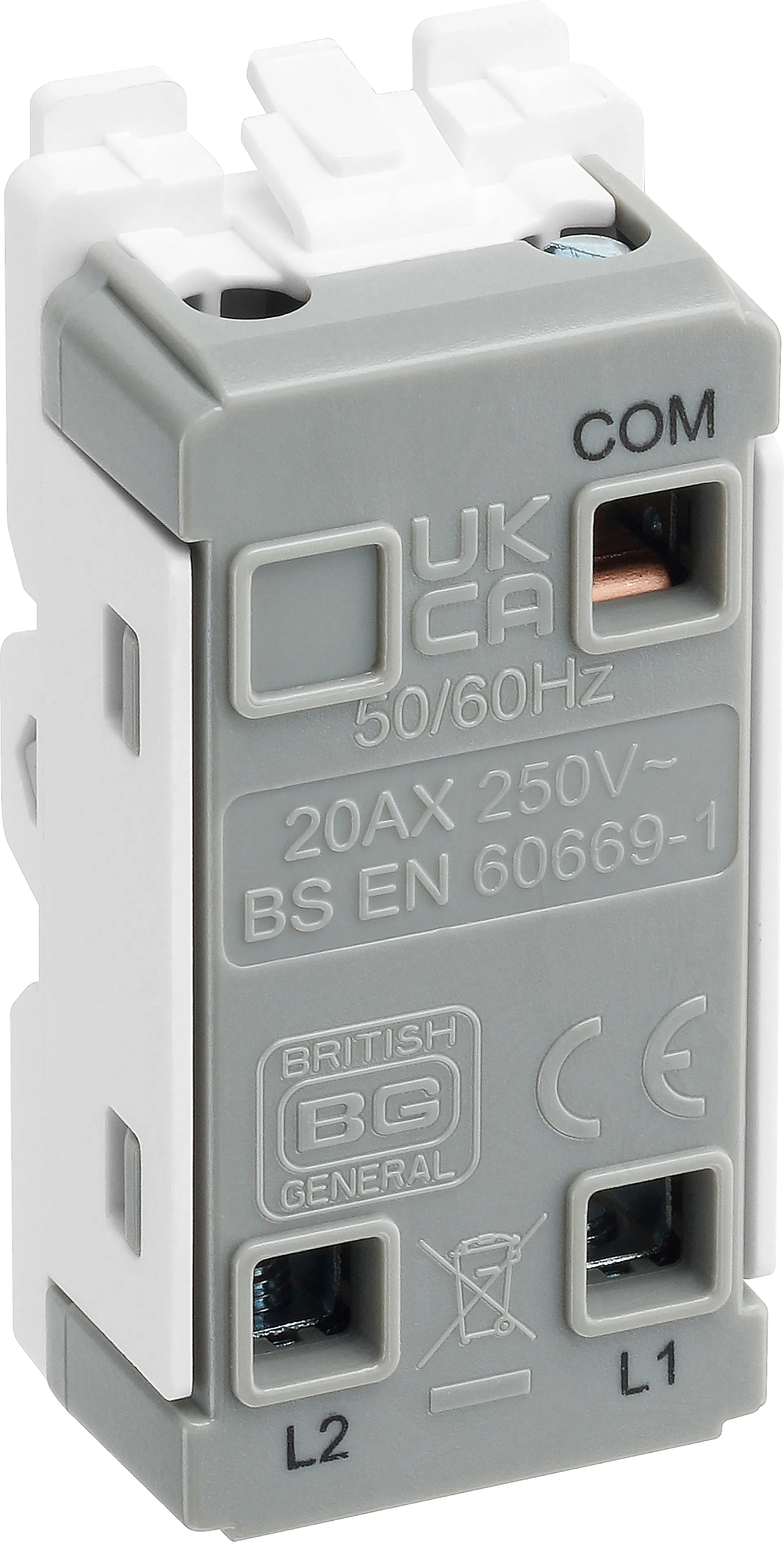

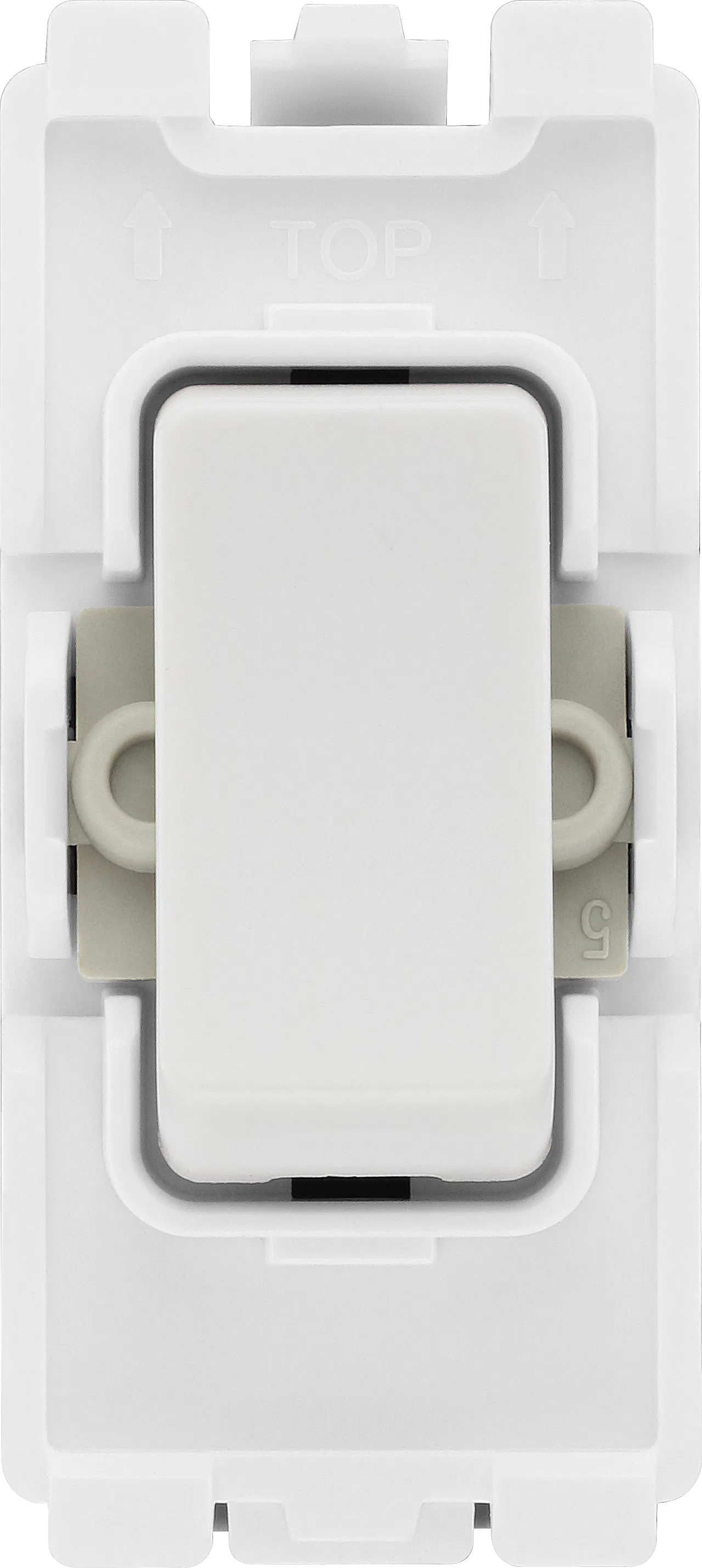

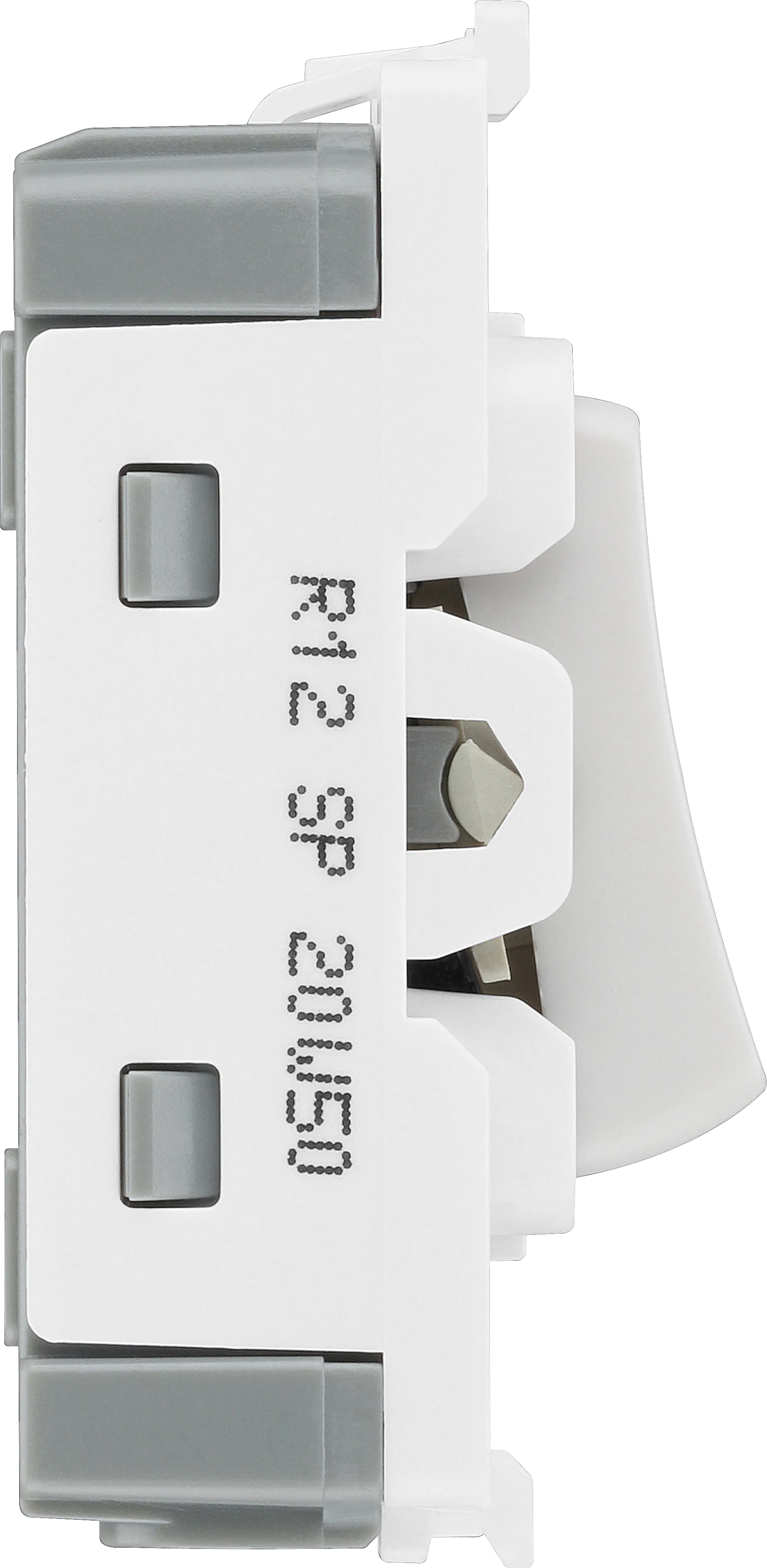

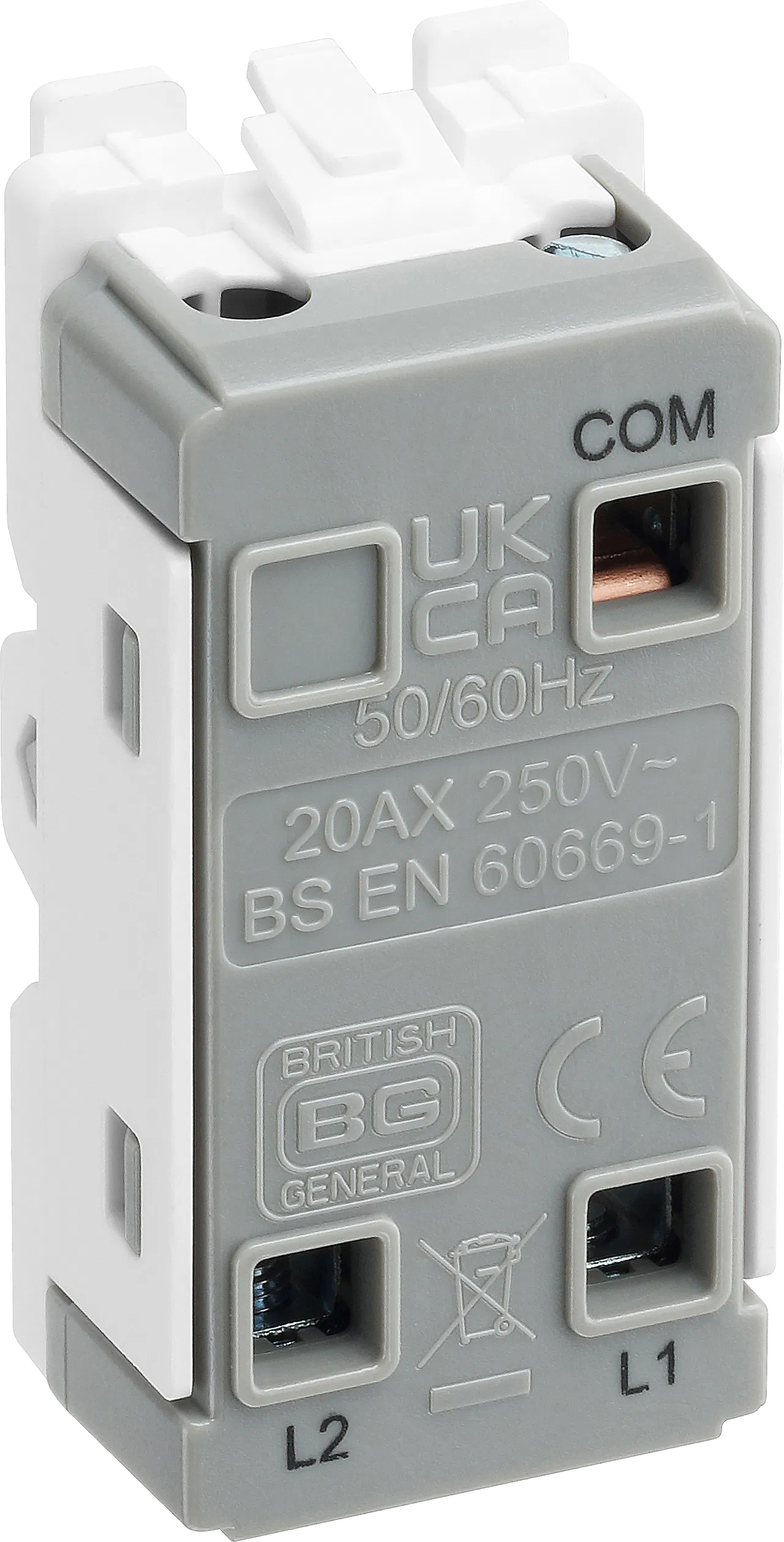

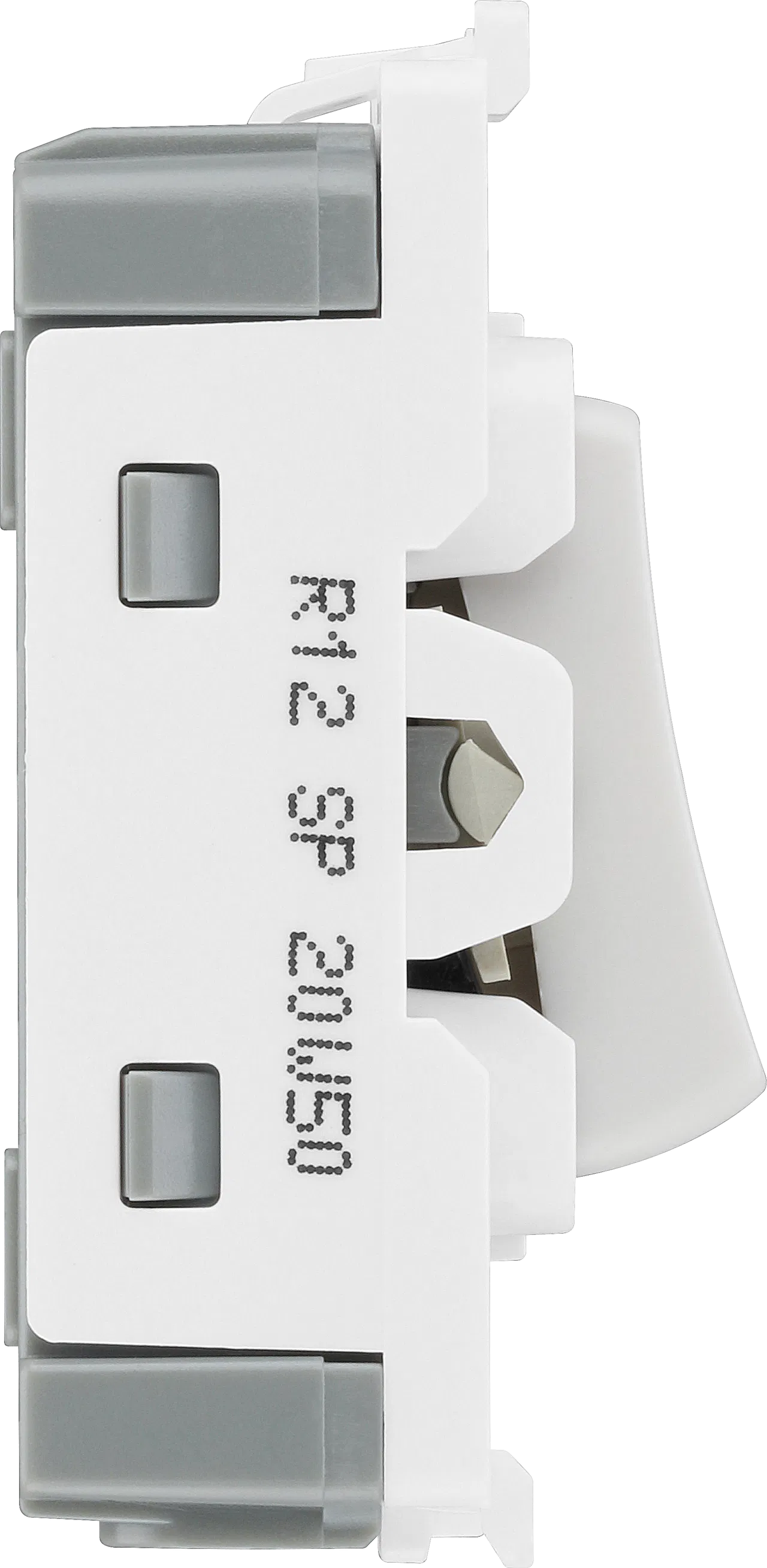

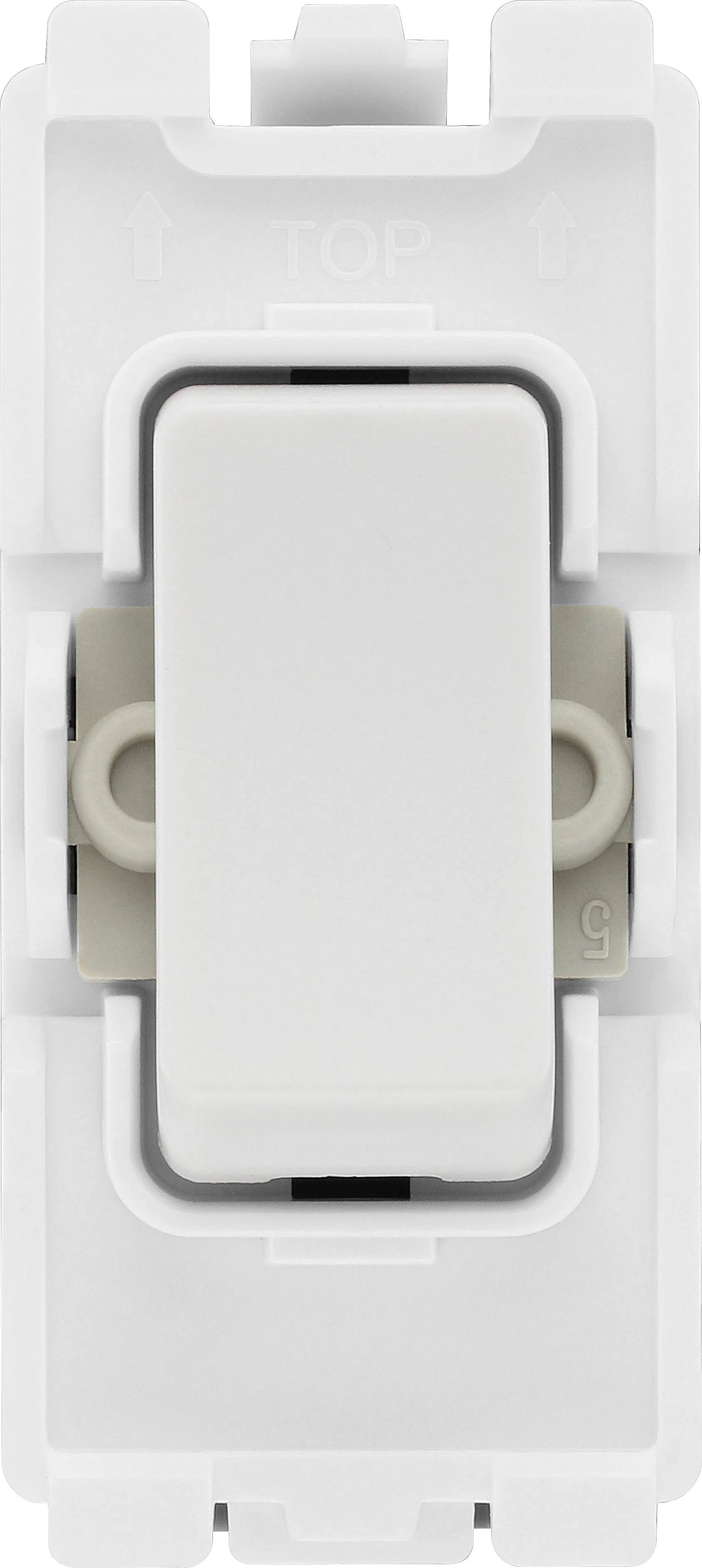

BG Grid 20A Switch Module 2 Way, Single Pole, White
Simple secure 'locate & clip' fitting to frame
2 way switching allows for a second switch position in a circuit
Captive backed out terminal screws for fast installation
Module to be installed with Grid frame and plate
Single pole
Alternative legend rocker covers available
Product identifiers
SKU: R12-01
MPN: R12-01
Loyalty points:
1
Price range: £ 2.25 - £ 3.96 Excl. VAT
Specifications
| General Colour | White |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 4 x 1.0mm², 4 x 2.5mm², 2 x 2.5mm², 1 x 4mm² |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | N/A |
