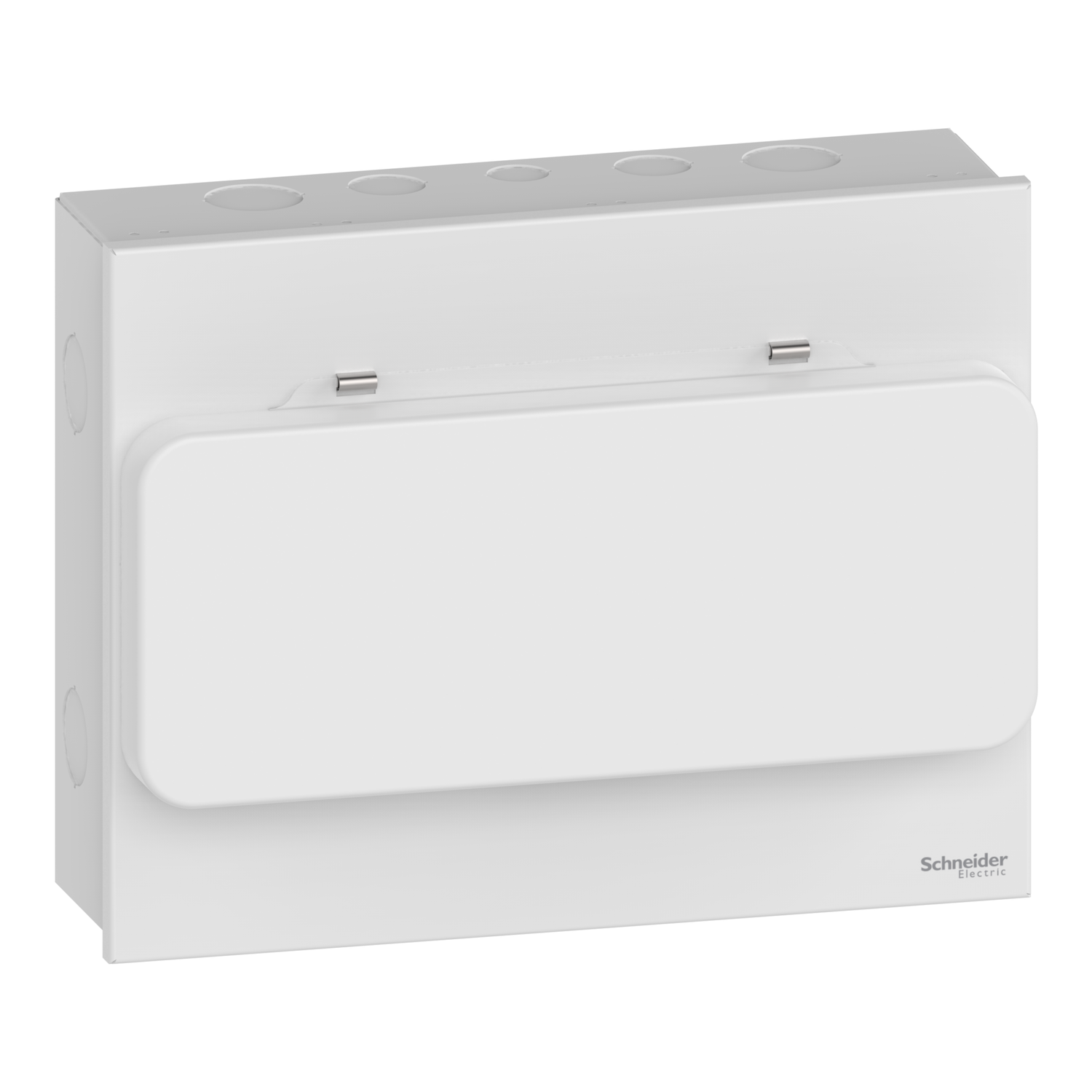

Metal compact consumer unit, Easy9, 10 way

This Easy9 product is a surface mounted metal compact consumer unit is Fexible and Easy to Install. The rated current can be up to 100A. The number of ways is 10. Incomer position on left or right brings flexibility to your installations. Earth and neutral terminal block and busbar are provided. It has also multiple cable entry knockouts. Its removable DIN rail brings in the adaptability to organize the cables in position before mounting the devices The dimensions are (W) 243mm x (H) 312mm x (D) 112.1mm. The product weight is 2.5 kg. The color of the consumer unit is white (RAL9003). The enclosure material is made of high quality CRCA sheet with epoxy powder coating to provide safety and corrosion resistance The degree of protection is IP3X with closed door and IP2X with open door. According to IEC 62262 standard, the degree of protection is IK05. This consumer unit complies with BS 7671 ed.18 amendment 3 and BS EN 61439-3 standards. Approved marking as per UKCA.
