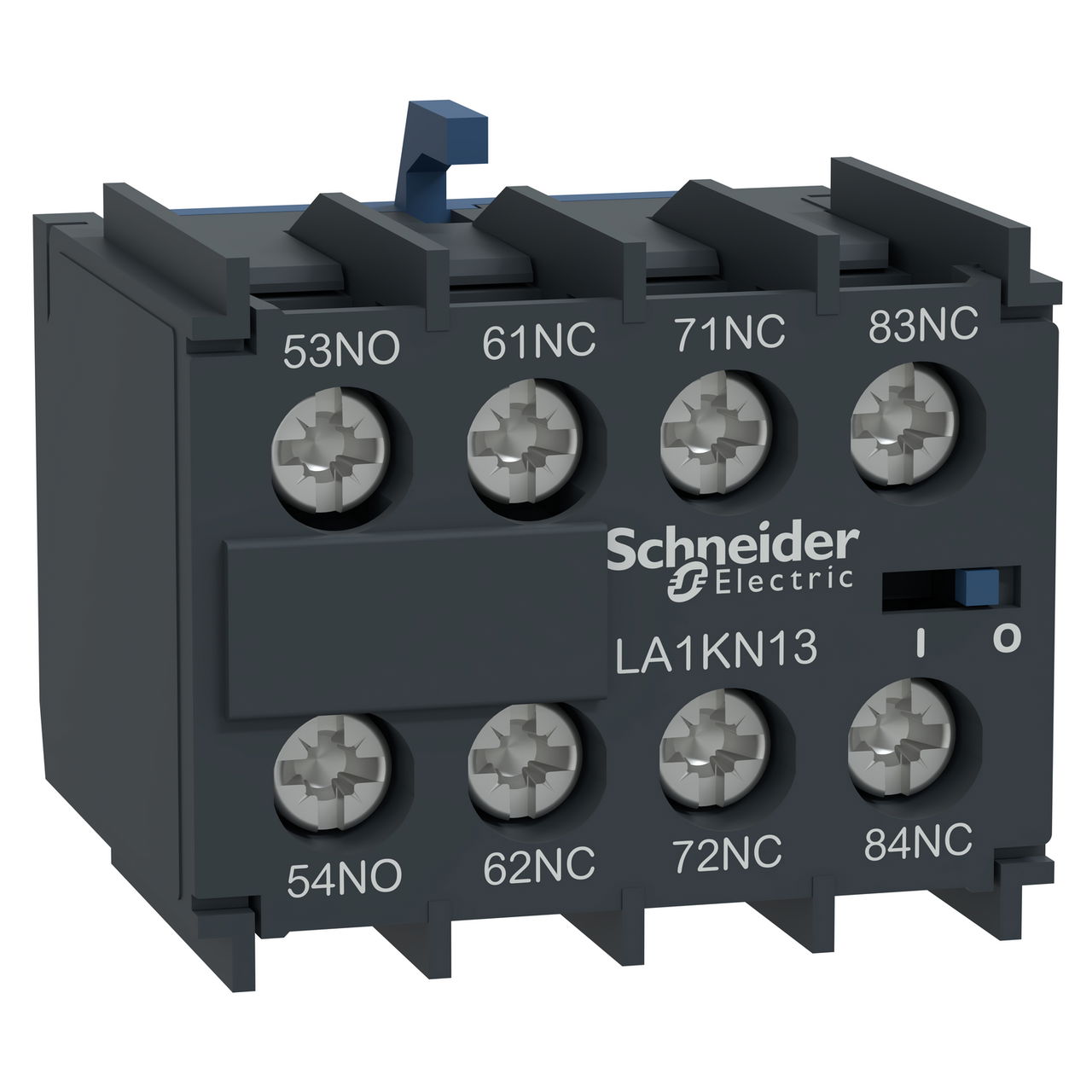

TeSys K - Auxiliary contact block - 1 NO + 3 NC - screw-clamps terminals
TeSys K instantaneous auxiliary contact block, for contactors LC.K, LP.K, CA.K with screw clamp terminals (except LP4K, LP5K, CA4K). It provides 1NO+3NC contacts rated up to 10A 690V AC, connection by screw clamp terminals. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC),
Product identifiers
SKU: LA1KN13
EAN: 3389110500134
GTIN: 3389110500134
MPN: LA1KN13
Loyalty points: 7
Price range: £ 11.22 - £ 17.57 Excl. VAT
Categories
Features
|
Model
|
Clip-on
|
|
Lamp holder
|
-
|
|
Mounting method
|
Front fastening
|
|
Type of electric connection
|
Screw connection
|
|
Number of fault-signal switches
|
0
|
|
Number of contacts as change-over contact
|
0
|
|
Rated operation current Ie at AC-15, 230 V
|
10 A
|
|
Number of contacts as normally open contact
|
1
|
|
Number of contacts as normally closed contact
|
3
|
