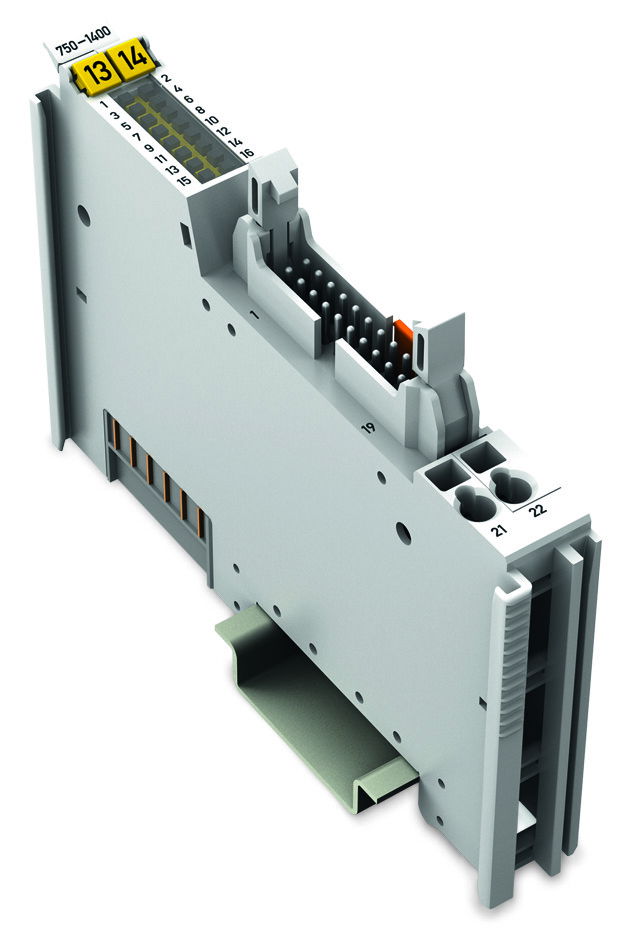

16-channel digital input 24 VDC 3 ms light gray
Wago

16-channel digital input 24 VDC 3 ms light gray

16-channel digital input; 24 VDC; 3 ms; Ribbon cable

Product identifiers

SKU: 750-1400
EAN: 4045454880590
GTIN: 4045454880590
MPN: 750-1400

Voltimum+ Loyalty Programme Loyalty points: 2

Price: £ 122.35 Excl. VAT

Categories

Electrical Cables & Wiring Specialist Cables

Specifications

Depth 74.1
Width 12
Height 100
IO link master no
Output current -
System accessory yes
Supply voltage DC 24 - 24
Radio standard GSM no
Radio standard UMTS no
Type of digital output Other
With optical interface no
Supply voltage AC 50 Hz
Number of digital inputs 16
Degree of protection (IP) IP20
Number of digital outputs 0
Radio standard WLAN 802.11 no
Suitable for rail mounting yes
Number of HW-interfaces USB 0
Supporting protocol for ASI no
Supporting protocol for KNX no
Time delay at signal change 3 - 3
Digital outputs configurable no
Number of interfaces PROFINET 0
Voltage type (supply voltage) DC
Number of HW-interfaces RS-232 0
Number of HW-interfaces RS-485 0
Supporting protocol for SERCOS no
Supporting protocol for SUCONET no
Number of HW-interfaces parallel 0
Supporting protocol for EtherCAT no
Supporting protocol for PROFIBUS no
Appendant operation agent (Ex ib) no
Supporting protocol for DeviceNet no
Explosion safety category for dust ATEX dust-ex-protection, Cat. 3D
Supporting protocol for EtherNet/IP no
Supporting protocol for SafetyBUS p no
Supporting protocol for PROFINET CBA no
Supporting protocol for DeviceNet Safety no
Certified for UL hazardous location class I yes
Short-circuit protection, outputs available no
Certified for UL hazardous location class II no
Performance level according to EN ISO 13849-1 None
Certified for UL hazardous location division 2 no
Certified for UL hazardous location group D (propane) yes
Certified for UL hazardous location group C (ethylene) yes
Certified for UL hazardous location group A (acetylene) yes
Certified for UL hazardous location group F (carbonaceous dusts) no
