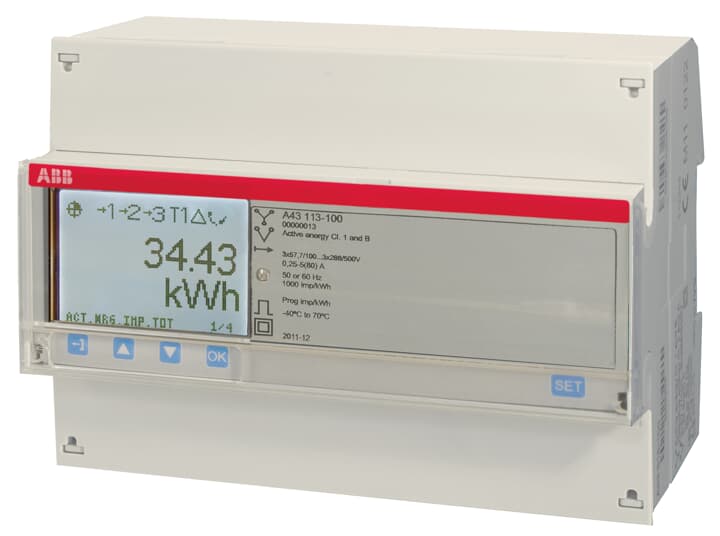

Energy meter 'Steel', 3-phase, 80 A

Link copied
SKU
EAN
GTIN
MPN
Advanced DIN-rail meter with a large and easy to read back lighted pixel-oriented display. The meter is intended for use in the industry, commercial buildings etc. The meter can be used in 3 or 4 wire systems with a wide voltage range. The meter has several instrumentation values, 25 possible alarms and event logs. Three phase direct connected for active energy. One output for pulses or alarm etc. M-Bus communication.Accuracy class 1.0 (or B for MID meters). The meters is IEC approved + MID approved and verified.

Voltimum+ Loyalty Programme Loyalty points: 197

Price: £ 415.20 Excl. VAT

Specifications

Depth 65
Model Direct measurement
Width 123
Height 26.5
Approval Measuring Instruments Directive
Frequency
Pole type Four conductor
Calibrated yes
Pulse type S0
Tariff type One-tariff
Suitable for -
Accuracy class B
With lock code no
Mounting method DRA (DIN-rail adapter)
Type of interface Other
Max. current (Imax) 80
Nominal current (In) 80
Nominal voltage (Un) N-L
Degree of protection (NEMA) -
Number of positions total (counter) 7

Documents

Deeplink product page

Open

Deeplink REACH

9AKK108467A9482_en_E_Reach Declaration - ABB S.p.A. Vittuone.pdf

Open

Instructions for use

Open

Product data sheet

Open

Declaration RoHS

Open

Declaration EPD (Environmental Product Declaration)

ABB EQ Meters - Product Environmental Profile.pdf

Open
