ARA auto recloser aux for iC60 3P-4P - 4 Prog

Link copied
SKU
EAN
GTIN
MPN

ARA auto recloser aux for iC60 3P-4P - 4 Prog by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £463.01 excl. VAT. Voltimum+ members earn 50 points per unit.

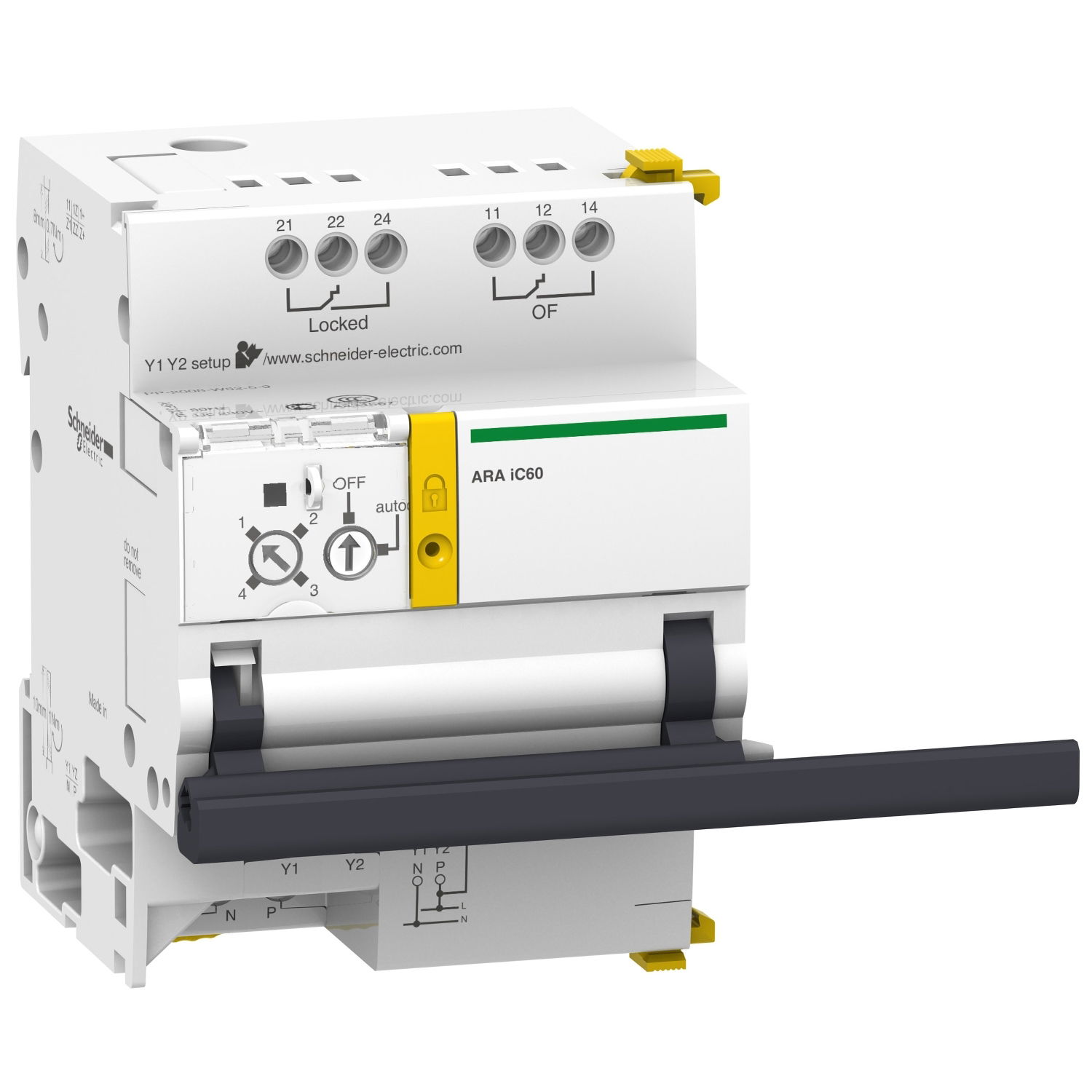

This Acti 9 ARA iC60 automatic recloser auxiliary is dedicated for iC60 circuit breakers. It performs 4 programs of automatic reclosing of the associated protection device after tripping. It increases the availability of installations without supervision, isolated, hard of access and deamnding very great availability by restoring them to operation without intervention by personnel in the event of a transient fault. The width in 9mm pitches is 7. This device controls 4P installations. The operator can choose predefined reclosing programm which allows the safety and availability of facilities to be reconciled taking into account the facility environment. The Un rated voltage is 230VAC. The operating frequency is 50Hz or 60Hz. The circuit is placed in safety configuration by the padlocking device. The operating temperature is -25°C to + 60°C. The storage temperature is -40°C to + 85°C.

Voltimum+ Loyalty Programme Loyalty points: 50

Price: £ 463.01 Excl. VAT

Specifications

Function Remote turn-on switch
Voltage type AC
Rated voltage 230 V
Device fitting Miniature circuit breaker (MCB)
Rated switch current 1 A
Number of fault-signal switches 0
Width in number of modular spacings 3.5
Number of contacts as change-over contact 0
Number of contacts as normally open contact 0
Number of contacts as normally closed contact 2

Documents

Declaration of Conformity (Sustainability)

A9C70134 REACh Regulation

Open

User guide

ARA Automatic Recloser Auxiliary for iC60 Circuit Breakers - Reference Manual

Open

Instruction sheet

Acti9 ARA iC60 - Instruction Sheet - Automatic recloser auxiliary for iC60 circuit breakers

Open

Product data sheet

Open

Catalog

Ready to install Distribution and Control products - Acti 9

Open

Declaration of Conformity (Sustainability)

A9C70134 EU RoHS Directive

Open

Declaration of Conformity (Sustainability)

A9C70134 Ship Recycling Directive

Open

Declaration of Conformity (Sustainability)

A9C70134 POP Directive

Open
