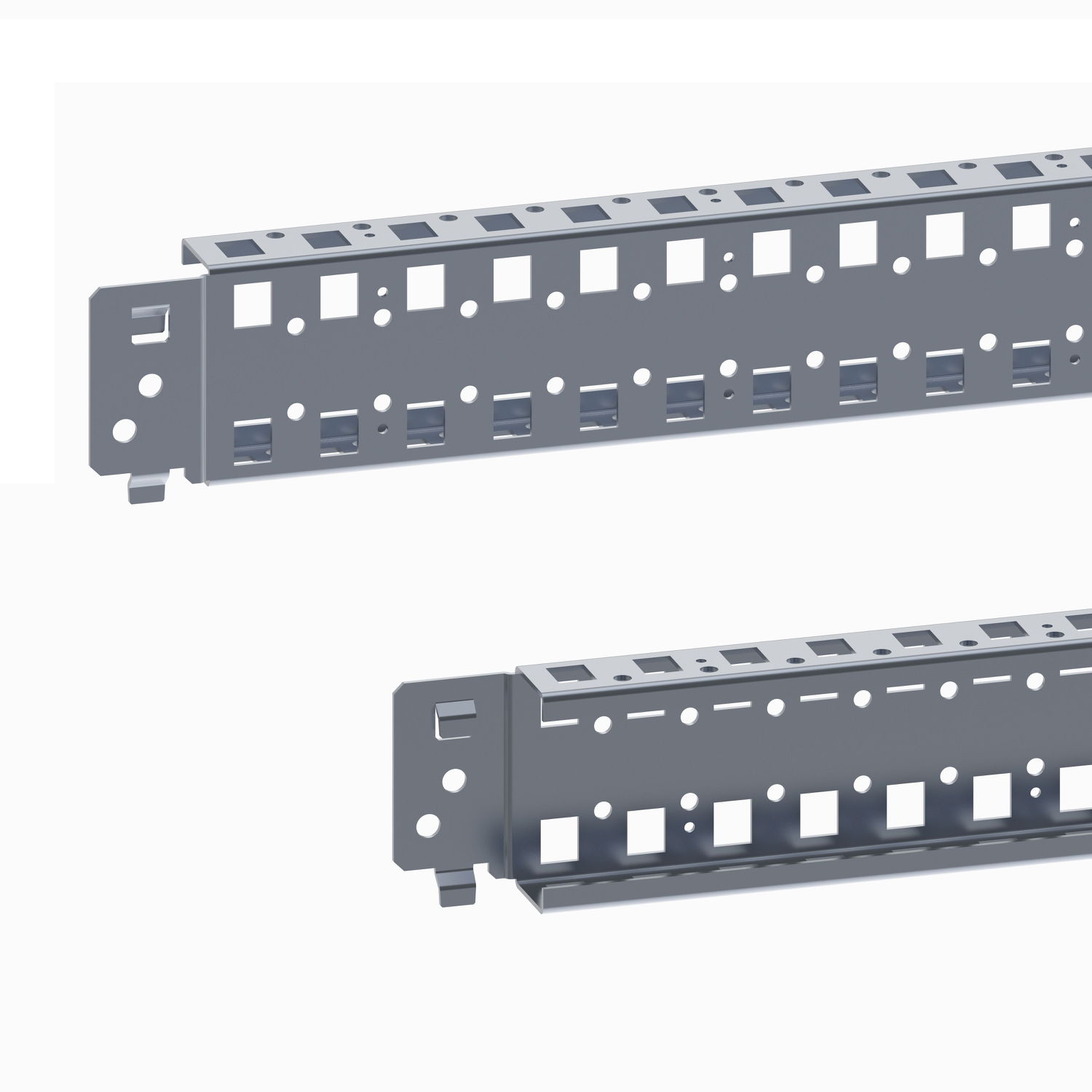

"Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W400mm, 2 rows, set of 2"

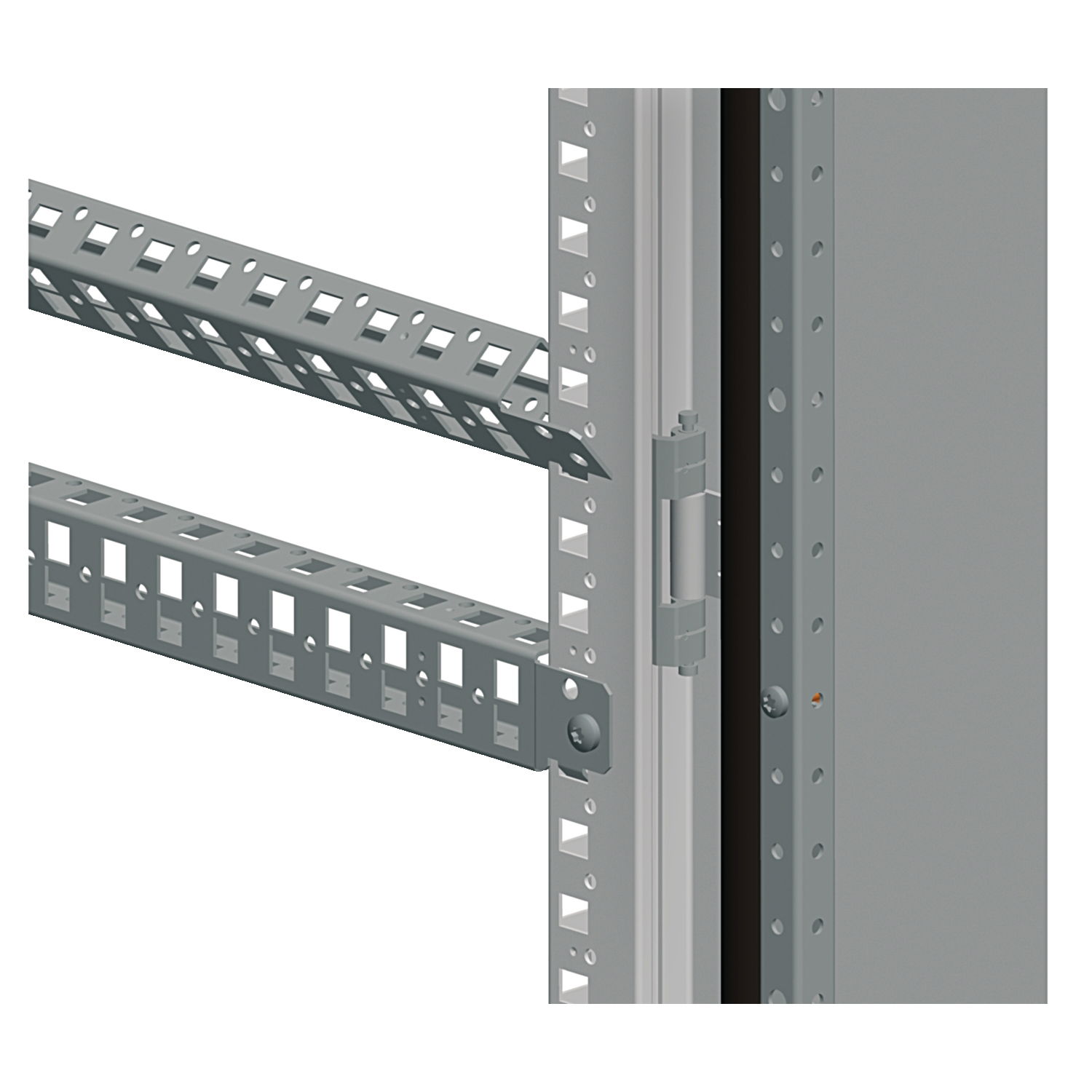

"Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W400mm, 2 rows, set of 2" – Image 2 of 2

1 / 2

"Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W400mm, 2 rows, set of 2"

Name: "Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W400mm, 2 rows, set of 2"
Brand: Schneider Electric
SKU: NSYSQCR6540
Price: 20.25 GBP
Availability: InStock

"Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W400mm, 2 rows, set of 2" by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Voltimum+ members earn 3 points per unit.

This set of two quick-fixing cross rail is suitable for PanelSeT SFN, PanelSeT SF, PanelSeT SM and PanelSeT SFX electrical enclosures. They are used for the creation of structures inside the enclosure. These mounting elements are made of galvanized steel. They have a nominal width of 65 mm and a nominal length of 65 mm. Each row is perforated every 25 mm with a 5.2 mm diameter hole and a 11x13 mm. They are fixed by means of caged nuts or self-tapping screws, and can be adjusted with a pitch of 25 mm. The set consists of two cross rails and fixing elements.

Product identifiers

SKU: NSYSQCR6540

EAN: 3606485132709

GTIN: 3606485132709

MPN: NSYSQCR6540

Loyalty points: 3

Price: £ 20.25 Excl. VAT

Specifications

Depth	27 mm
Model	Mounting rail
Width	400 mm
Colour	Other
Height	65 mm
Material	Metal
RAL-number	-
Max. load capacity	100 kg
Suitable for enclosure building depth	400 mm
Suitable for enclosure building width	400 mm
Suitable for enclosure building height	-

Documents

Declaration of Conformity (Sustainability)

NSYSQCR6540 REACh Regulation
