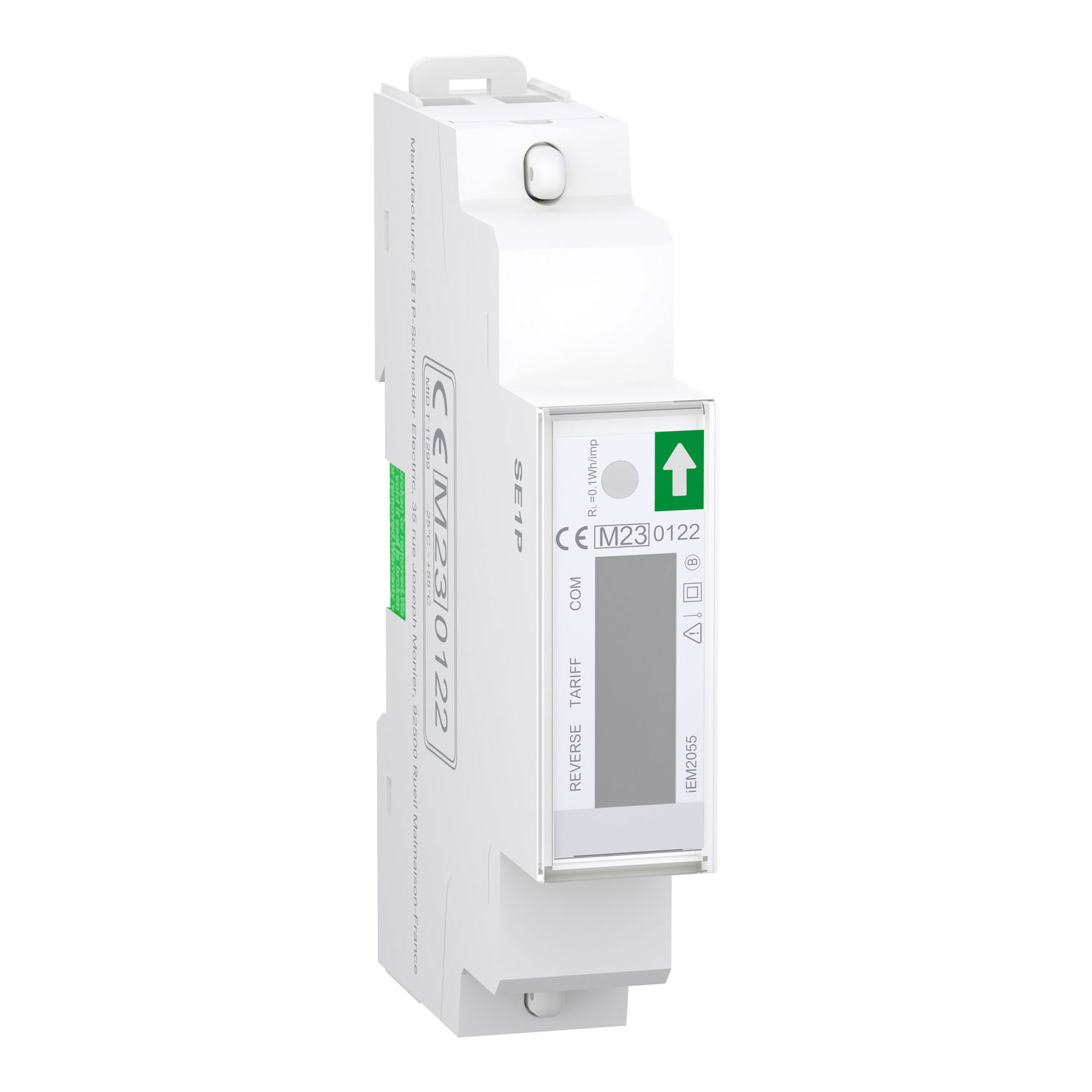

Modular single phase power meter iEM2055 - 230V - 45A with comm Modbus - MID

Link copied
SKU
EAN
GTIN
MPN

Modular single phase power meter iEM2055 - 230V - 45A with comm Modbus - MID by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £167.97 excl. VAT. Voltimum+ members earn 20 points per unit.

The Acti9 iEM2100 series energy meters offer is a single-phase DIN rail-mounted energy meters fitted for basic metering. This product family can be used to monitor power consumption for each sector, unit or workshop and manage electrical installation for building management. It feature a 8-character LCD display and red LED indicator to display measured electrical parameters. Providing Class 1 active energy accuracy per IEC 62053-21 standard, the meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. Suitable for a 230VAC network, with a supply voltage range of 96 to 276 VAC at 50Hz or 60Hz. Direct connect current measurement up to 63A with 32 samples per cycle only in a Single Phase and Neutral configuration. Communication protocol is Modbus RTU with 3 wire terminal support, no additional communication ports. You will have the possibility to switch between 2 tariffs thanks to a dedicated tariff switching input. Product dimensions are as follows: width 36 mm, depth 64 mm, height 90 mm and product weight 175 g. This version is compliant with the standard EN 50470-3 class B, Measuring Instruments Directive (MID). Compatible with power management software to take advantage of the IoT digital power installation.

Voltimum+ Loyalty Programme Loyalty points: 20

Price: £ 167.97 Excl. VAT

Specifications

Depth 63 mm
Model Direct measurement
Width 17.5 mm
Height 90 mm
Approval Measuring Instruments Directive
Frequency
Pole type Single phase
Calibrated yes
Pulse type S0
Tariff type Two-tariff
Suitable for Purchase
Accuracy class B
With lock code no
Mounting method DRA (DIN-rail adapter)
Type of indication Digital
Escapement mechanism no
Nominal voltage (Un) L-L
Degree of protection (IP) IP51
Measurement type load profile no
Width in number of modular spacings 1

Documents

Declaration of Conformity (Sustainability)

A9MEM2055 REACh Regulation

Open

User guide

iEM2050 / iEM2055 Series Single Phase Energy Meter User Manual

Open

Instruction sheet

iEM2050 / iEM2055 - Instruction sheet

Open

Product data sheet

Open

Catalog

Acti9 Isobar P Active Safety System

Open

Brochure

Acti9 iEM2000 meters Flyer

Open

Declaration of Conformity (Sustainability)

A9MEM2055 EU RoHS Directive

Open

Declaration of conformity

ECDiEM2055-MID-V1a.pdf

Open
