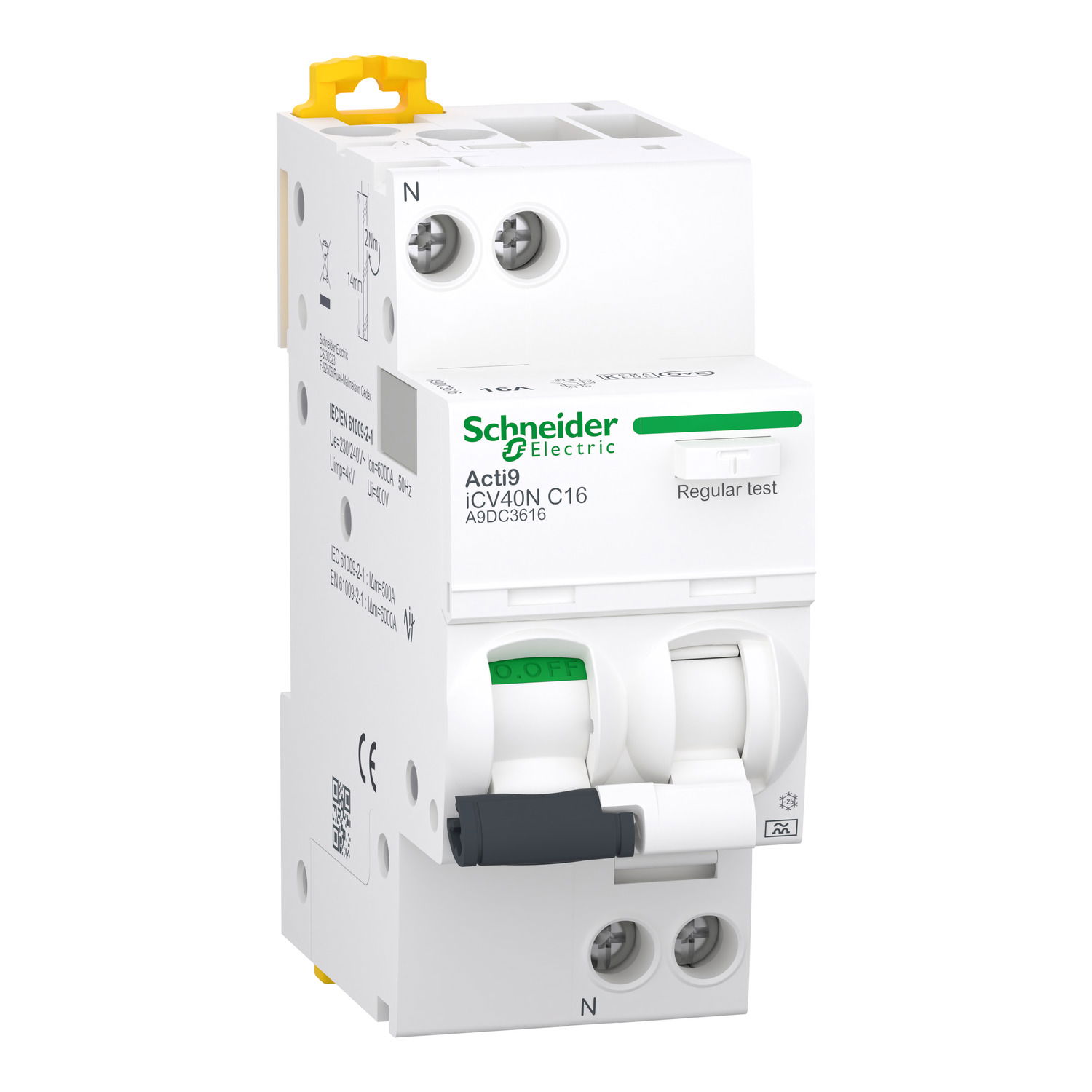

Residual current breaker with overcurrent protection (RCBO), Acti9 iCV40, 1P+N, 16 A, C Curve, 6000 A, 30 mA, A type

Residual current breaker with overcurrent protection (RCBO), Acti9 iCV40, 1P+N, 16 A, C Curve, 6000 A, 30 mA, A type by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 1 more. It is currently in stock at 3 of them. Trade prices range from £149.82 to £205.87 excl. VAT. Voltimum+ members earn 23 points per unit.

This Acti9 iCV40 product is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 16A In rated current and C tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 6000A conforming to EN/IEC 61009-2-1 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. Its 2 unique Visitrip indicators reduce intervention time by showing the faulty circuit and identifying quickly the type of default. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. This product is compliant with EN/IEC 61009-2-1 standard. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ue rated operational voltage is up to 230VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50/60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product color is white (RAL9003). The dimensions are (W) 36mm x (H) 85mm x (D) 73mm. The weight is 210g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.

Product identifiers

SKU: A9DC3616
EAN: 3606489444136
GTIN: 3606489444136
MPN: A9DC3616

Voltimum+ Loyalty Programme Loyalty points: 23

Price range: £ 149.82 - £ 205.87 Excl. VAT

Categories

Circuit Breakers Switchgear & Circuit Protection RCBOs

ETIM group

Circuit breakers and fuses

Specifications

Frequency 50/60 Hz
Power loss 4.3 W
Voltage type AC
Rated current 16 A
Rated voltage 230 V
Built-in depth 44 mm
Pollution degree 3
Rated fault current 0.03 A
Over voltage category 3
Release characteristic C
Number of poles (total) 2
Degree of protection (IP) IP20
Flush-mounted installation no
Disconnection characteristic Undelayed
Width in number of modular spacings 2
Rated impulse withstand voltage Uimp 4 kV
Connectable conductor cross section solid-core
Rated short-circuit breaking capacity according to EN 61009 6 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA
