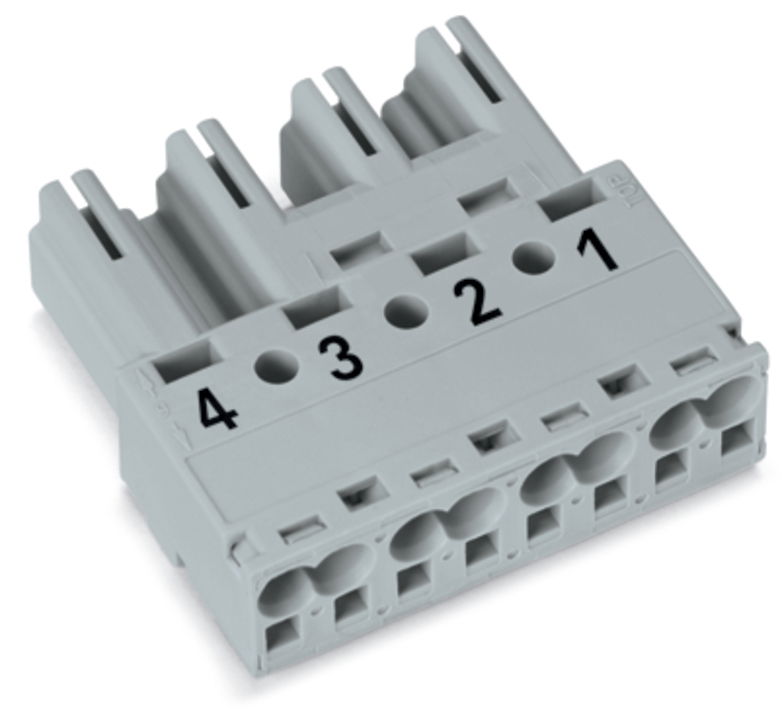

Plug 4-pole Cod. B gray

Name: Plug 4-pole Cod. B gray
Brand: Wago
SKU: 770-254
Availability: InStock

Plug; 4-pole; Cod. B; gray

Product identifiers

SKU: 770-254

EAN: 4044918253970

GTIN: 4044918253970

MPN: 770-254

Loyalty points: 2 (x50)

Price: £ 3.38 Excl. VAT

Pluggable building installation systems

Specifications

Model	Plug
Width	40
Height	12.9
Length	37.5
Fire load	0.07028
Halogen free	yes
Rated current	25
Rated voltage	400
Cable diameter
Connection type	Spring clamp connection
Number of poles	4
Type of locking	Separate
Contact material	CuSn
Housing material	Polyamide (PA)
Pollution degree	3
Mechanical coding	yes
Pole codification	1, 2, 3, 4
With strain relief	no
Rated surge voltage	6
Continuity resistance	1
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	Grey
Number of connections per pole	2
RAL-number coding/contact insert	7042
Connection cross section (solid-core)	0.5 - 4
Connection cross section (fine-strand)	0.5 - 4
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
