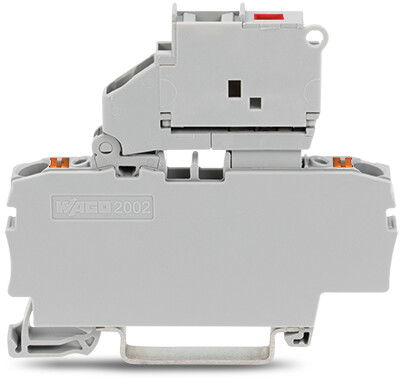

2-conductor fuse terminal block with pivoting fuse holder with end plate gray
2-conductor fuse terminal block with pivoting fuse holder with end plate gray
2-conductor fuse terminal block with pivoting fuse holder with end plate gray by Wago is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade prices range from £10.59 to £10.80 excl. VAT.

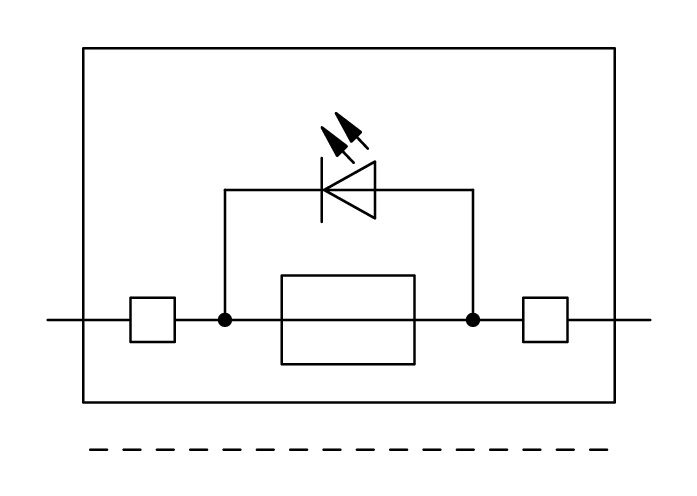

2-conductor fuse terminal block; with pivoting fuse holder; with end plate; for 5 x 20 mm miniature metric fuse; with push-button; with blown fuse indication by LED; 30 - 65 V; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
Product identifiers
SKU: 2202-1611/1000-542
EAN: 4066966335835
GTIN: 4066966335835
MPN: 2202-1611/1000-542
Loyalty points:
11 (x50)
Price range: £ 10.59 - £ 10.80 Excl. VAT
ETIM group
Specifications
| Depth | 57.2 |
| Width | 6.2 |
| Colour | Grey |
| Height | 66.1 |
| EFNA0008 | V0 |
| Rated voltage | 250 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Number of levels | 1 |
