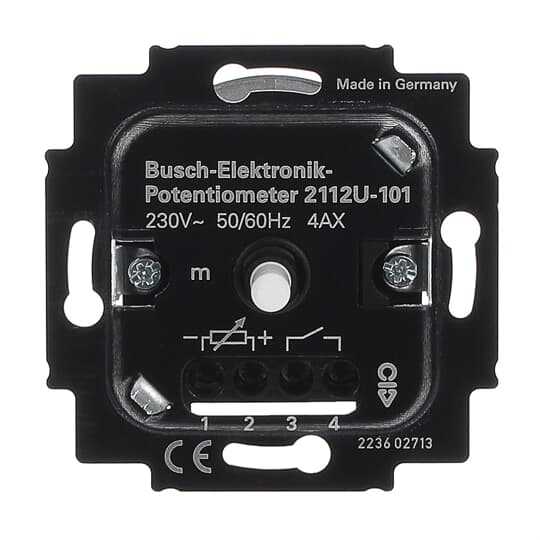

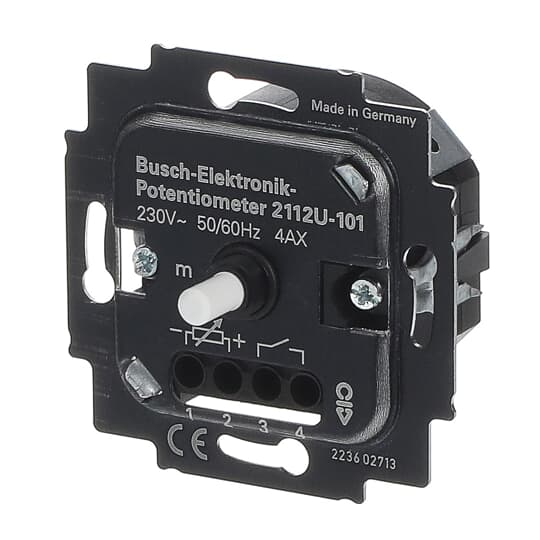

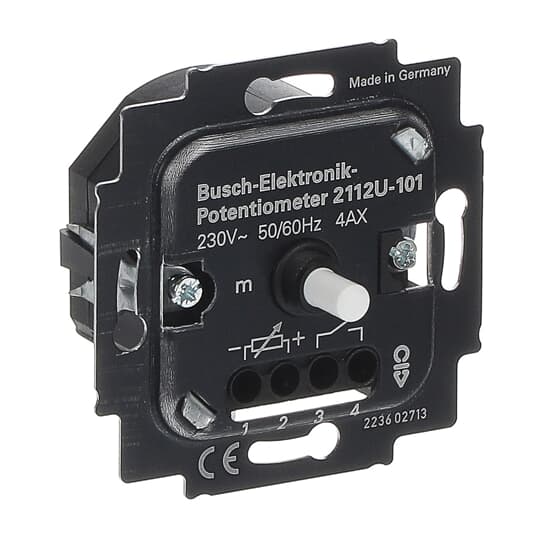

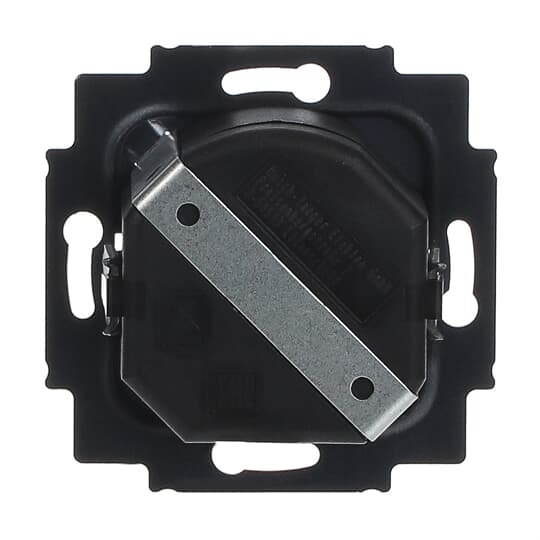

Busch-Rotary-Dimmer Insert Turn button 230 V
With rotary control. For controlling ballast units for fluorescent lamps with control output 1-10 V DC, control current max. 50 mA DC. For LED control via control gears Without cover plate.
Product identifiers
SKU: 2CKA006599A2035
EAN: 4011395463802
GTIN: 4011395463802
MPN: 2112 U-101
Loyalty points:
29
Price: £ 0.00 Excl. VAT
Categories
Features
|
Colour
|
-
|
|
EFI07572
|
-|-
|
|
EFI08808
|
2.79527
|
|
EFI08809
|
2.79527
|
|
EFI08810
|
2.08661
|
|
EFI12278
|
1.25984
|
|
Frequency
|
|
|
Dimming DSI
|
-
|
|
Transparent
|
-
|
|
Device depth
|
53 mm
|
|
Device width
|
71 mm
|
|
Dimming DALI
|
-
|
|
Device height
|
71 mm
|
|
Rated current
|
4 A
|
|
Dimming 1-10 V
|
yes
|
|
Control current
|
50 mA
|
|
Metallic colour
|
no
|
|
Mounting method
|
Flush-mounted
|
|
Nominal voltage
|
230 V
|
|
Substation input
|
-
|
|
Light value memory
|
yes
|
|
Method of operation
|
Turn button
|
|
RAL-number (similar)
|
-
|
|
Dimming Touch and Dim
|
-
|
|
Applicable with button
|
-
|
|
IFTTT support available
|
no
|
|
Dimming with push-button
|
-
|
|
Compatible with Amazon Alexa
|
no
|
|
Compatible with Apple HomeKit
|
no
|
|
Applicable with infrared button
|
-
|
|
Applicable with movement sensor
|
-
|
|
Compatible with Google Assistant
|
no
|
|
Applicable with time switch/timer
|
-
|
|
Applicable with presence indicator
|
-
|
|
Applicable with transmission button
|
-
|
|
Min. depth of built-in installation box
|
32 mm
|
|
Dimming manufacturer's proprietary system
|
-
|
