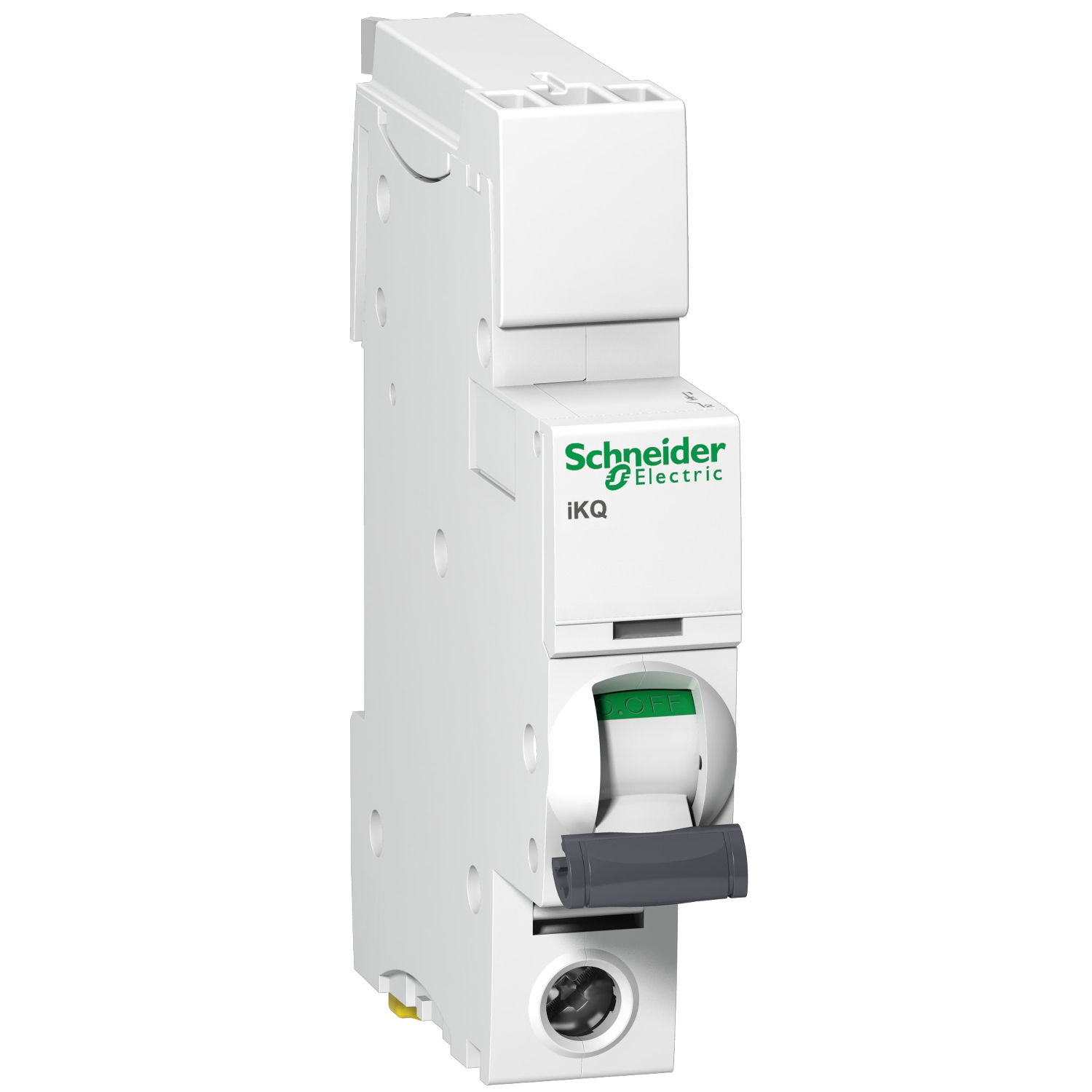

Acti9 iKQ 1P 40A C Miniature Circuit breaker

Link copied
SKU
EAN
GTIN
MPN

3x points on the Schneider Electric KQ range

Acti9 iKQ 1P 40A C Miniature Circuit breaker by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, RS Components, RS Electrical Supplies and 2 more. It is currently in stock at 4 of them. Trade prices range from £10.83 to £28.13 excl. VAT. Voltimum+ members earn 6 points per unit.

This Acti9 iKQ product is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole and 40A In rated current and C tripping curve. The Icn rated short circuit breaking capacity is up to 10000A at 240VAC conforming to EN/IEC 60898-1 standard. This product is compliant with EN/IEC 60898-1 standard. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. The trip free mechanism operates even when the toggle is locked on. There is a positive contact indication to be guaranteed with on/off indication. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 2 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 78.5mm. The weight is 0.121kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure.

Voltimum+ Loyalty Programme Loyalty points: 18

Price range: £ 10.83 - £ 28.13 Excl. VAT

Specifications

Frequency
Power loss -
Voltage type AC
Rated current 40 A
Rated voltage 240 V
Built-in depth 78.5 mm
Explosion-proof no
Pollution degree 2
Current limiting class 3
Number of poles (total) 1
Number of protected poles 1
Rated insulation voltage Ui 440 V
Width in number of modular spacings 1
Rated impulse withstand voltage Uimp 4 kV
Connectable conductor cross section solid-core
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 15 kA
