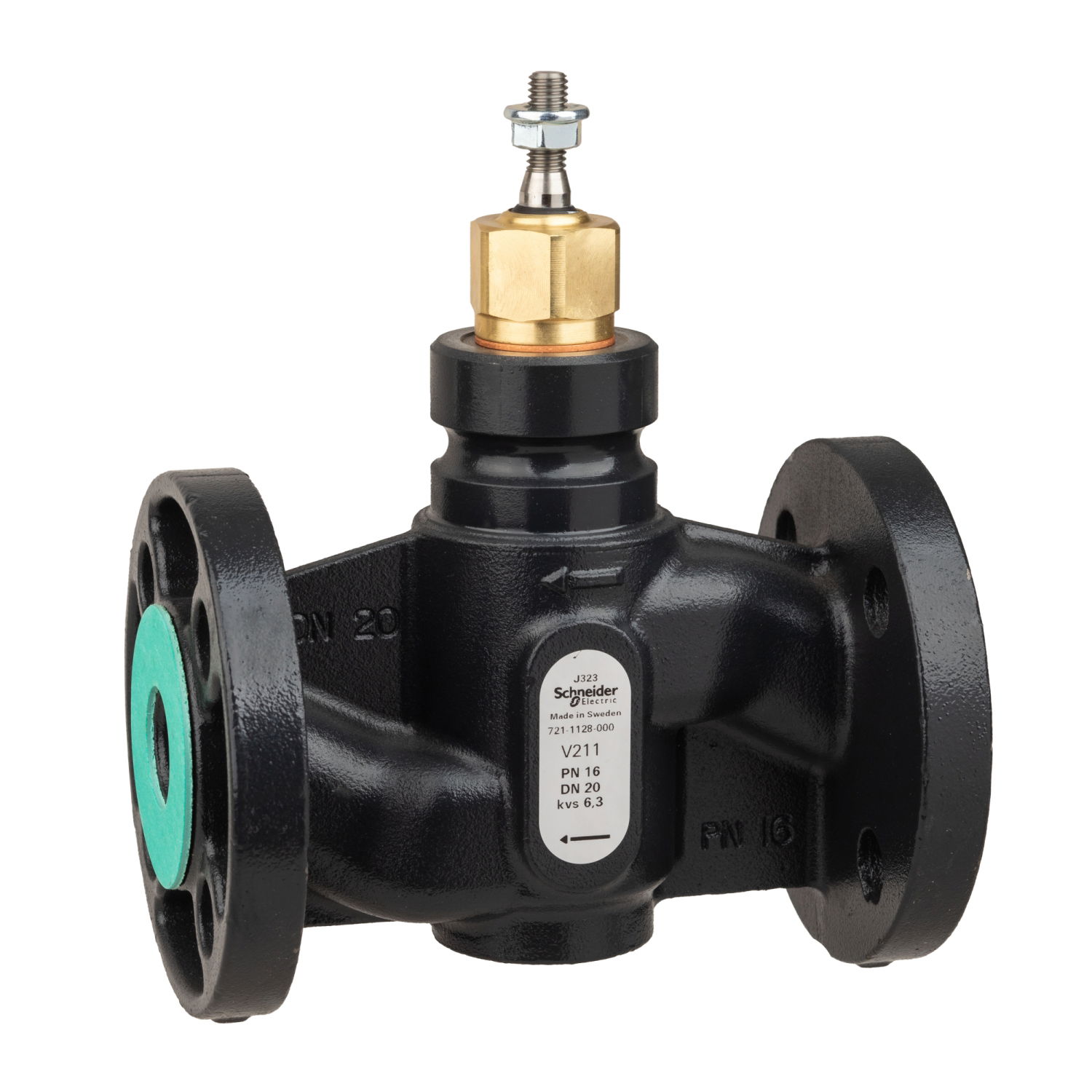

Ventil 2WAY Flanged V211/20/6.3

Link copied
SKU
EAN
GTIN
MPN
The Venta V211 is a 2-way flanged globe valve designed for a wide range of heating and cooling applications. The valve uses a crown plug for precise fluid control. Nodular iron construction provides a long life and high corrosion resistance. The crown plug provides precise fluid control with a rangeability of 50:1 and is of a self cleaning design for reliable operation. Valve size: DN20, Flow capacity, Kvs: 6.3 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of 400 Kpa. EPDM seals provide a working temperature range of -20 °C to + 120 °C, the soft seat seal ensures a tight close off with no leakage. 20 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). PN16 flanges have fibre gaskets bonded to the flange face. The flange face has a design that accommodates that flexes to allow small mis alignment in the pipes. Valve Length (between flanges) is 13 mm, height is 164.5 mm, width 95 mm, Weight is 2.1 Kg. High Controllability and long life.

Voltimum+ Loyalty Programme Loyalty points: 47

Price: £ 279.00 Excl. VAT

Specifications

EFDE0006 -
EFDE0007 -
EFDE0048 -
EFDE0049 -
Kv value
Kvs value 6.3
Axle height -
Connection 1 Flange
Stroke length 20 mm
Material quality Other
Control ratio (Svo) -
Suitable for cooling yes
Automatic flow control no
Length of connection 2 -
Flange compression class PN 16
Article compression class PN 16
Contour code connection 2 -
With flow measuring point -
With coupling connection 1 -
Working length connection 1 -
Nominal diameter connection 1 3/4 inch (20)
Medium temperature (continuous)
Outer pipe diameter connection 2 -

Documents

Declaration of Conformity (Sustainability)

7211128000 REACh Regulation

Open

Product data sheet

Open

Catalog

2026 EMEA-APAC Valves & Actuators Product Catalog

Open

Declaration of Conformity (Sustainability)

7211128000 EU RoHS Directive

Open
