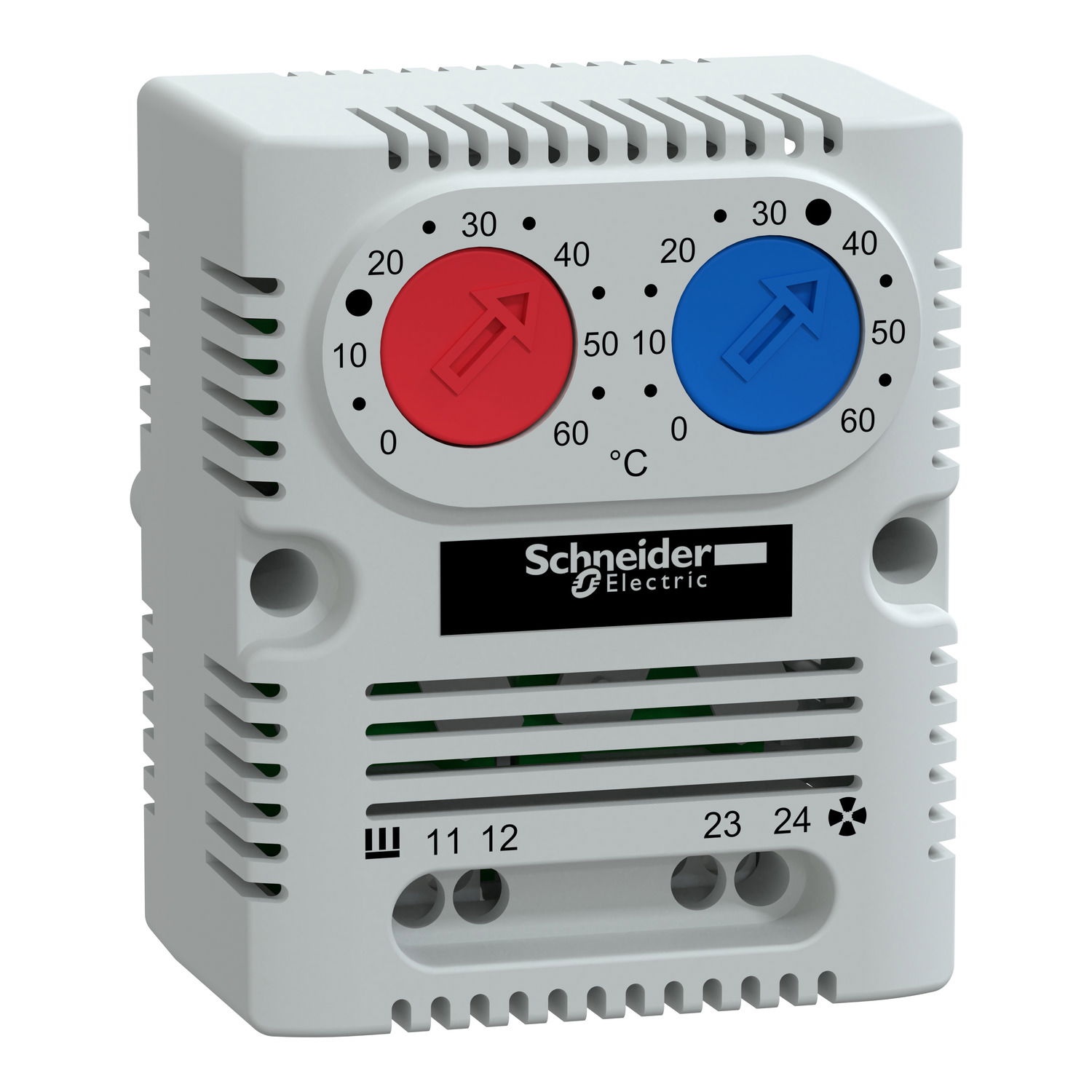

ClimaSys CC - double thermostat 250V - range of temperature 0…60°C - 1NO/NC - °C
ClimaSys CC Double thermostat. 250V AC. 68 x 56 x 44 mm. Sensor Bimetal with 1 NO/NC contact type. 1 heating function and 1 ventilation function. Electrical connection by 4 terminals 2.5mm². Mounting mode by 35mm DIN rail, cross rails, on mounting plate Spacial upright. Made in PC. Light grey. Self-extinguishing UL94 (material V0). Protection IP20.
Product identifiers
SKU: NSYCCOTHD
EAN: 3606480152511
GTIN: 3606480152511
MPN: NSYCCOTHD
Loyalty points:
17
Price range: £ 32.32 - £ 43.52 Excl. VAT
Categories
ETIM Group
Specifications
| Model | Thermostat |
| Mounting method | Other |
| Rated current In | 10 A |
| Rated voltage DC | |
| Rated voltage AC 50 Hz | |
| Rated voltage AC 60 Hz | |
| Type of switch function | Normally closed contact and normally open contact |
| With digital indication | no |
