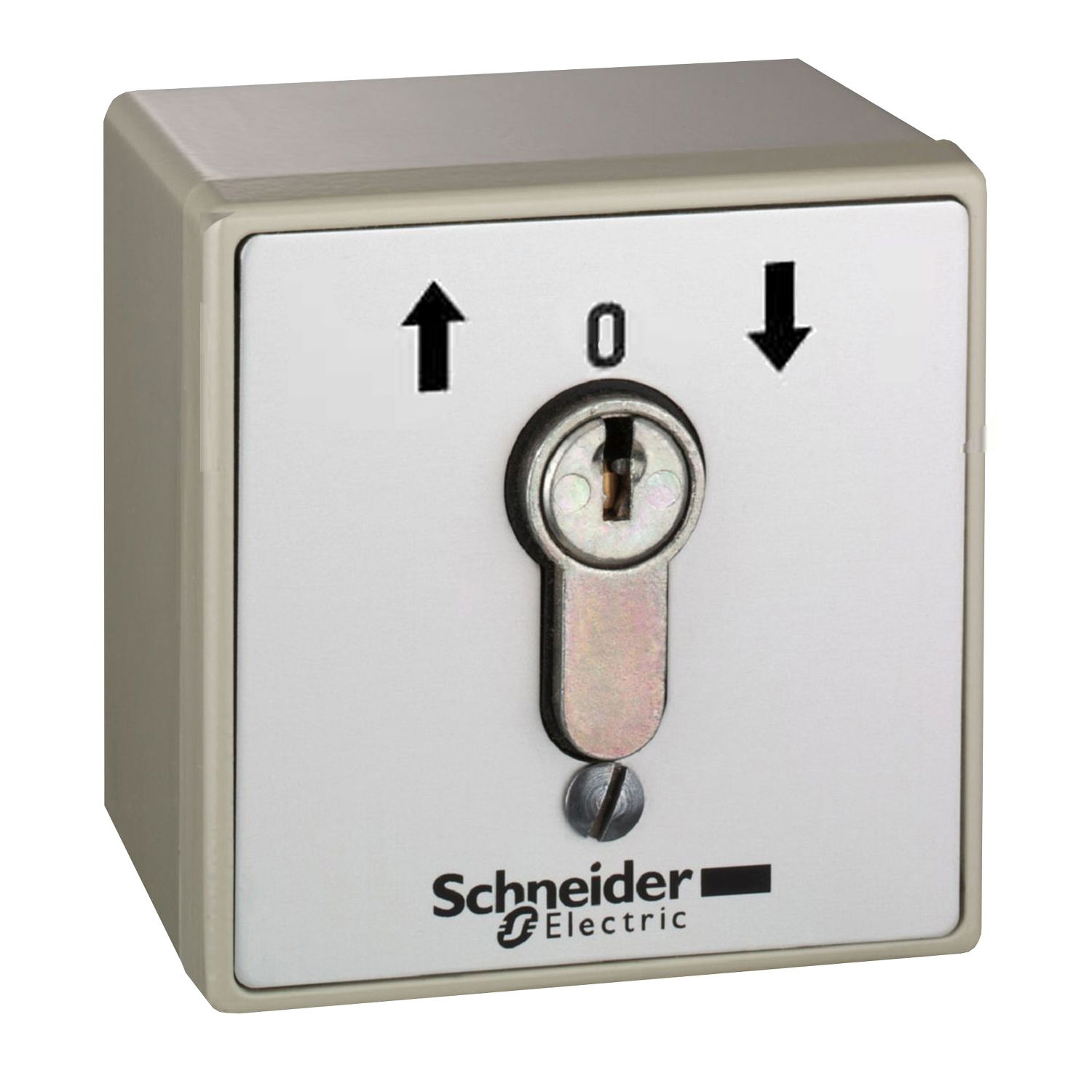

Vandal resistant surface mounted control station - XAP-S - lock

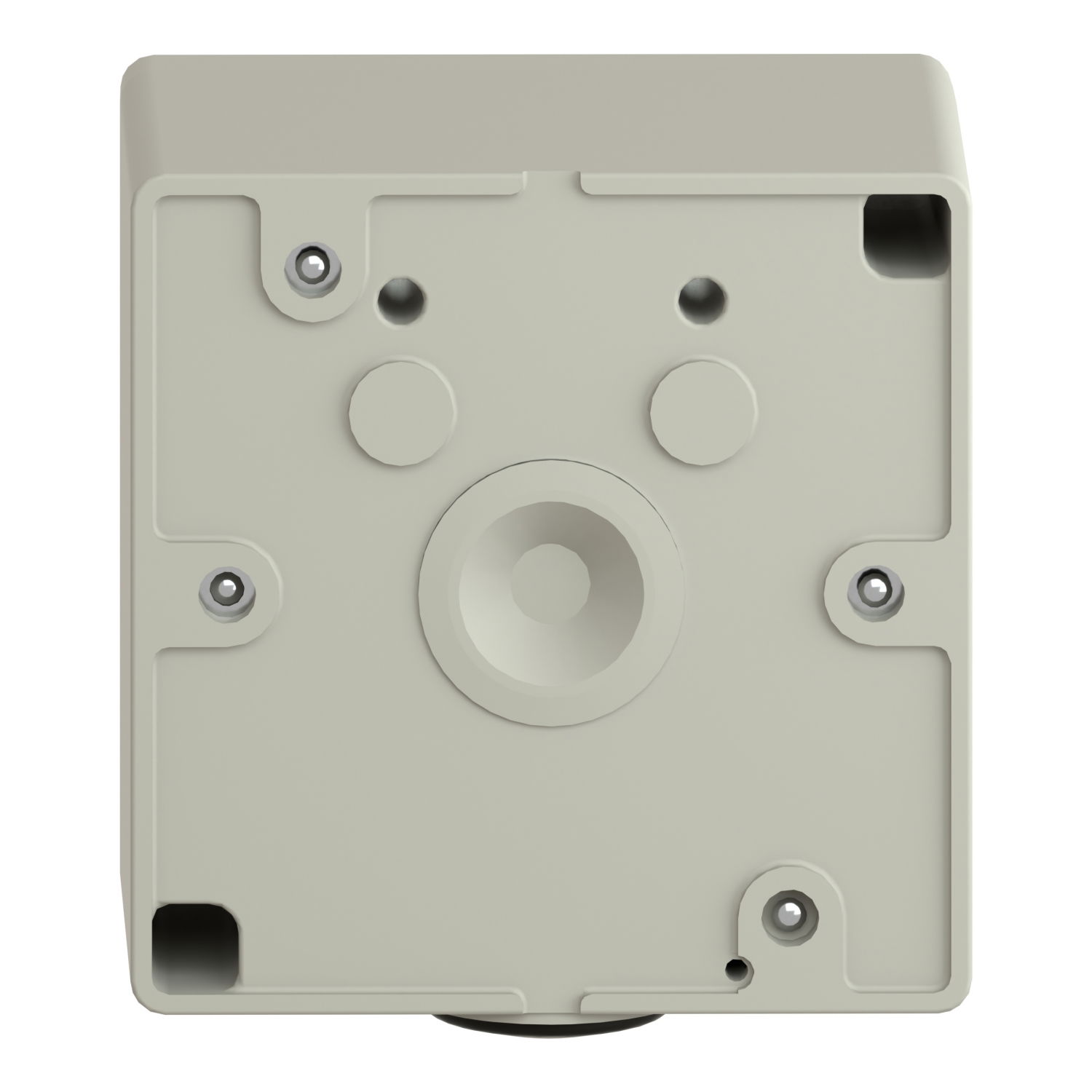

Vandal resistant surface mounted control station - XAP-S - lock – Image 2 of 16

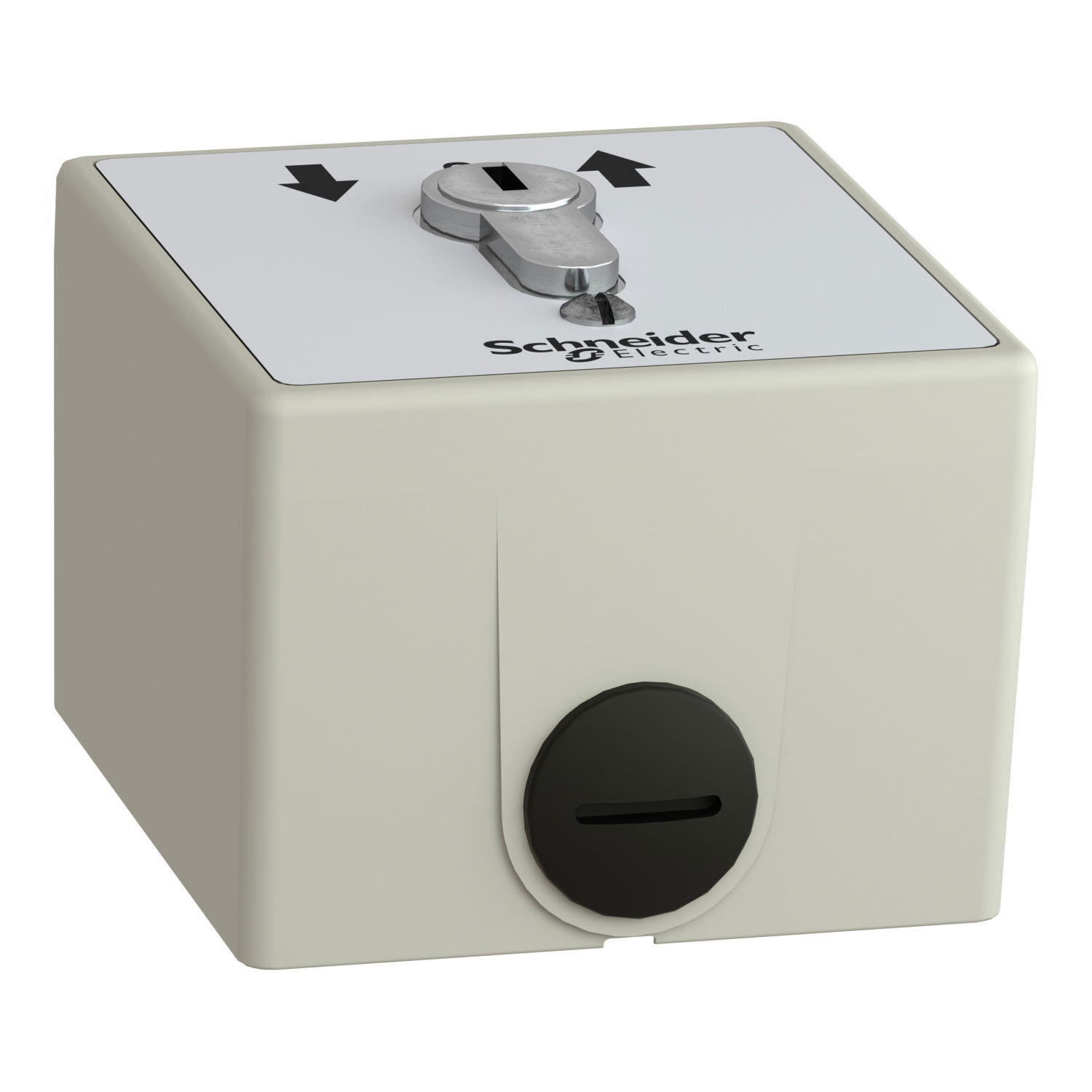

Vandal resistant surface mounted control station - XAP-S - lock – Image 3 of 16

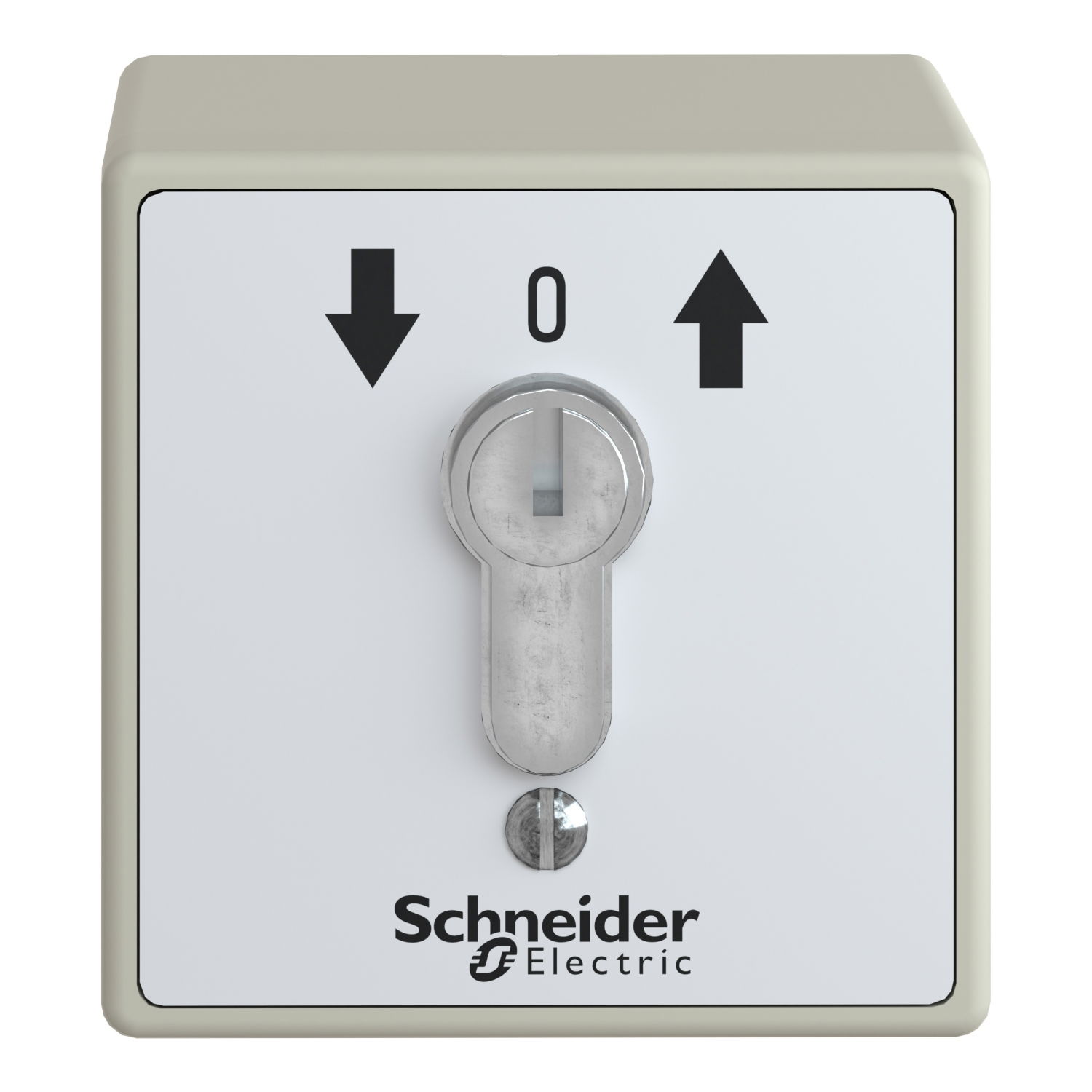

Vandal resistant surface mounted control station - XAP-S - lock – Image 4 of 16

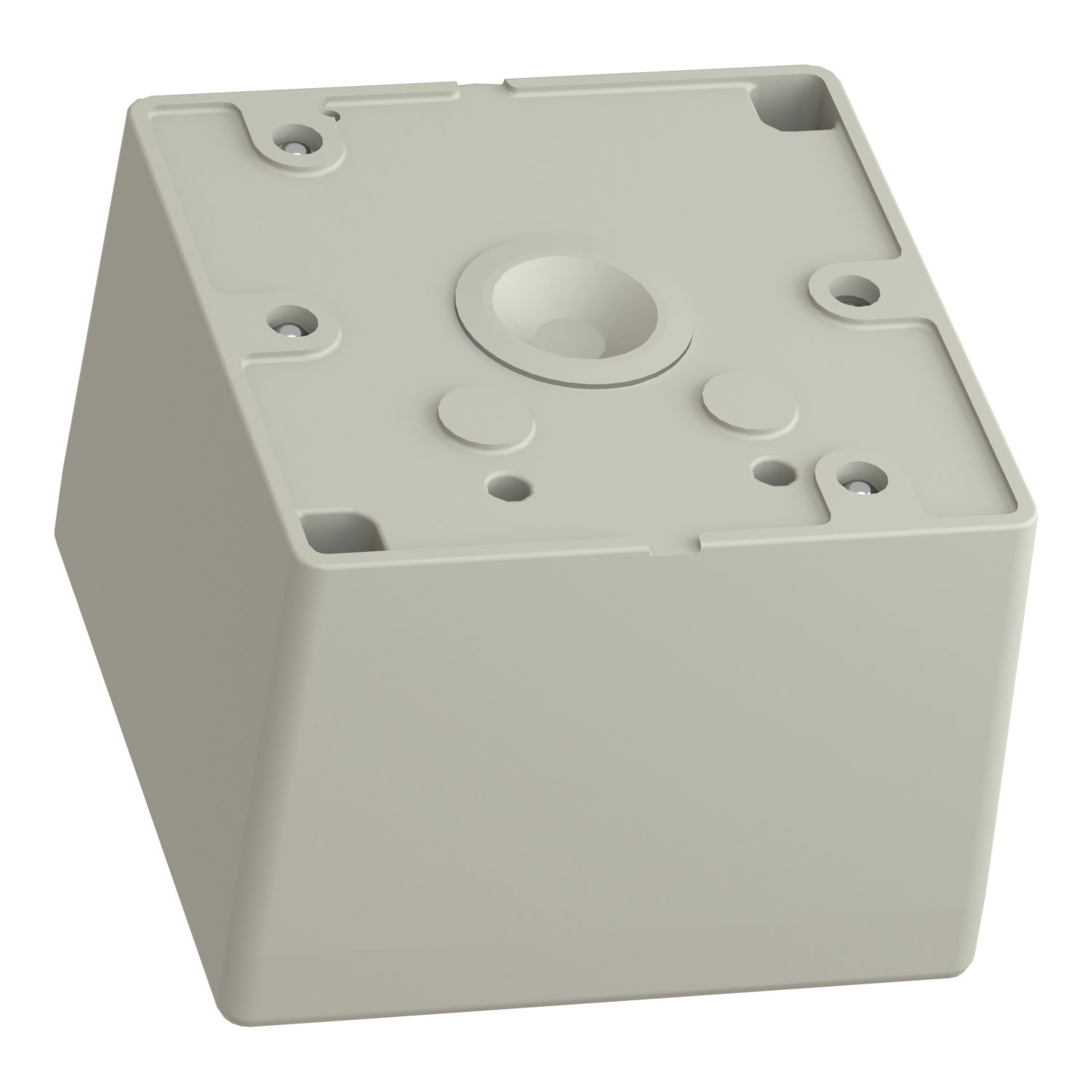

Vandal resistant surface mounted control station - XAP-S - lock – Image 5 of 16

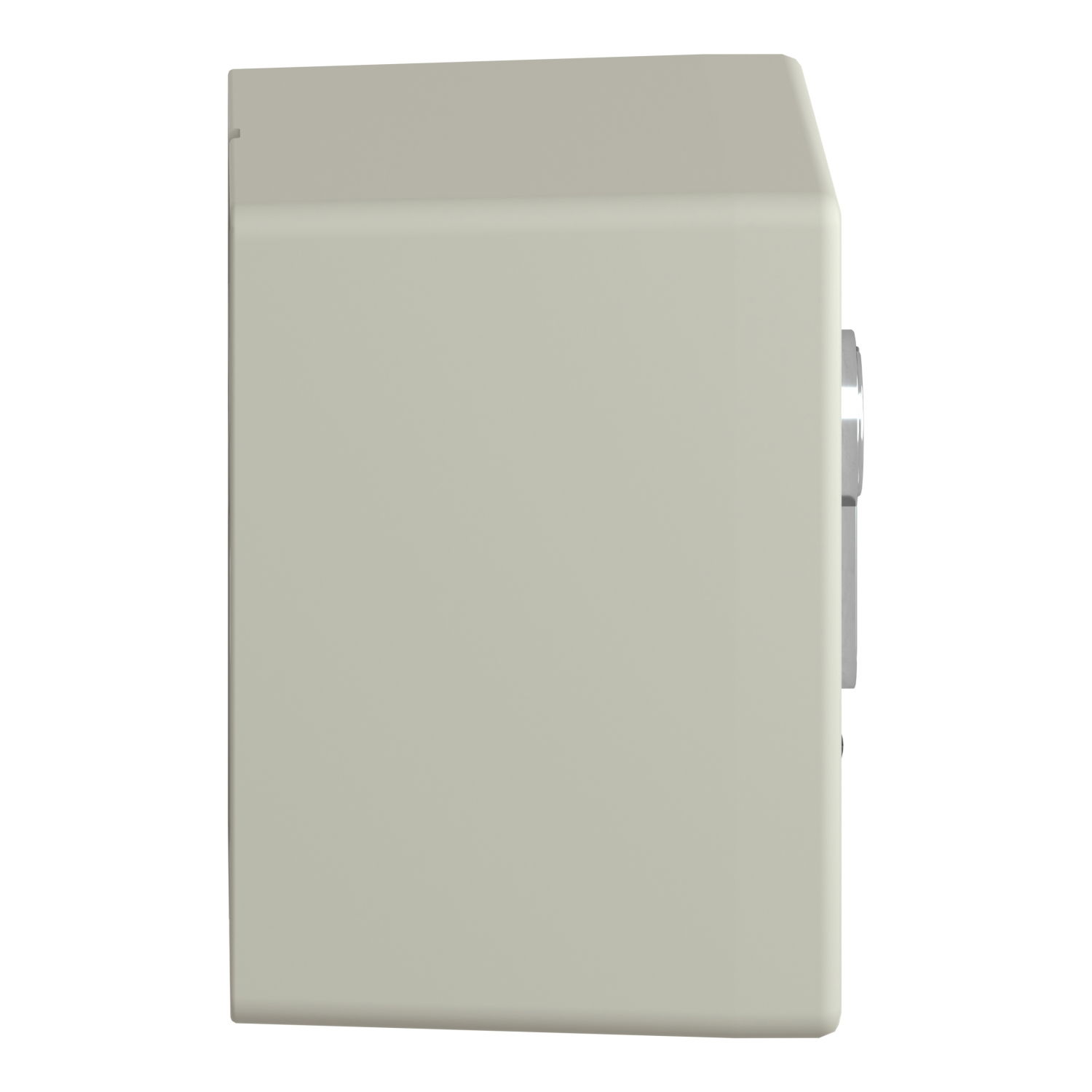

Vandal resistant surface mounted control station - XAP-S - lock – Image 6 of 16

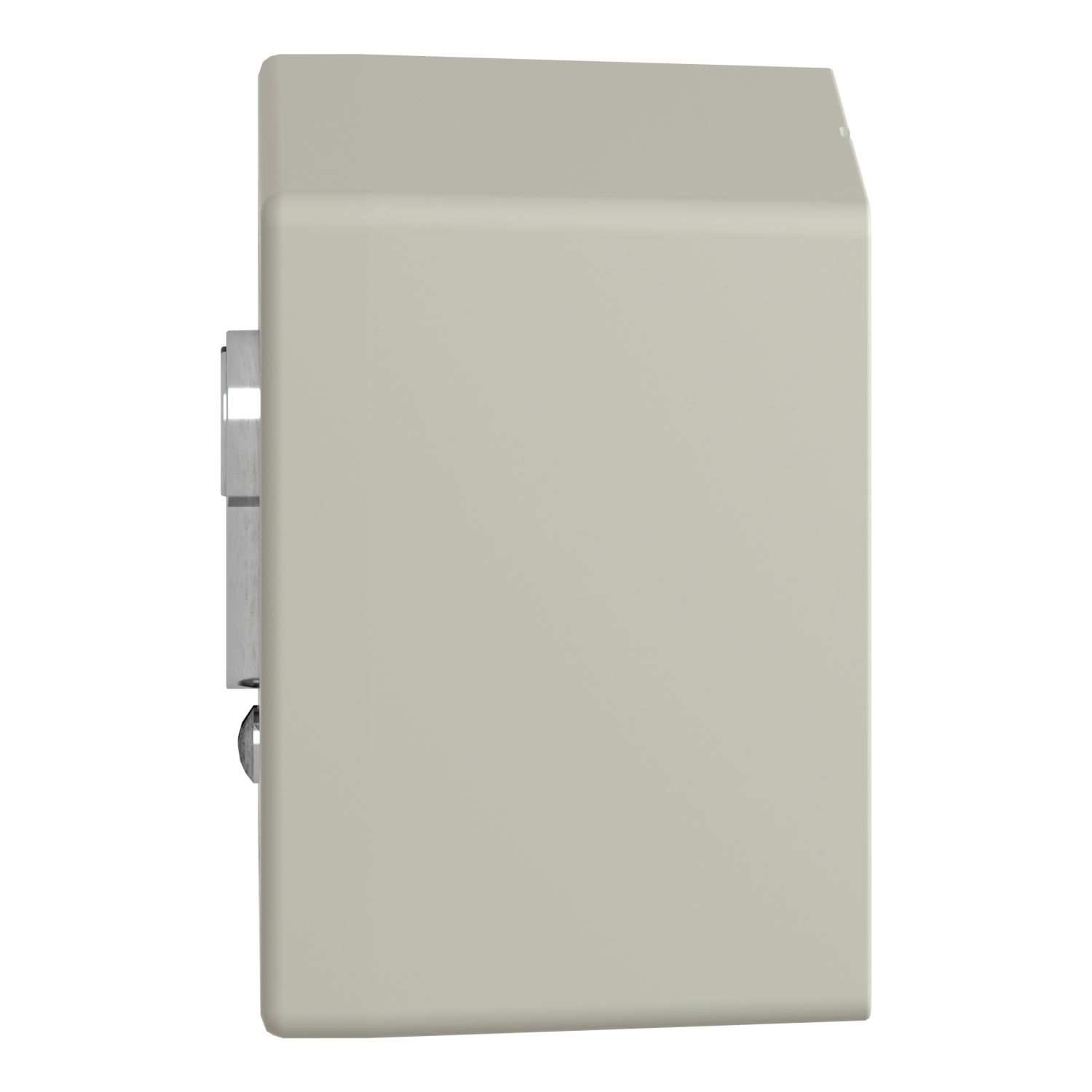

Vandal resistant surface mounted control station - XAP-S - lock – Image 7 of 16

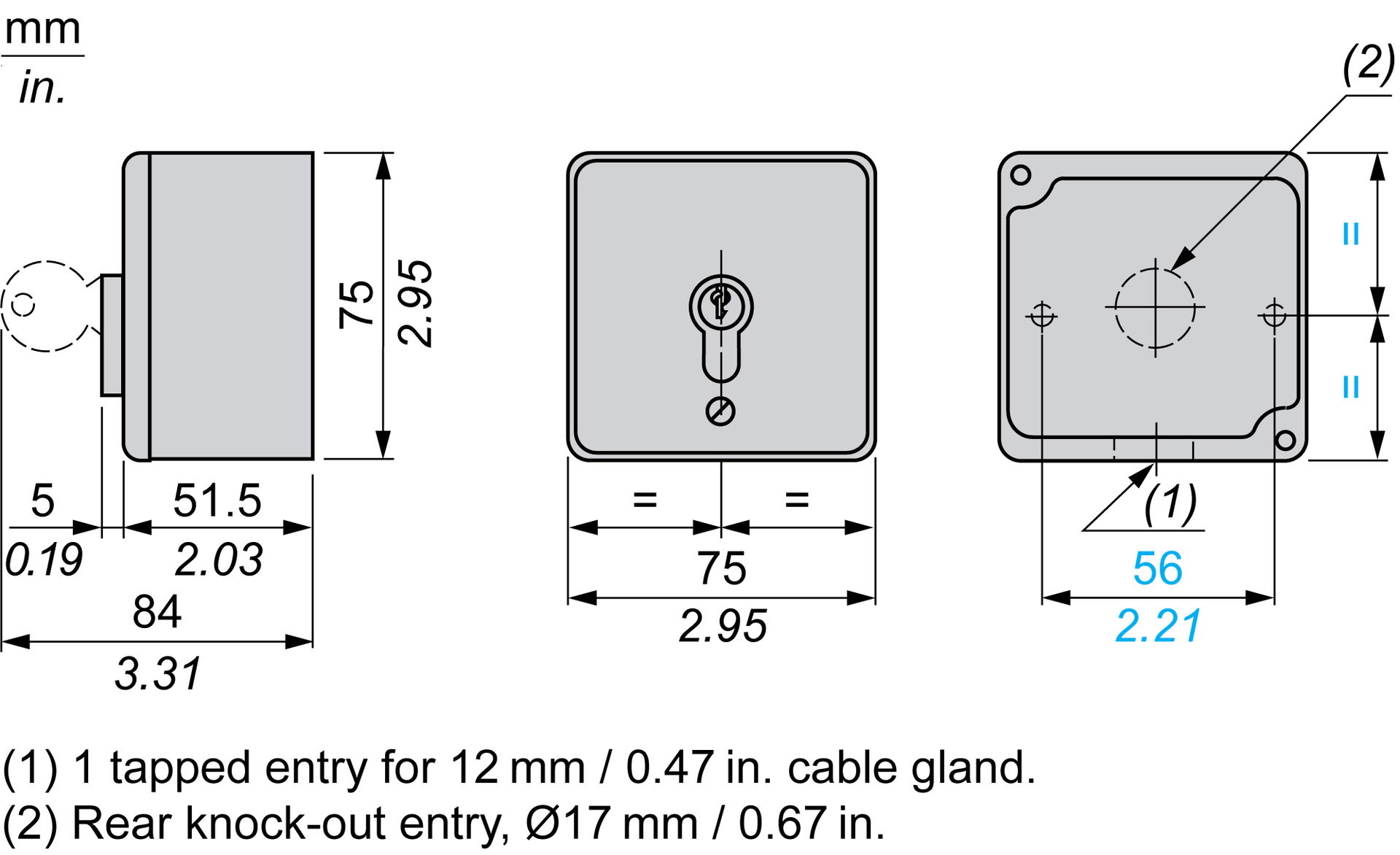

Vandal resistant surface mounted control station - XAP-S - lock – Image 8 of 16

Vandal resistant surface mounted control station - XAP-S - lock – Image 9 of 16

Vandal resistant surface mounted control station - XAP-S - lock – Image 10 of 16

Vandal resistant surface mounted control station - XAP-S - lock – Image 11 of 16

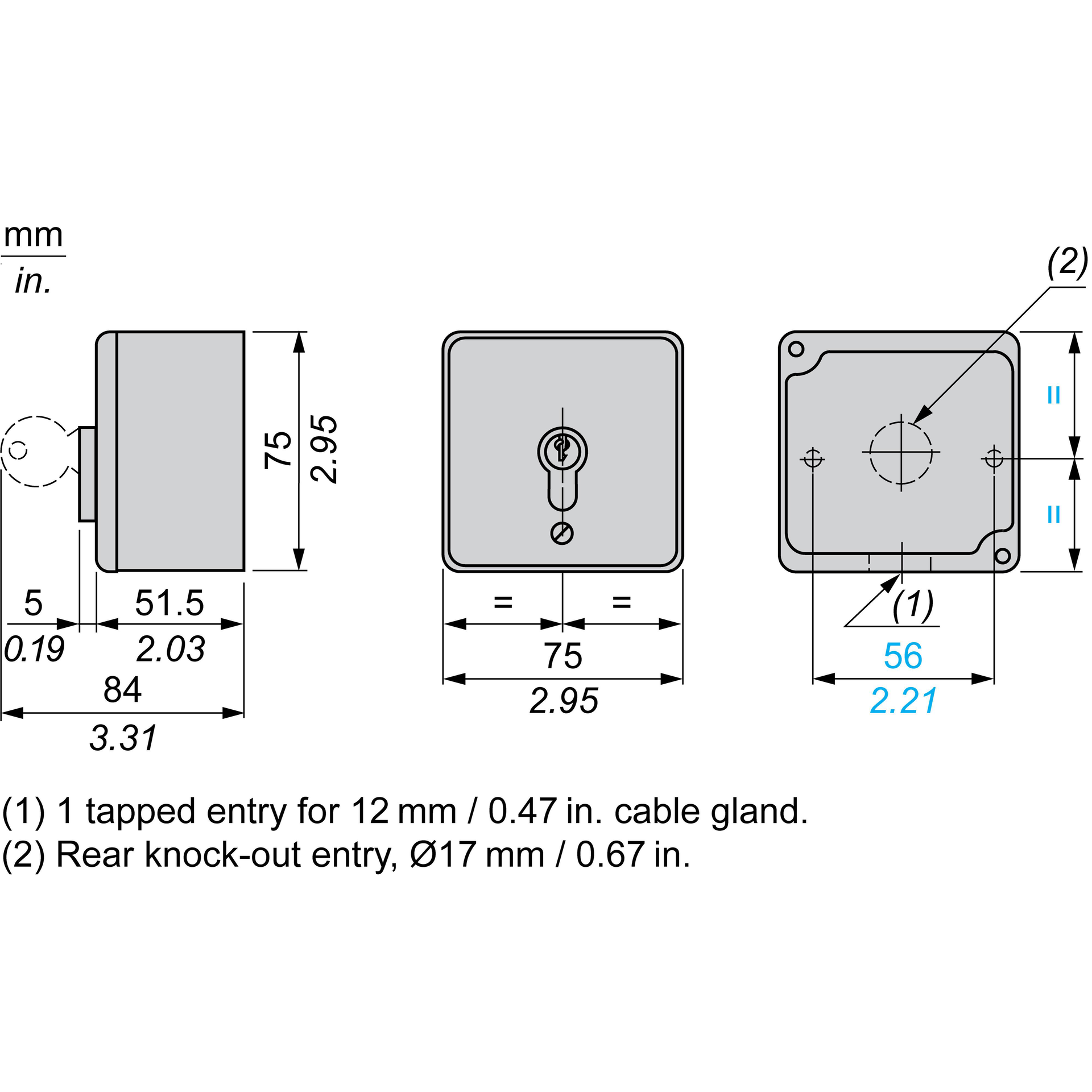

Vandal resistant surface mounted control station - XAP-S - lock – Image 12 of 16

Vandal resistant surface mounted control station - XAP-S - lock – Image 13 of 16

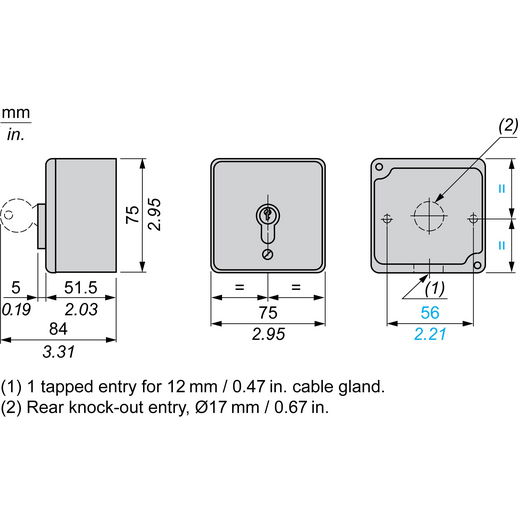

Vandal resistant surface mounted control station - XAP-S - lock – Image 14 of 16

Vandal resistant surface mounted control station - XAP-S - lock – Image 15 of 16

Vandal resistant surface mounted control station - XAP-S - lock – Image 16 of 16

1 / 16

Vandal resistant surface mounted control station - XAP-S - lock

Name: Vandal resistant surface mounted control station - XAP-S - lock
Brand: Schneider Electric
SKU: XAPS11431N
Availability: InStock

Vandal resistant surface mounted control station - XAP-S - lock by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Trade price £121.09 excl. VAT. Voltimum+ members earn 17 points per unit.

This Harmony XAPS is a complete ready to use key operated control station with 3 positions, spring return from left and right to centre. It is fitted with a key operated lock and is designed to provide a starting or autorisation sequence by using the key. It is supplied with 2 keys. It is supplied with 1 NO contact per function, and marking up arrow - O - down arrow, on front face. Designed for industry, it offers operating simplicity, flexibility and robustness. Its protection index is IP54. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It provides a zinc alloy grey enclosure. It weighs 850g and its dimensions are 75mm wide, 75mm high, 84mm deep with key. It is designed for machines builders (automotive, textile, wood) and services and infrastructures, energy distribution, building, airport. It is compatible with the Harmony XB4 range of control and signaling units.

Product identifiers

SKU: XAPS11431N

EAN: 3389110838527

GTIN: 3389110838527

MPN: XAPS11431N

Loyalty points: 17

Price: £ 121.09 Excl. VAT

Specifications

Housing colour	Grey
Housing material	Metal
Power consumption	-
Colour housing cover	Grey
Number of key switches	1
Number of push buttons	0
Degree of protection (IP)	IP54
Number of indicator lights	0
Degree of protection (NEMA)	Other
Number of command positions	1
Number of selector switches	0
Suitable for emergency stop	no
Rated control supply voltage DC
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Number of mushroom-shaped push-buttons	0
Number of contacts as change-over contact	0
Number of contacts as normally open contact	1
Number of contacts as normally closed contact	0
