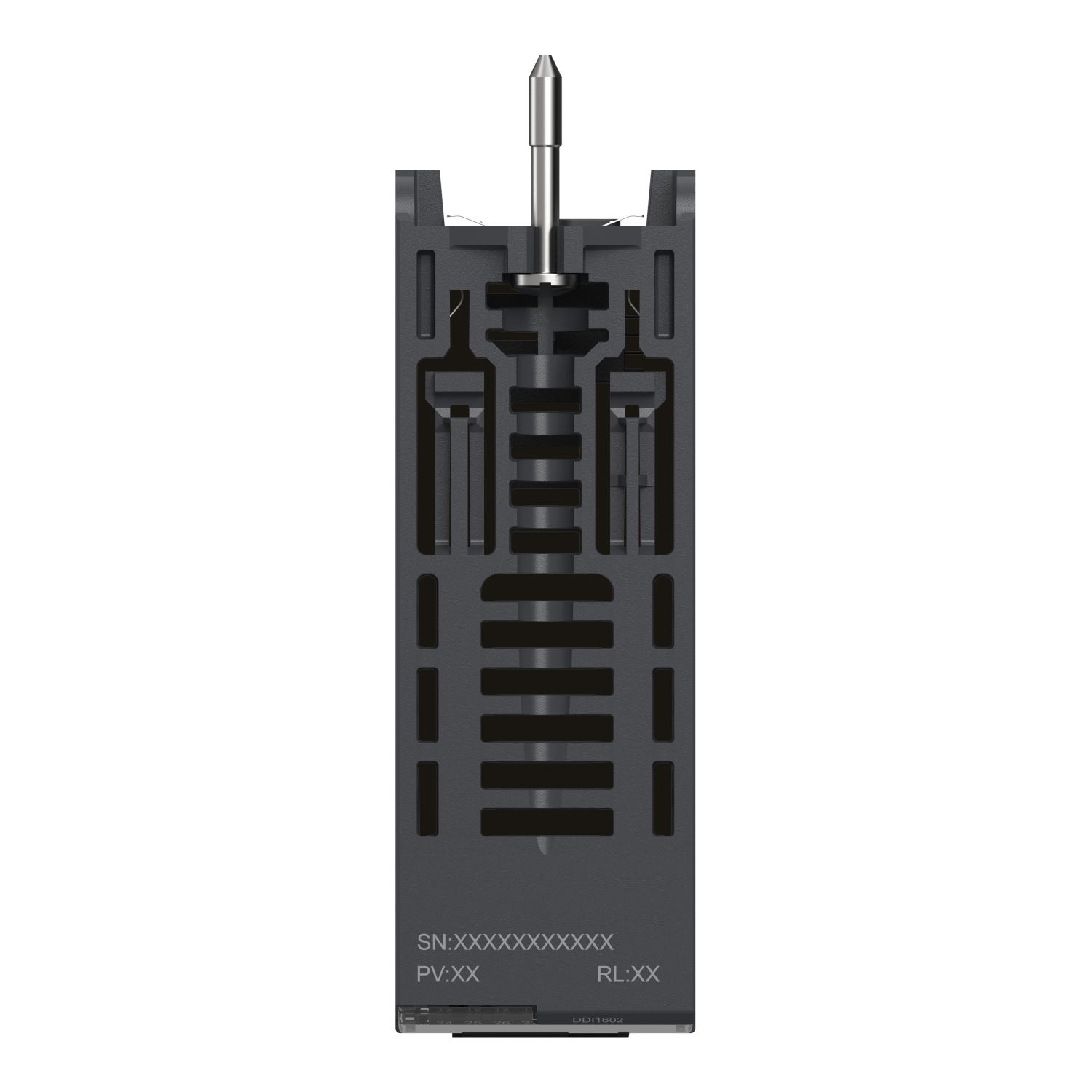

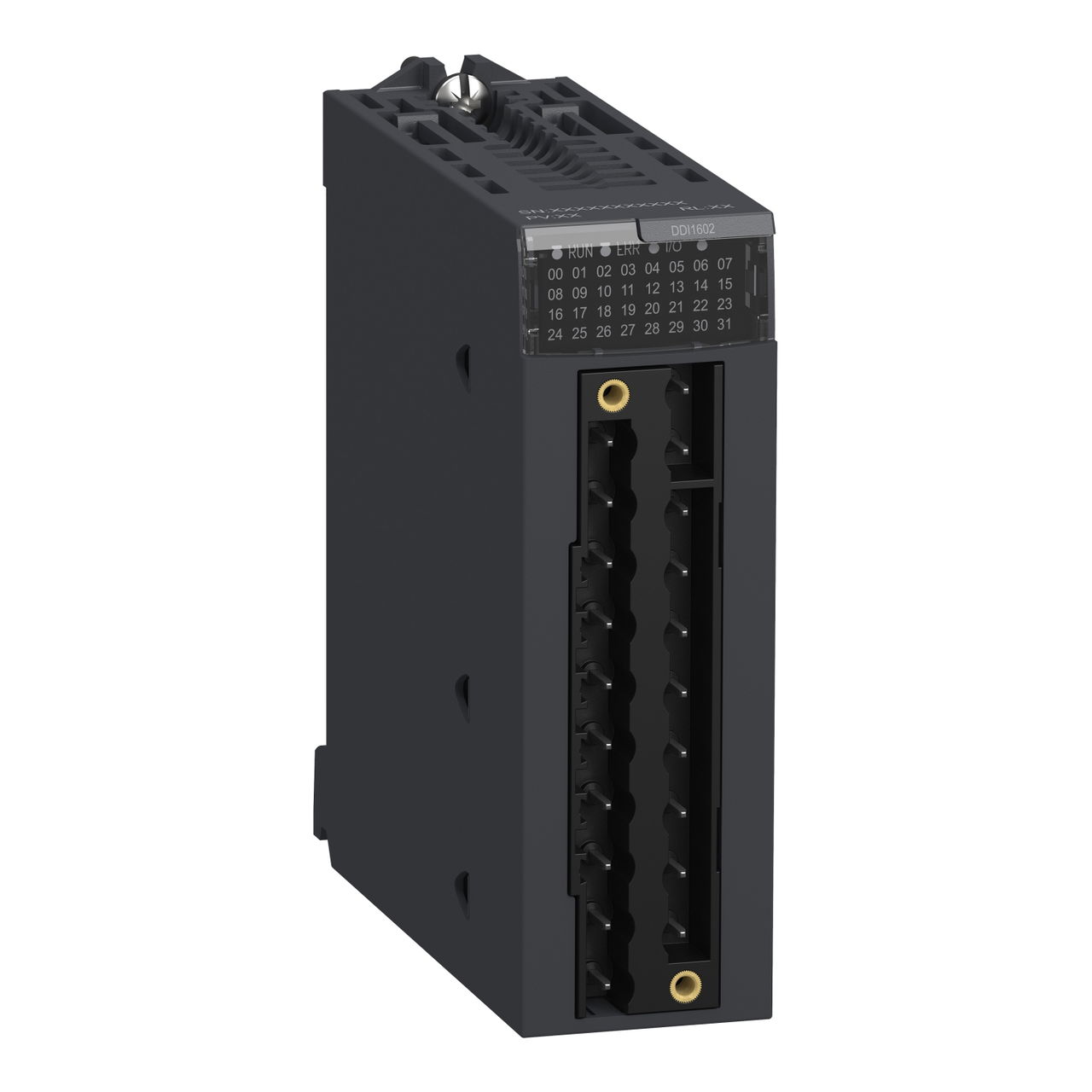

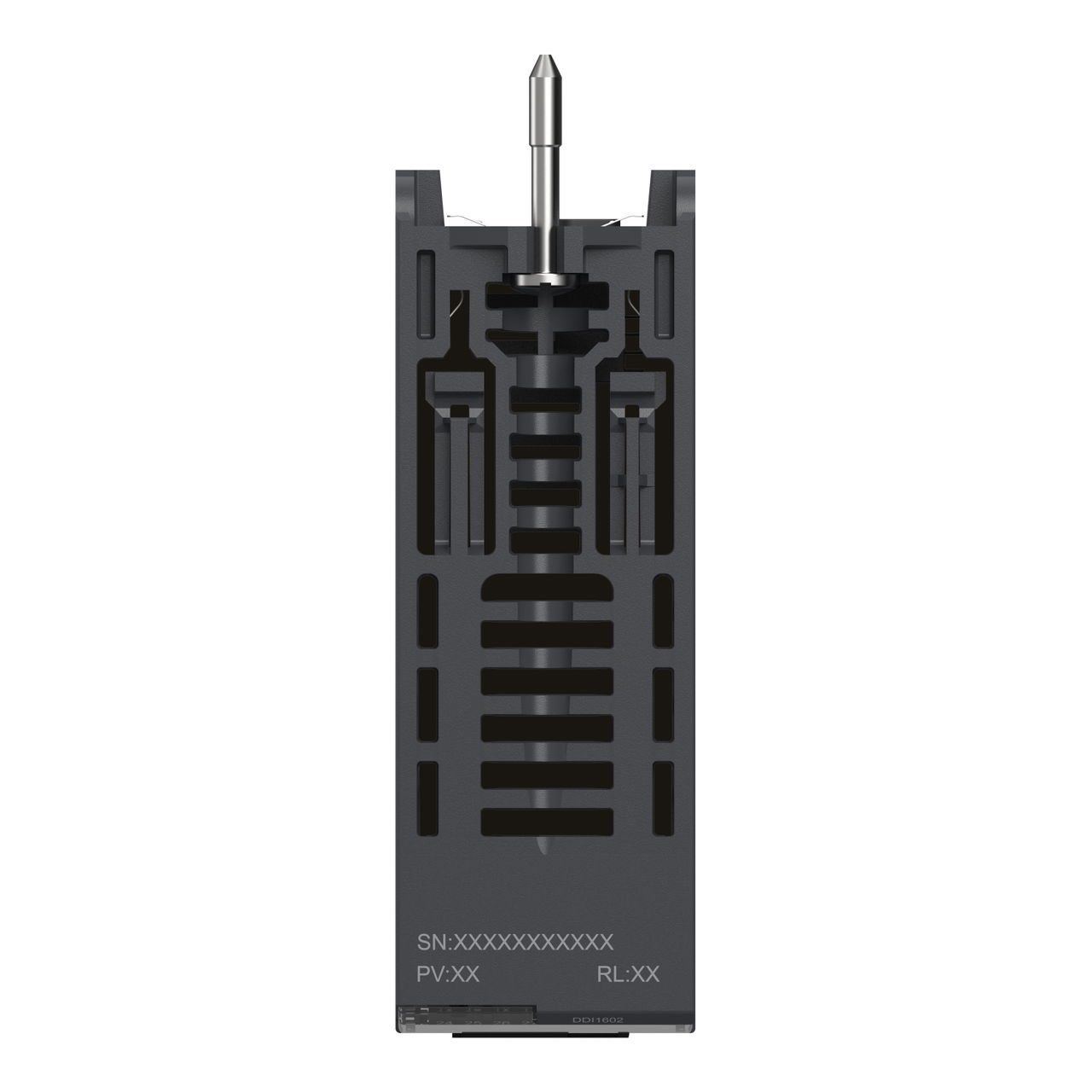

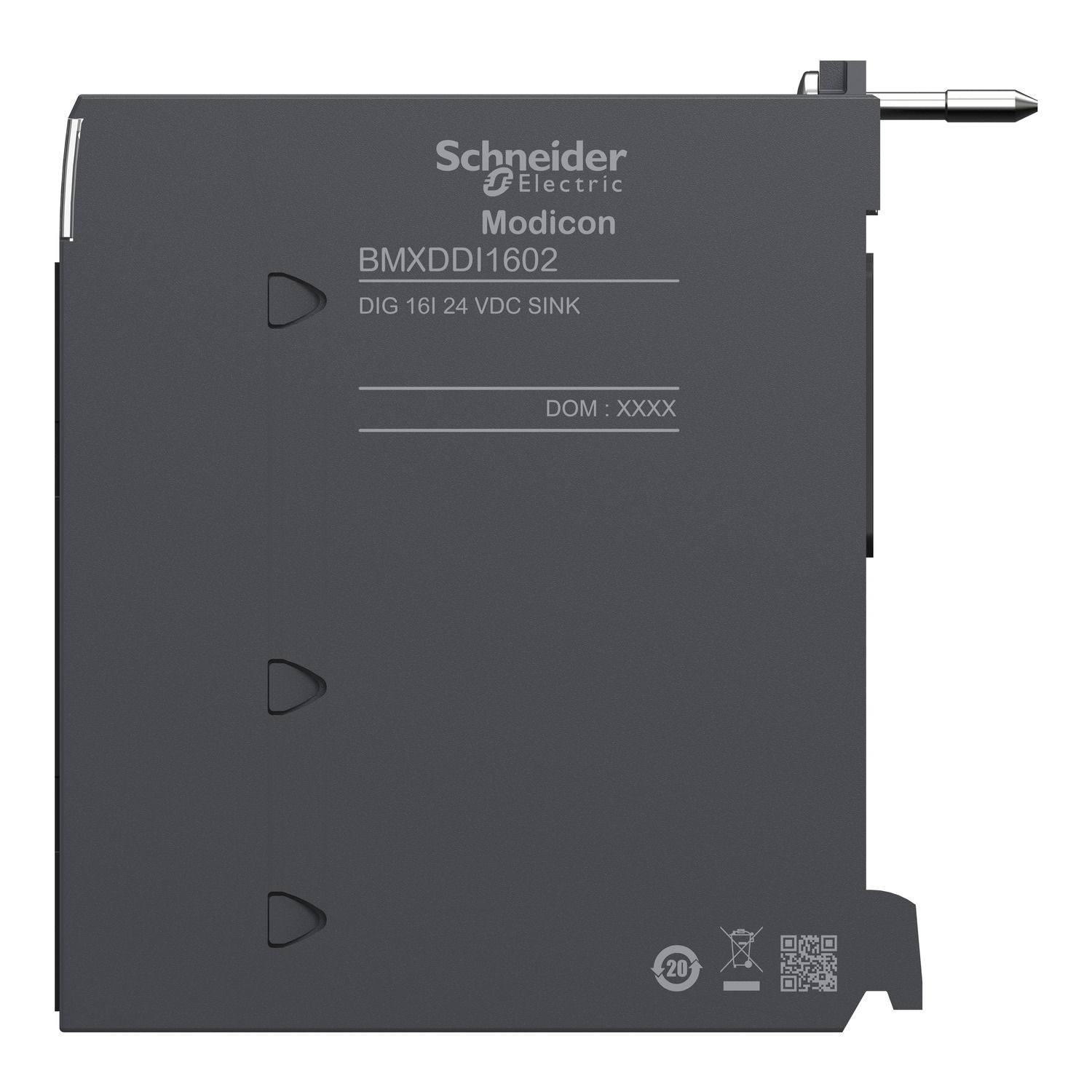

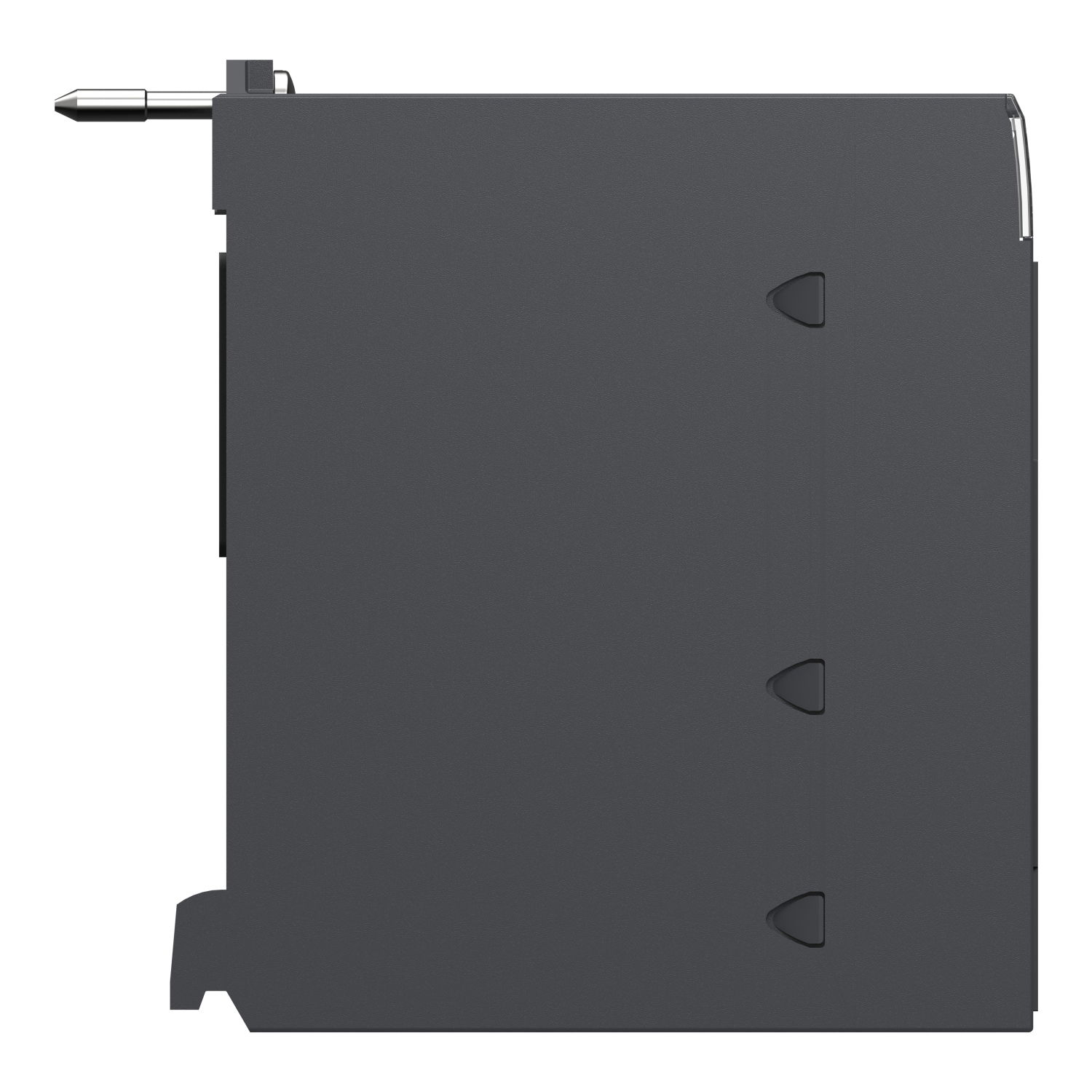

Discrete input module X80 - 16 inputs - 24 V DC positive

Discrete input module X80 - 16 inputs - 24 V DC positive by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Farnell and RS Components. It is currently in stock at all of them. Trade prices range from £140.36 to £187.17 excl. VAT. Voltimum+ members earn 22 points per unit.

This discrete input module is part of the Modicon X80 modules. It has 16 isolated inputs and it is supplied with 24V DC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Product identifiers

SKU: BMXDDI1602
EAN: 3595863910001
GTIN: 3595863910001
MPN: BMXDDI1602

Voltimum+ Loyalty Programme Loyalty points: 22

Price range: £ 140.36 - £ 187.17 Excl. VAT

Categories

PLCs Building Controls & Automation

ETIM group

Programmable logic controllers PLC

Specifications

Depth 150 mm
Width 33 mm
Height 100 mm
Redundancy no
Output current -
Power consumption 2.5 W
Supply voltage DC
Type of digital output None
Supply voltage AC 50 Hz
Number of digital inputs 16
Number of digital outputs 0
SIL according to IEC 61508 None
Permitted voltage at output
Type of electric connection Plug-in connection
Suitable for safety functions no
Type of voltage (input voltage) DC
Appendant operation agent (Ex ib) no
Explosion safety category for dust None
Performance level according to EN ISO 13849-1 None
