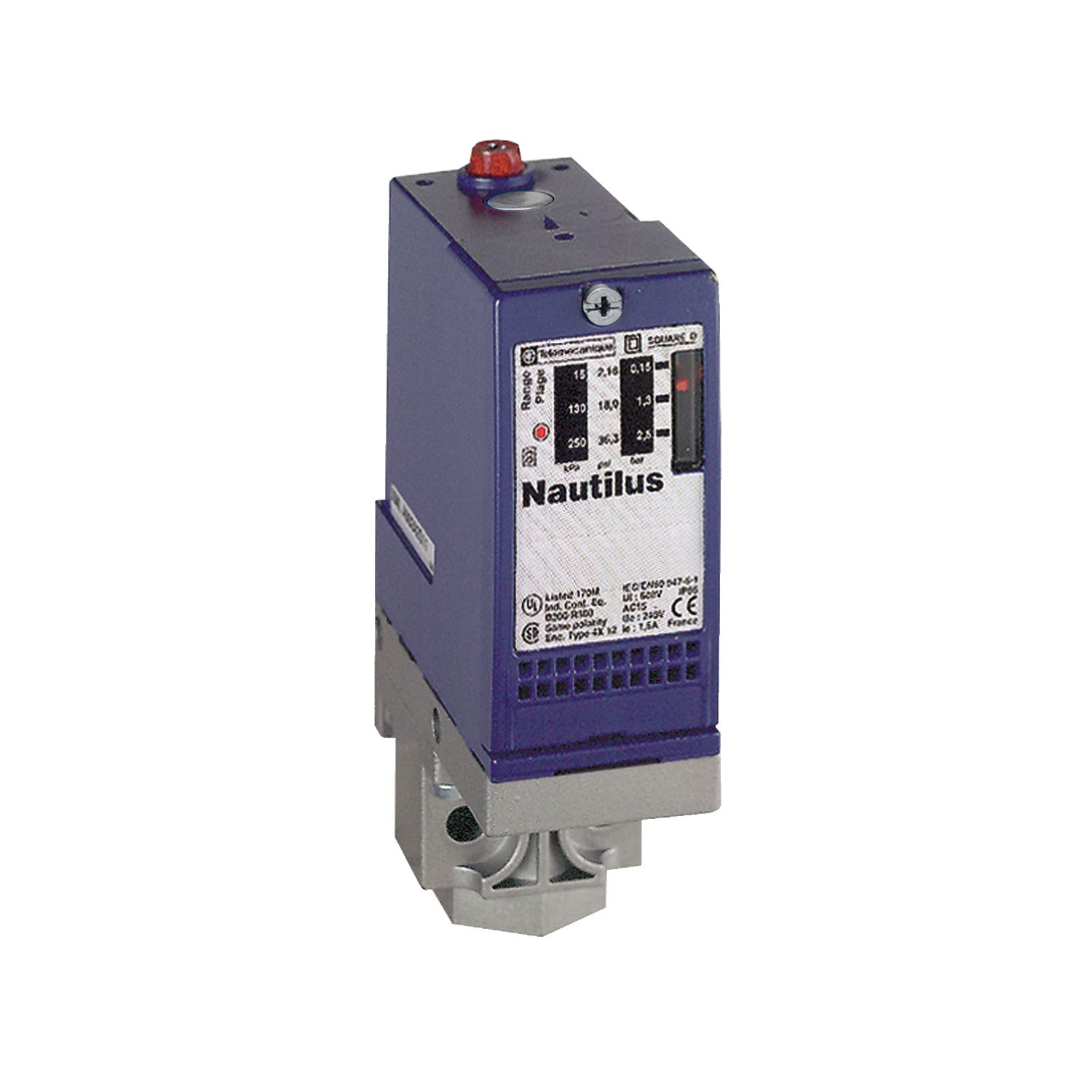

Pressure switch XMLA 4 bar - fixed scale 1 threshold - 1 C/O

Pressure switch XMLA 4 bar - fixed scale 1 threshold - 1 C/O by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Trade price £179.30 excl. VAT. Voltimum+ members earn 72 points per unit.

This XMLA electromechanical pressure switch has a fixed differential for detection of a single threshold and a zinc alloy body with a range scale window. This pressure switch is designed for detection of a single pressure threshold in air, fresh water, hydraulic oils, corrosive fluids and viscous products up to 70°C. It is fixed directly on tubage. It provides zinc alloy enclosure for robust performance. 8 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It complies with CCC, EN/IEC 60947-5-1, CSA C22.2 No.14, LROS, UL 508, EAC, BV.

Product identifiers

SKU: XMLA004A2S12
EAN: 3389110748758
GTIN: 3389110748758
MPN: XMLA004A2S12

Voltimum+ Loyalty Programme Loyalty points: 72

Price: £ 179.30 Excl. VAT

Categories

Building Controls & Automation Sensors Pressure Sensors

Specifications

Depth 75 mm
Width 35 mm
Height 113 mm
Diameter -
Connection Internal thread cylindrical BSPP-G (ISO 228-1)
End setting
Thread size 1/4 inch
With display no
Initial setting
Engaging pressure
Electronic version yes
Medium temperature
Switch off pressure
Rated voltage Ue at DC
Adjustable current range
With manual on/off switch no
Type of electric connection Screw connection
Rated voltage Ue at AC 60 Hz
Pressure-switching differential 0.35 bar
End value measuring range pressure 0 Pa
Initial value measuring range pressure 0 Pa
Rated operation current Ie at AC-3, 400 V 0 A
Number of normally closed contacts as main contact 0
Number of auxiliary contacts as normally open contact 0

Documents

Instruction sheet

XMLA... /B... /C... /D... Electromechanical vacuum switches and pressure switches for control circuits, Instruction Sheet

Open

Product data sheet

Open

Brochure

Sensor Solutions for water pumping applications

Open

Catalog

Catalogue Electromechanical sensors for pressure control XM range

Open

Declaration of Conformity (Sustainability)

XMLA004A2S12 EU RoHS Directive

Open

Declaration of conformity

XMLA/B/C/D... pressure and vacuum switches for control circuits - UK declaration of conformity

Open
