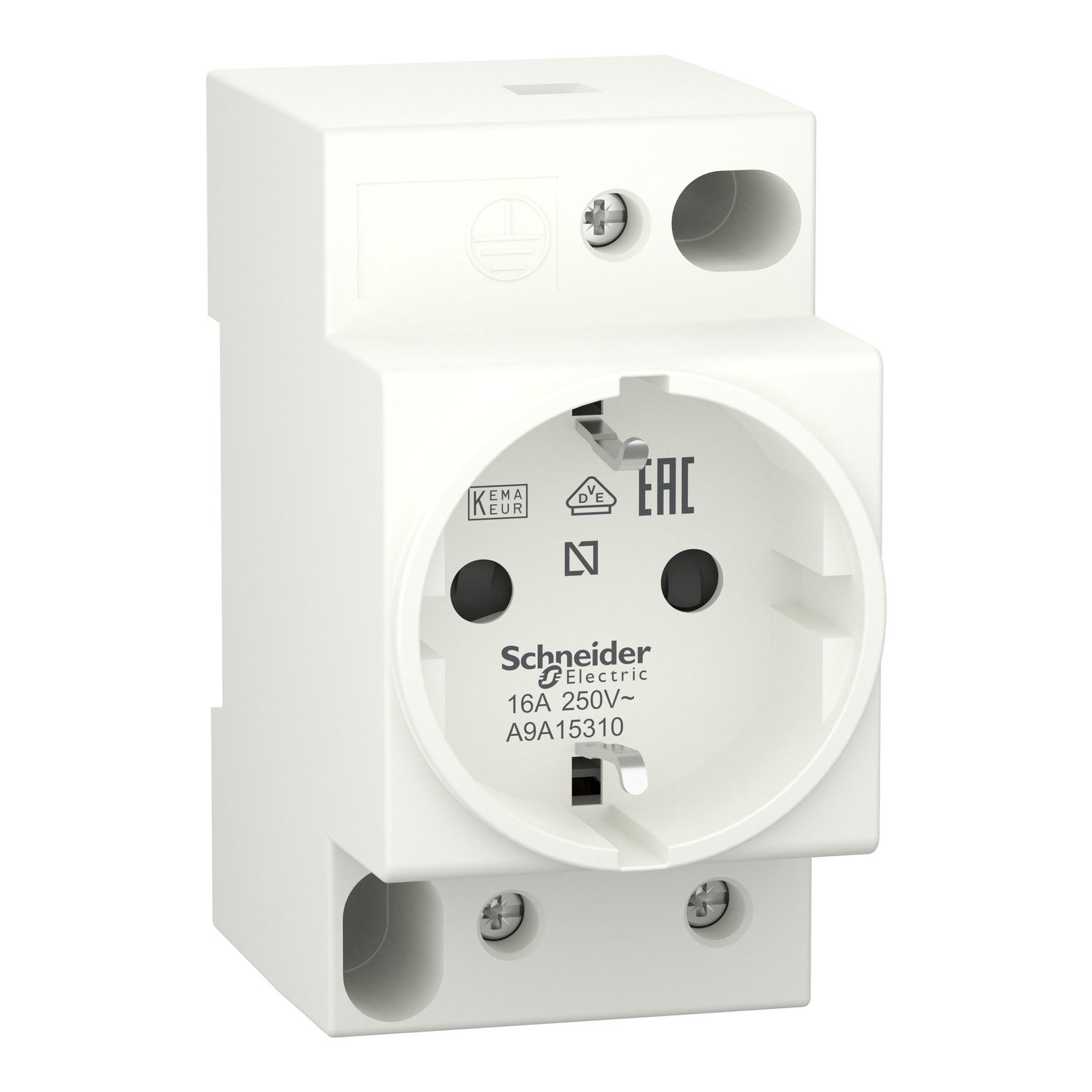

DIN socket, Acti9 iPC, 2P+E, 16A, 250VAC
Popularity
Top 10%
More about Popularity
Among the top 10% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on basket transfers.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
DIN socket, Acti9 iPC, 2P+E, 16A, 250VAC
DIN socket, Acti9 iPC, 2P+E, 16A, 250VAC by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £27.83 excl. VAT. Voltimum+ members earn 3 points per unit.
This Acti9 iPC product is a modular power socket allow low-voltage device to be connected to the electrical network. It is a standard 16A 2P+E power socket with protective cover on poles. It is compliant with KEMA VDE 0620 german standard. The tightening torque of connection is 1.2N.m for PZ2 screwdriver type. The connection allows rigid copper cables between 1 to 10mm². The connection allows flexible or with ferrule copper cables between 1 to 6mm². The width in 9mm pitches is 5. The product color is white (RAL9003). The dimensions are (W) 45mm x (H) 81mm x (D) 55mm. The weight is 100g. The degree of protection is IP20 at terminals and IP40 in enclosure. The operating temperature is -25°C to +70°C. The storage temperature is -40°C to +80°C. It complies with VDE 0620 standard, UNE_20315-1-1 and NEN 1020.
Product identifiers
SKU: A9A15310
EAN: 3606480097782
GTIN: 3606480097782
MPN: A9A15310
Loyalty points:
3
Price: £ 27.83 Excl. VAT
Specifications
| Model | Other |
| Voltage type | AC |
| Rated current | 16 A |
| Rated voltage | 250 V |
| Built-in depth | 63 mm |
| With hinged lid | no |
| With control lamp | no |
| Protective contact | Earthing clips |
