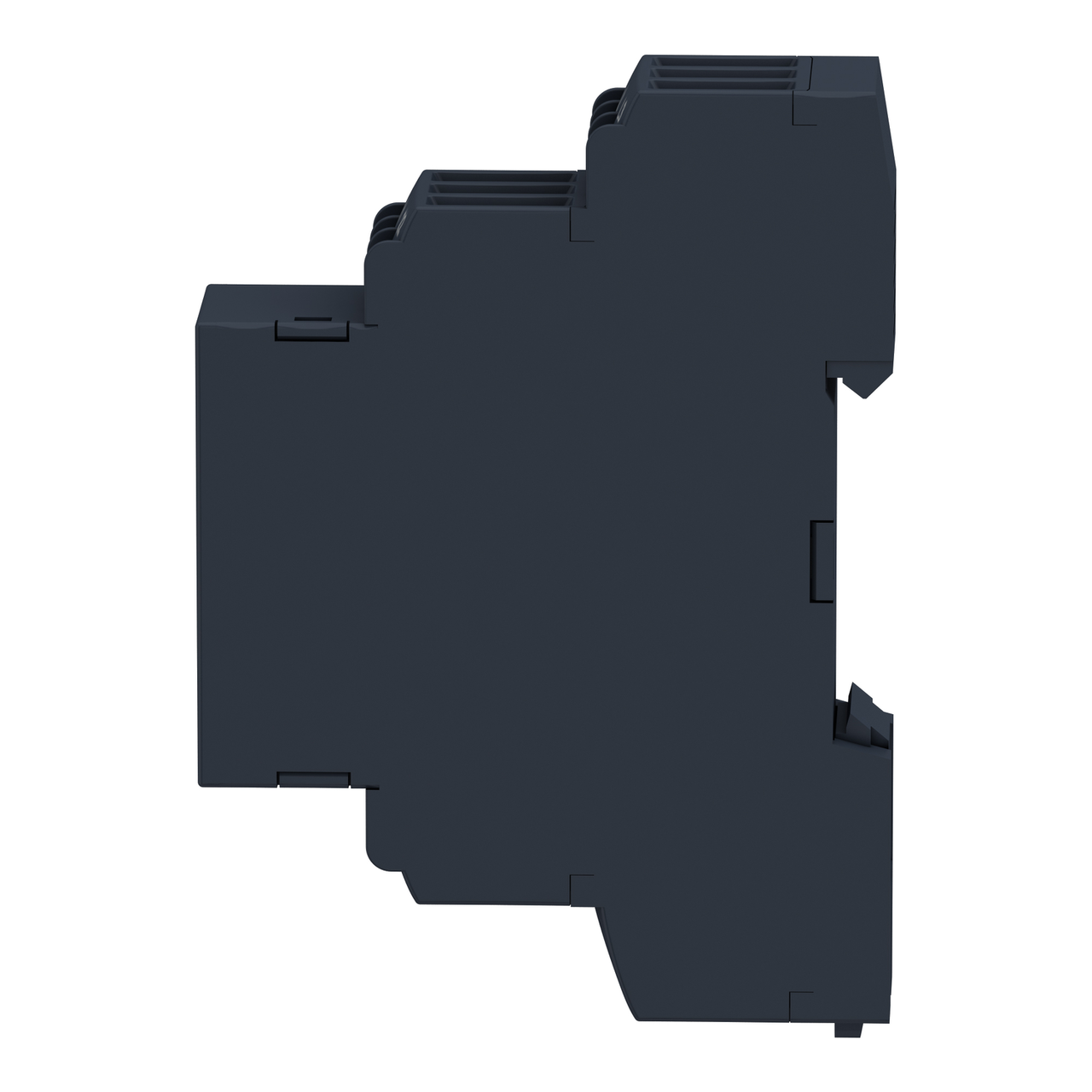

Modular 3-phase supply control relay, 5 A, 2 CO, 208...440 V AC – Image 7 of 9

Modular 3-phase supply control relay, 5 A, 2 CO, 208...440 V AC – Image 8 of 9

1 / 9

Popularity Top 30%

Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

Modular 3-phase supply control relay, 5 A, 2 CO, 208...440 V AC

Name: Modular 3-phase supply control relay, 5 A, 2 CO, 208...440 V AC
Brand: Schneider Electric
SKU: RM17TG20
Availability: InStock

Modular 3-phase supply control relay, 5 A, 2 CO, 208...440 V AC by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 5 of them. Trade prices range from £64.39 to £103.35 excl. VAT. Voltimum+ members earn 14 points per unit.

This Harmony RM17-TG relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. The product monitors its own power supply, when the power supply is abnormal, the output relay de-energizes. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Product identifiers

SKU: RM17TG20

EAN: 3389119405072

GTIN: 3389119405072

MPN: RM17TG20

Loyalty points: 14

Price range: £ 64.39 - £ 103.35 Excl. VAT

Specifications

Depth	72 mm
Width	17.5 mm
Height	90 mm
Supply voltage DC
Operating voltage DC
Rated switch current	-
With detachable clamps	no
Phase failure detection	yes
Supply voltage AC 50 Hz
Supply voltage AC 60 Hz
Voltage measuring range
Phase sequence monitoring	yes
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Phase imbalance monitoring	no
Type of electric connection	Screw connection
Max. permitted off-delay time	-
Voltage type (supply voltage)	-
External power supply required	-
Min. adjustable off-delay time	-
Function over voltage detection	no
Function under voltage detection	no
Voltage type (operating voltage)	-
Max. permitted delay-on energization time	-
Number of contacts as change-over contact	2
Min. adjustable delay-on energization time	-
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	0
