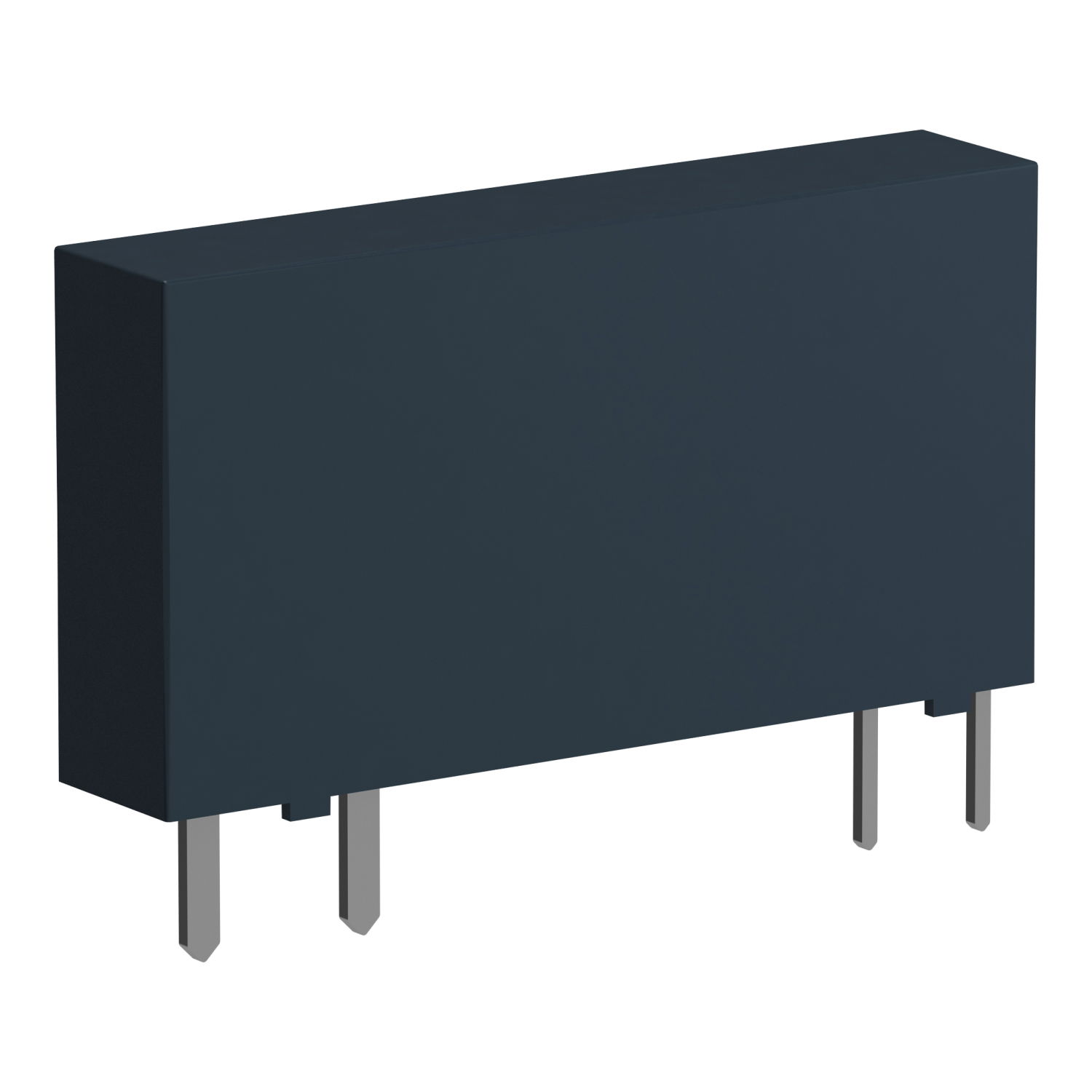

Solid state relay, 0.1 A, DC switching, input 3…12 V DC, output 1…48 V DC – Image 2 of 9

Solid state relay, 0.1 A, DC switching, input 3…12 V DC, output 1…48 V DC – Image 3 of 9

Solid state relay, 0.1 A, DC switching, input 3…12 V DC, output 1…48 V DC – Image 4 of 9

Solid state relay, 0.1 A, DC switching, input 3…12 V DC, output 1…48 V DC – Image 5 of 9

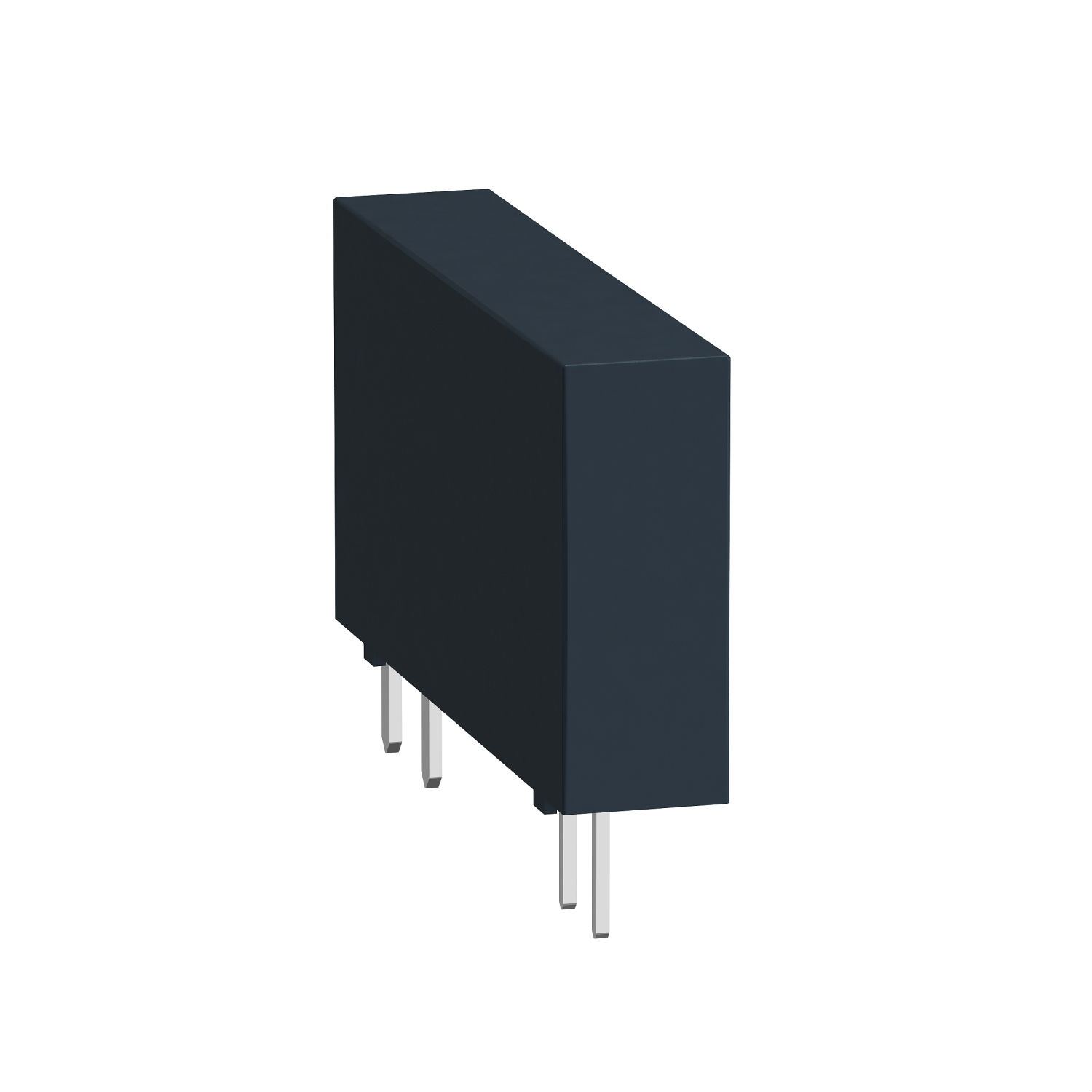

Solid state relay, 0.1 A, DC switching, input 3…12 V DC, output 1…48 V DC – Image 6 of 9

Solid state relay, 0.1 A, DC switching, input 3…12 V DC, output 1…48 V DC – Image 7 of 9

Solid state relay, 0.1 A, DC switching, input 3…12 V DC, output 1…48 V DC – Image 8 of 9

1 / 9

Solid state relay, 0.1 A, DC switching, input 3…12 V DC, output 1…48 V DC

Name: Solid state relay, 0.1 A, DC switching, input 3…12 V DC, output 1…48 V DC
Brand: Schneider Electric
SKU: SSL1D101JD
Availability: InStock

Solid state relay, 0.1 A, DC switching, input 3…12 V DC, output 1…48 V DC by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 2 of them. Trade prices range from £12.44 to £12.63 excl. VAT. Voltimum+ members earn 2 points per unit.

This Harmony SSL slim interfacing solid state plug-in relay is rated 0.1A, is controlled with a 3V to 12V DC input, has a rated load voltage of 1V to 48V DC with DC switching. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0

Product identifiers

SKU: SSL1D101JD

EAN: 3606480579677

GTIN: 3606480579677

MPN: SSL1D101JD

Loyalty points: 2

Price range: £ 12.44 - £ 12.63 Excl. VAT

Specifications

Depth	15 mm
Model	-
Width	5 mm
Height	28 mm
Modular version	yes
Number of phases	1
With LED indication	-
Complete with socket	-
Operating voltage DC
With detachable clamps	-
Type of switch function	-
Degree of protection (IP)	IP00
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Switching at zero-crossing	no
Voltage type for actuating	DC
Type of electric connection	-
Rated control supply voltage DC
Voltage type (operating voltage)	-
Rated operation current Ie at AC-1	0.1 A
Rated operation current Ie at AC-3	0.1 A
Rated operation current Ie at AC-51	0.1 A
Rated operation current Ie at AC-53a	0.1 A
Rated operation current Ie at AC-53b	0.1 A
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Relay technology category according to IEC 61810-7	-
