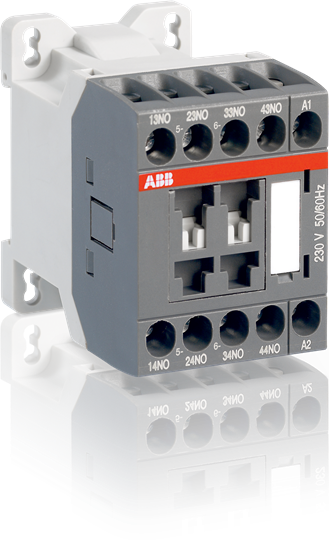

NS22E-26 230V50/60HZ Contactor Relay

Name: NS22E-26 230V50/60HZ Contactor Relay
Brand: ABB
SKU: 1SBH101001R2622
Price: 45.26 GBP
Availability: OutOfStock

NS... contactor relays are used for switching auxiliary circuits and control circuits. - Poles and auxiliary contacts blocks: 4-pole contactor relays, front-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 including the "Mechanically Linked" symbol on the contactor relay side) - Control circuit: AC operated with laminated magnet circuit - Accessories: a wide range of accessories is available.

Product identifiers

SKU: 1SBH101001R2622

EAN: 3471523000261

GTIN: 3471523000261

MPN: NS22E-26

Loyalty points: 5

Price: £ 45.26 Excl. VAT

Specifications

Depth	72.5
Width	45
Height	68
Interface	no
Mounting method	DIN-rail/screw
With LED indication	no
Operating voltage DC
Rated switch current	4
Rated operation current	4
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Voltage type for actuating	AC
Suitable for manual operation	no
Rated control supply voltage DC
Voltage type (operating voltage)	AC/DC
Connection type auxiliary circuit	Screw connection
Rated operation current Ie, 400 V	3
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally open contact	2
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact, leading	0
Number of auxiliary contacts as normally closed contact, delayed switching	0
