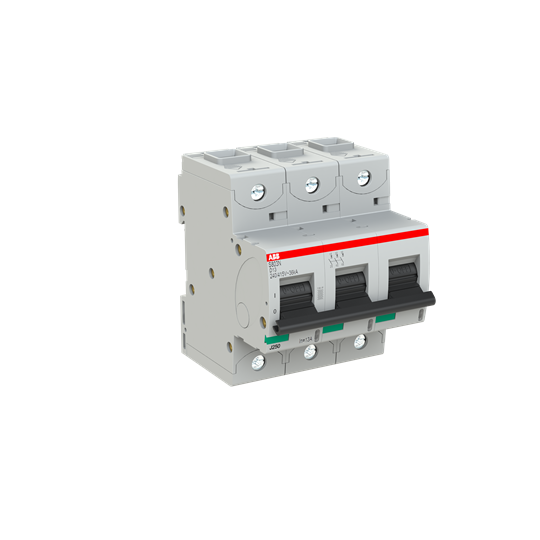

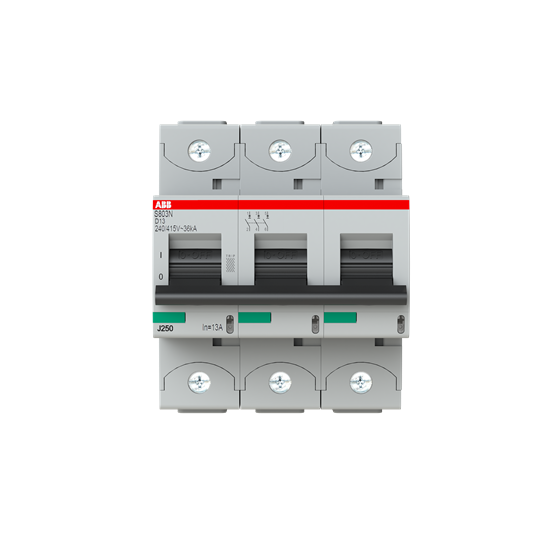

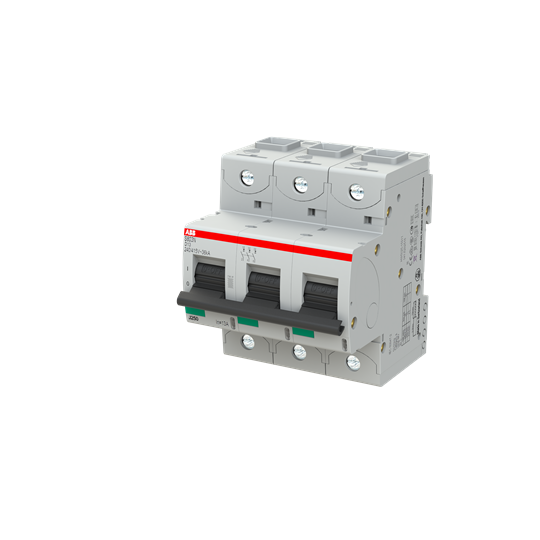

S803N-D13 High Performance MCB
1 / 3
S803N-D13 High Performance MCB
S803N-D13 High Performance MCB by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Trade price £242.82 excl. VAT. Voltimum+ members earn 107 points per unit.
The S803N-D13 is a 3-pole High Performance Circuit breaker with D-Characteristic, with cage terminal and a rated current of 6 A. It is a current limiting device with a maximum breaking capacity of 36kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803N-D13 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803N-D13 more comfortable. Due to the fast arc extinction of S803N-D13 your application will be secured.
Product identifiers
SKU: 2CCS893001R0131
EAN: 7612271205010
GTIN: 7612271205010
MPN: S803N-D13
Loyalty points:
107
Price: £ 242.82 Excl. VAT
Categories
Specifications
| Frequency | |
| Power loss | 6 |
| Voltage type | AC/DC |
| Rated current | 13 |
| Rated voltage | 400 |
| Built-in depth | 82.5 |
| Explosion-proof | no |
| Pollution degree | 3 |
Documents
Deeplink product page
Deeplink REACH
9AKK108468A3036 EU REACH Declaration S800 range.pdf
Instructions for use
Instruction Manual S800 - Rev. N.pdf
Product data sheet
Declaration RoHS
2CCC005083D0202 EU Declaration S800S,N,C,B.pdf
Declaration EPD (Environmental Product Declaration)
