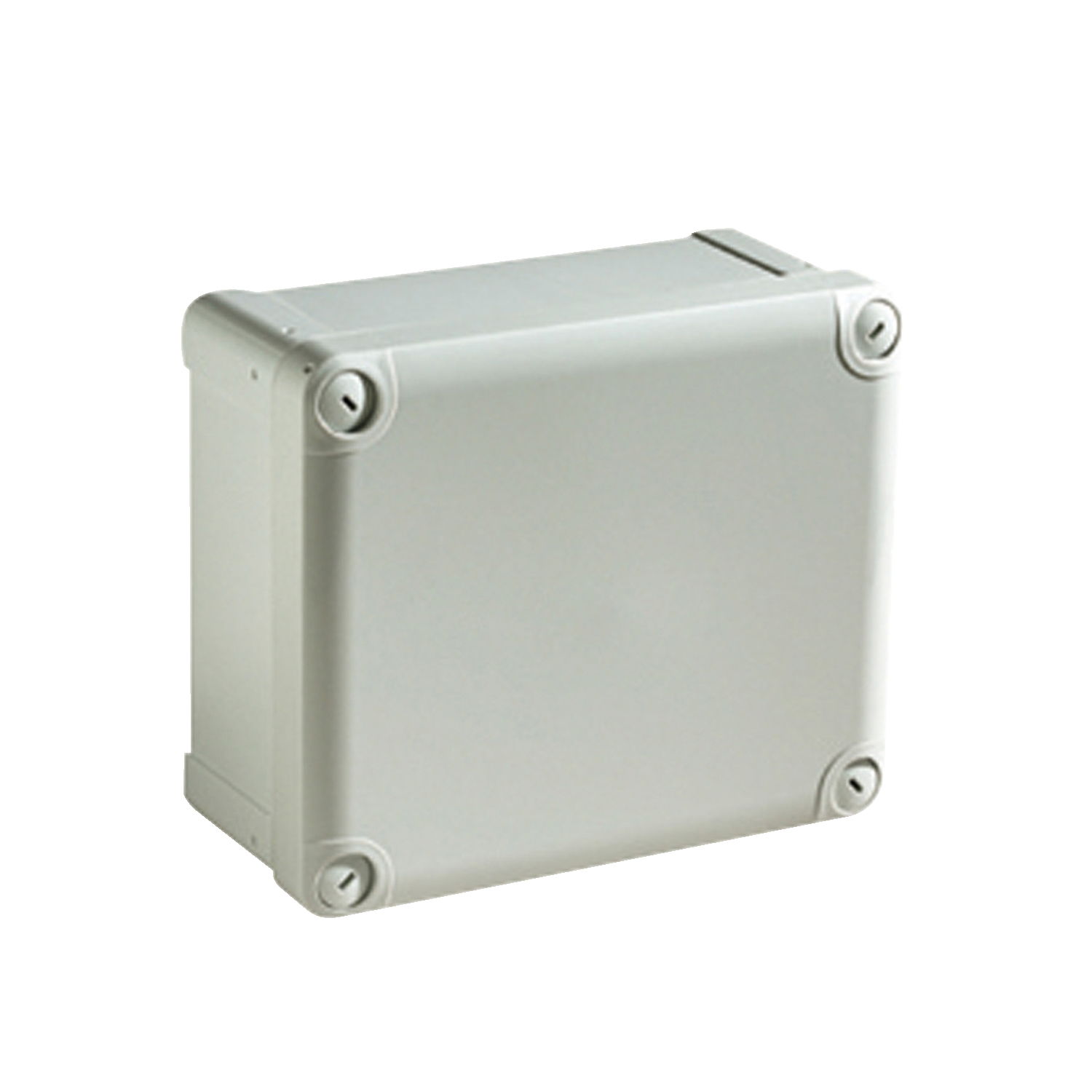

ABS box IP66 IK07 RAL7035 Int.H225W175D100 Ext.H241W194D105 Opaque cover H20
ABS industrial box for PanelSeT TBS. Multi purpose. 241 x 194 x 107 mm. Wall mounted on enclosure. One piece moulded. Lock by Captive screw flat outside sealed area. Cover fixing by 4 plastic screws. Protection IP 66, IK07, electrical insulation class 2.
Product identifiers
SKU: NSYTBS241910H
EAN: 3606480165344
GTIN: 3606480165344
MPN: NSYTBS241910H
Loyalty points: 10
Price range: £ 19.65 - £ 24.81 Excl. VAT
Categories
Features
|
Depth
|
107 mm
|
|
Width
|
194 mm
|
|
Colour
|
Grey
|
|
Height
|
241 mm
|
|
With lock
|
FALSE
|
|
RAL-number
|
7035
|
|
Cover model
|
Closed
|
|
Inner depth
|
100 mm
|
|
Type of door
|
None
|
|
Built-in depth
|
-
|
|
Number of rows
|
0
|
|
Impact strength
|
IK07
|
|
Mounting method
|
Surface mounted
|
|
Housing material
|
Plastic
|
|
Type of covering
|
Cover
|
|
Circuit integrity
|
None
|
|
Number of modules
|
0
|
|
Extension possible
|
FALSE
|
|
Surface protection
|
Untreated
|
|
With mounting plate
|
FALSE
|
|
Nominal current (In)
|
-
|
|
Transparent cover/door
|
FALSE
|
|
Number of conduit inlets
|
2
|
|
Suitable for outdoor use
|
TRUE
|
|
Degree of protection (IP)
|
IP66
|
|
Degree of protection (NEMA)
|
4
|
|
Cover with overpressure release
|
FALSE
|
|
Material plate thickness cabinet
|
12.5 mm
|
|
Suitable for lightning protection
|
TRUE
|
|
Material plate thickness door/cover
|
12.5 mm
|
|
Width in number of modular spacings
|
-
|
|
Number of openings for flange plates
|
0
|
|
Protection class according to IEC 61140
|
II
|
