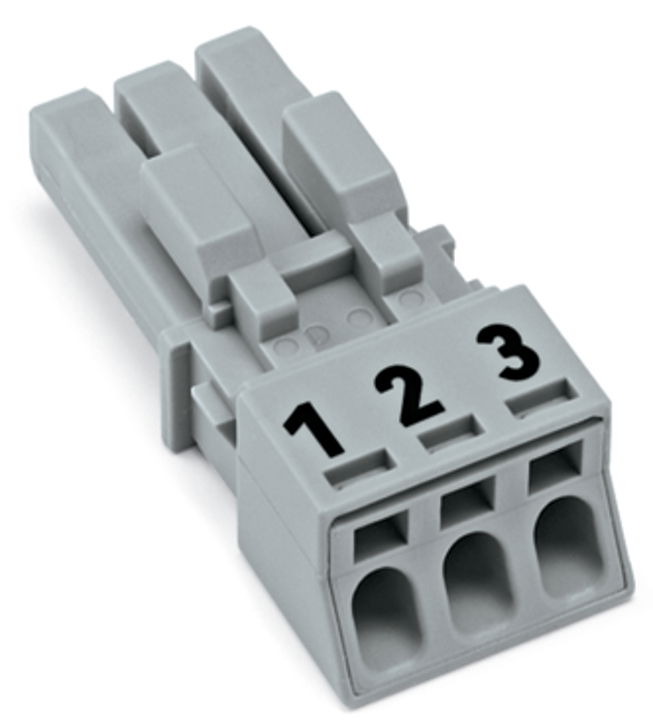

Socket 3-pole Cod. B gray

Name: Socket 3-pole Cod. B gray
Brand: Wago
SKU: 890-243
Availability: InStock

Socket; 3-pole; Cod. B; 1,50 mm²; gray

Product identifiers

SKU: 890-243

EAN: 4055143499910

GTIN: 4055143499910

MPN: 890-243

Price: £ 4.22 Excl. VAT

Specifications

Model	Bus
Width	15
Height	11.7
Length	34.1
Fire load	0.01944
Halogen free	yes
Rated current	16
Rated voltage	250
Cable diameter
Connection type	Spring clamp connection
Number of poles	3
Type of locking	Separate
Contact material	CuSn
Housing material	Polyamide (PA)
Pollution degree	3
Mechanical coding	yes
Pole codification	1, 2, 3
With strain relief	no
Rated surge voltage	4
Continuity resistance	1
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	Grey
Number of connections per pole	1
RAL-number coding/contact insert	7042
Connection cross section (solid-core)	0.25 - 1.5
Connection cross section (fine-strand)	0.25 - 1.5
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
