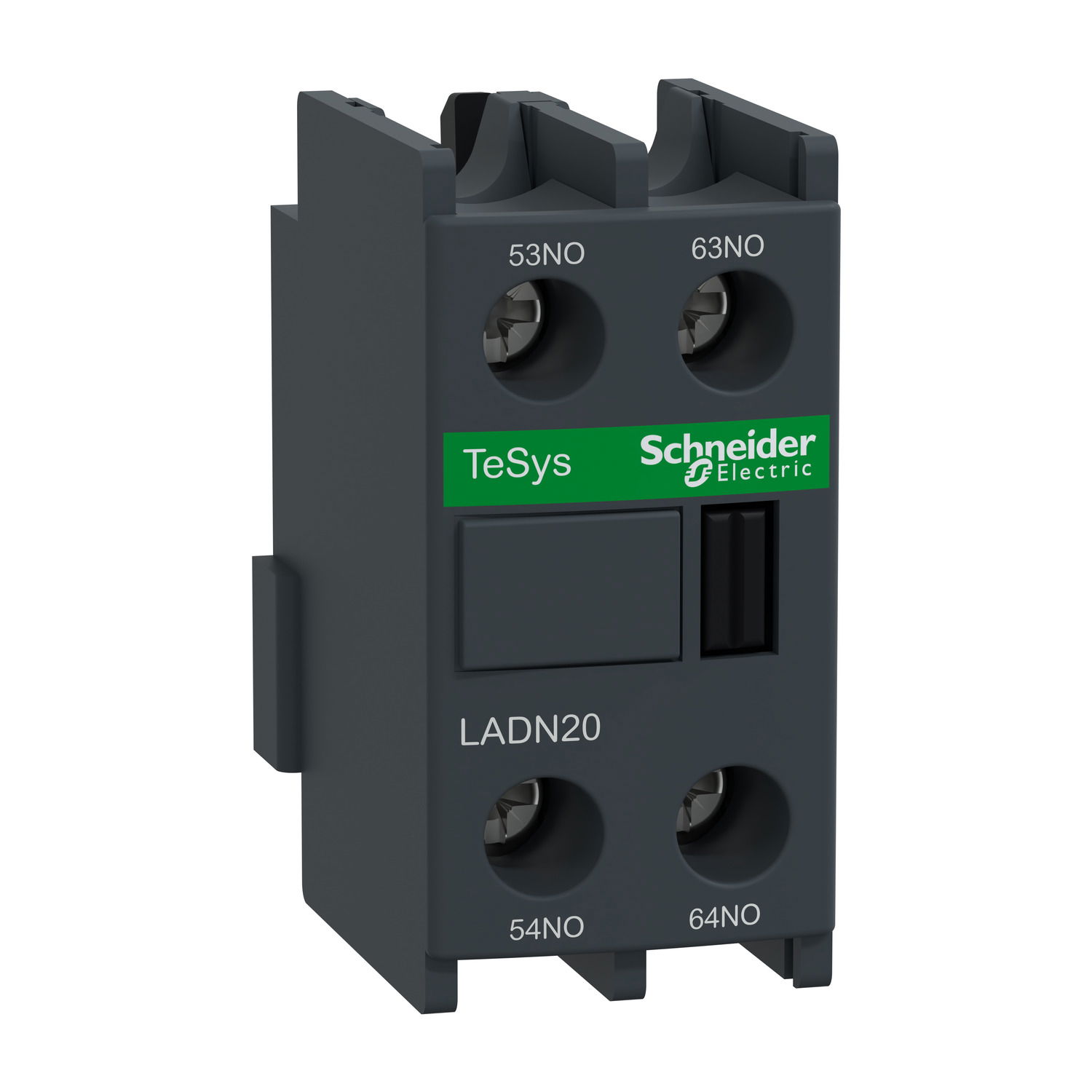

Auxiliary contact block, TeSys D, 2NO, front mounting, screw clamp terminals
TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 2NO contacts rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Sustainability compliant.
Product identifiers
SKU: LADN20
EAN: 3389110383881
GTIN: 3389110383881
MPN: LADN20
Loyalty points:
2
Price range: £ 7.63 - £ 12.25 Excl. VAT
ETIM Group
Videos
Promotional video
Specifications
| Model | Clip-on |
| Lamp holder | - |
| Mounting method | Front fastening |
| Type of electric connection | Screw connection |
| Number of fault-signal switches | 0 |
| Number of contacts as change-over contact | 0 |
| Rated operation current Ie at AC-15, 230 V | 10 A |
| Number of contacts as normally open contact | 2 |
